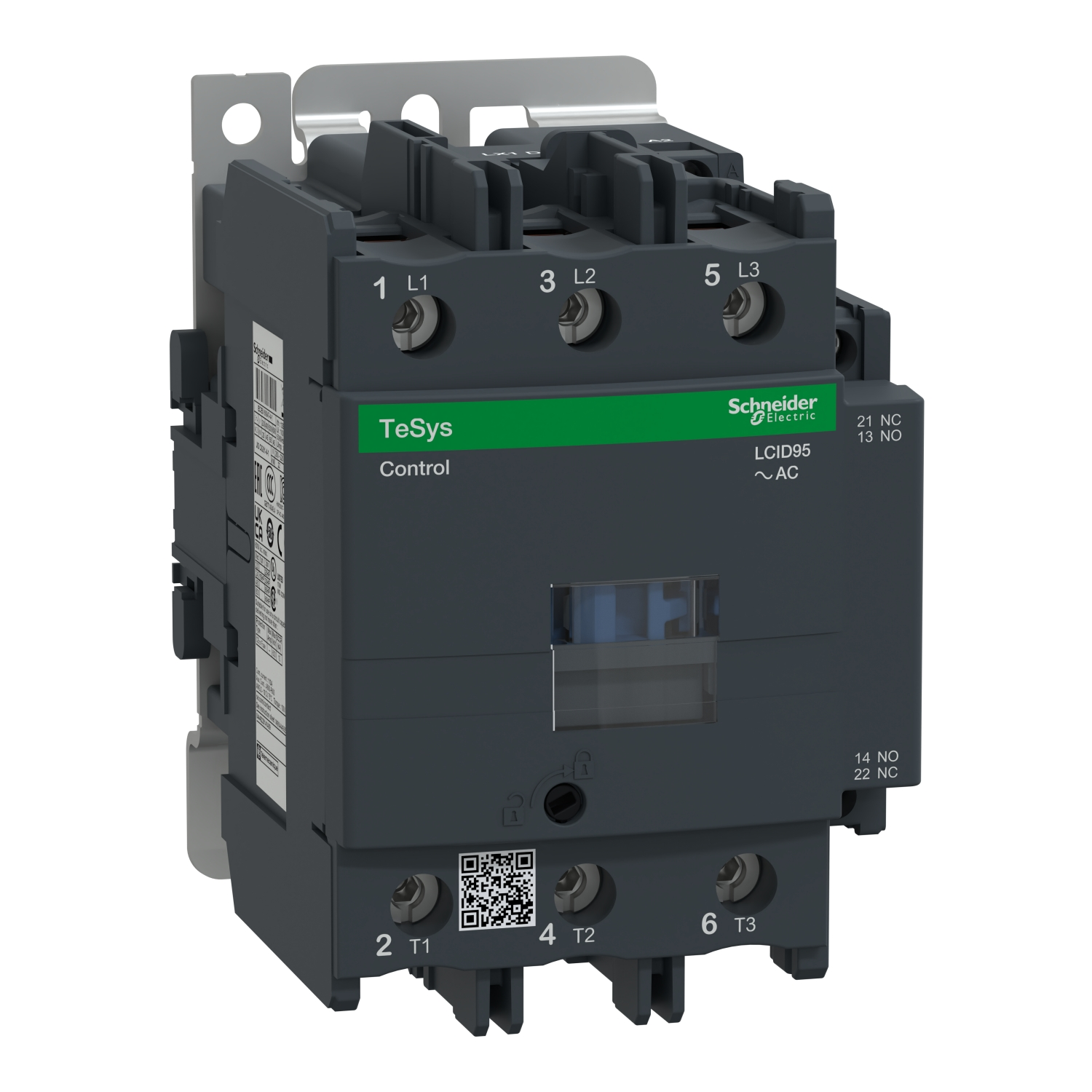

Schneider Electric LC1D95 TeSys Deca Contactor, 3P, 95A AC-3 45kW, 1NO+1NC Aux
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D95 is a high-capacity 3-pole contactor from the premium TeSys Deca series, engineered for the most demanding industrial motor control and power switching applications. Capable of handling motors up to 45kW at 400V, this robust unit features high-performance power terminals and integrated 1NO+1NC auxiliary contacts, providing an ultra-reliable solution for heavy-duty HVAC, mining, and industrial manufacturing systems.
| Product ID (MPN) | LC1D95 |
| Rated Operational Current (Ie) | 95 A (AC-3, <= 440 V) / 125 A (AC-1, <= 440 V) |
| Motor Power (kW) | 45 kW at 380/400 V AC 50/60 Hz |
| Pole Configuration | 3P (3 NO) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage Options | AC 24V, 36V, 110V, 220V, 380V (50/60 Hz) |
| Rated Insulation Voltage (Ui) | 1000 V conforming to IEC 60947-4-1 |
| Mounting Base | 35 mm / 75 mm DIN Rail or Plate Mounting |
| Tightening Torque | 12 N.m for Power Circuit |
