Schneider Electric LC1N0910 Contactors, B5N/CC5N/F5N/M5N/Q5N, 9A 3P, 1NO Aux
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

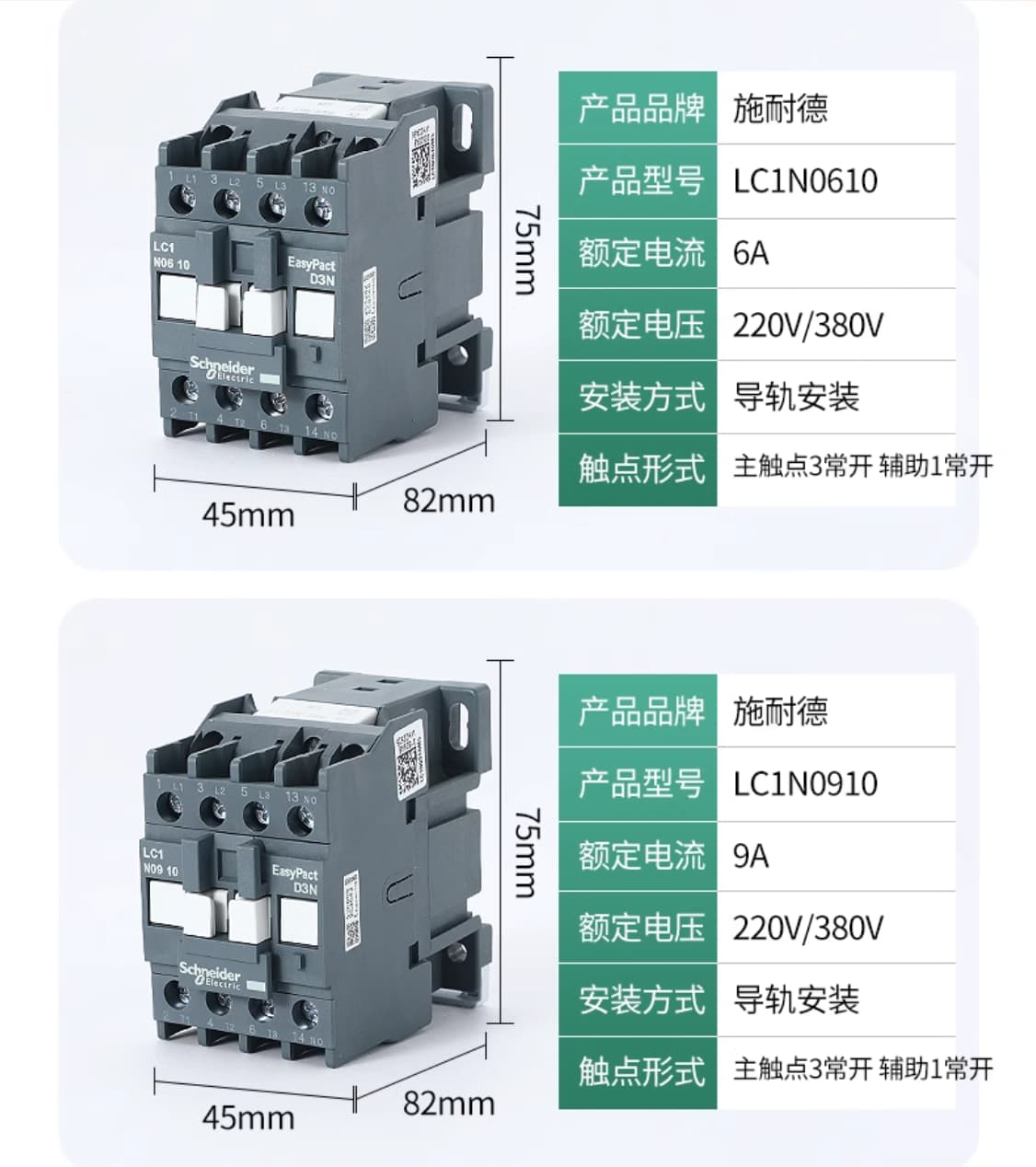

The Schneider Electric LC1N0910 contactor family includes LC1N0910B5N, LC1N0910CC5N, LC1N0910F5N, LC1N0910M5N, and LC1N0910Q5N. These Easy TeSys Control contactors have three normally open main poles, a 9 A AC-3 rating at up to 440 V AC, and one normally open auxiliary contact. The complete MPN identifies the required 50 Hz AC coil voltage.
| 24 V AC Coil Model | LC1N0910B5N, 50 Hz |
| 36 V AC Coil Model | LC1N0910CC5N, 50 Hz |
| 110 V AC Coil Model | LC1N0910F5N, 50 Hz |
| 220 V AC Coil Model | LC1N0910M5N, 50 Hz |
| 380 V AC Coil Model | LC1N0910Q5N, 50 Hz |
| Product Range | Easy TeSys Control |
| Rated Operational Current | 9 A at ≤440 V AC, AC-3 |
| Main Pole Configuration | 3P, 3 NO |
| Auxiliary Contact | 1 NO |
| Motor Power | 4 kW at 380–400 V AC, 50/60 Hz |
| Rated Operational Voltage | Power circuit: ≤690 V AC, 50/60 Hz |
| Mounting Support | DIN rail or plate |
These contactors are specified for motor control and resistive-load switching. Confirm the complete MPN, coil voltage, rated current, main pole configuration, and auxiliary contact arrangement against the original control circuit before replacement.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric LC1N0910 contactors, helping procurement teams compare the five coil-voltage variants and prepare an accurately identified RFQ.
Submit LC1N0910B5N, LC1N0910CC5N, LC1N0910F5N, LC1N0910M5N, or LC1N0910Q5N, together with the required quantity and application requirements, for procurement review. Most qualified RFQs receive a response or quote within 12 hours.
