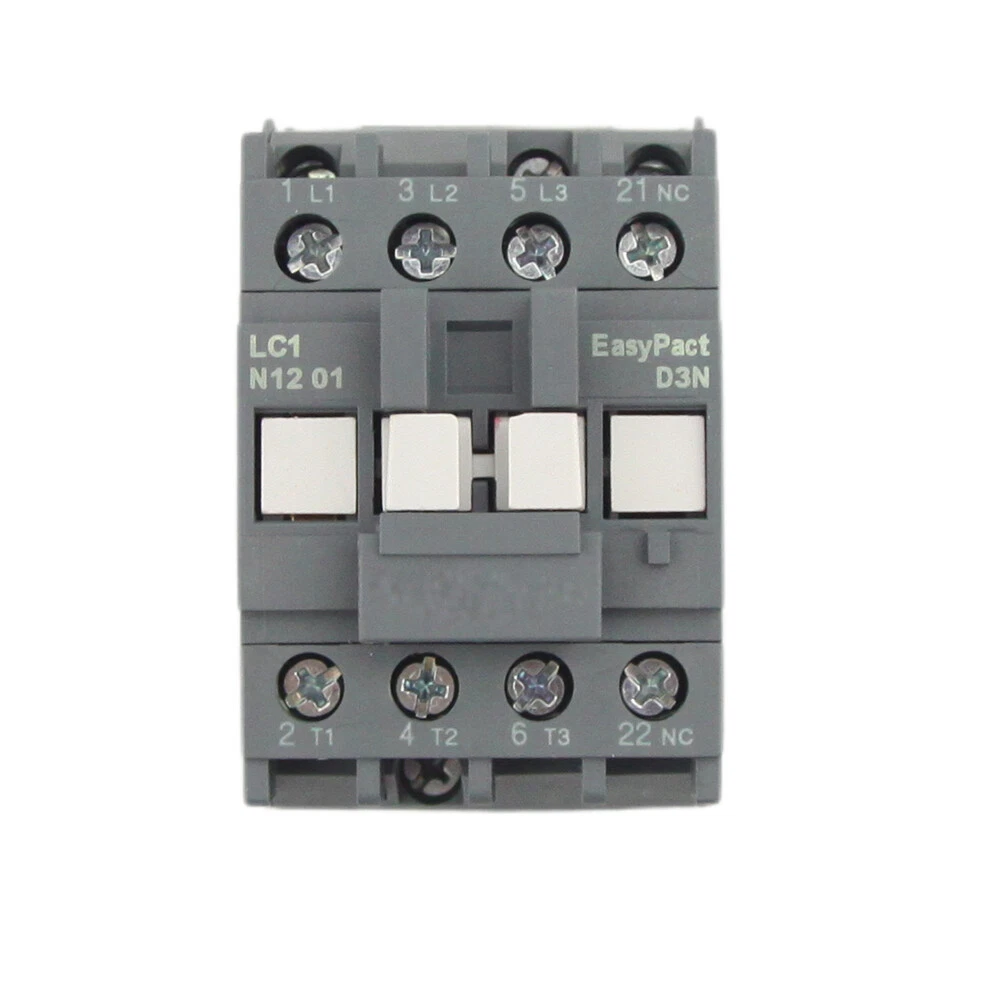

Schneider Electric LC1N1201 Contactors, B5N/CC5N/F5N/M5N/Q5N, 12A 3P 1NC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1N1201 contactor family includes LC1N1201B5N, LC1N1201CC5N, LC1N1201F5N, LC1N1201M5N, and LC1N1201Q5N. These EasyPact D3N contactors have three normally open main poles, a 12 A AC-3 rating at 380/400 V AC, a 5.5 kW motor rating at 380/400 V AC, and one normally closed auxiliary contact. The complete model number identifies the required AC coil voltage.
| 24 V AC Coil Model | LC1N1201B5N, 50 Hz |
| 36 V AC Coil Model | LC1N1201CC5N, 50 Hz |
| 110 V AC Coil Model | LC1N1201F5N, 50 Hz |
| 220 V AC Coil Model | LC1N1201M5N, 50 Hz |
| 380 V AC Coil Model | LC1N1201Q5N, 50 Hz |
| Product Range | EasyPact D3N Contactors |
| Rated Operational Current | 12 A at 380/400 V AC, AC-3 |
| Motor Power | 5.5 kW at 380/400 V AC, 50/60 Hz |
| Main Pole Configuration | 3P, 3 NO |
| Auxiliary Contact | 1 NC |
| Frame Width | 45 mm |
| Mounting | 35 mm DIN rail or plate mounting |
These contactors are used in motor-control circuits, electrical control panels, industrial machinery, automation systems, HVAC equipment, and power-switching installations. Confirm the complete model number, coil voltage, current rating, contact arrangement, and mounting requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric LC1N1201 contactors, helping procurement teams compare coil-voltage variants and prepare accurately identified RFQs.
Submit LC1N1201B5N, LC1N1201CC5N, LC1N1201F5N, LC1N1201M5N, or LC1N1201Q5N, together with the required quantity and application requirements, for procurement review. Most qualified RFQs receive a response or quote within 12 hours.
