Schneider Electric LC1N1210 Contactors, B5N/CC5N/F5N/M5N/Q5N, 12A 3P 1NO
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

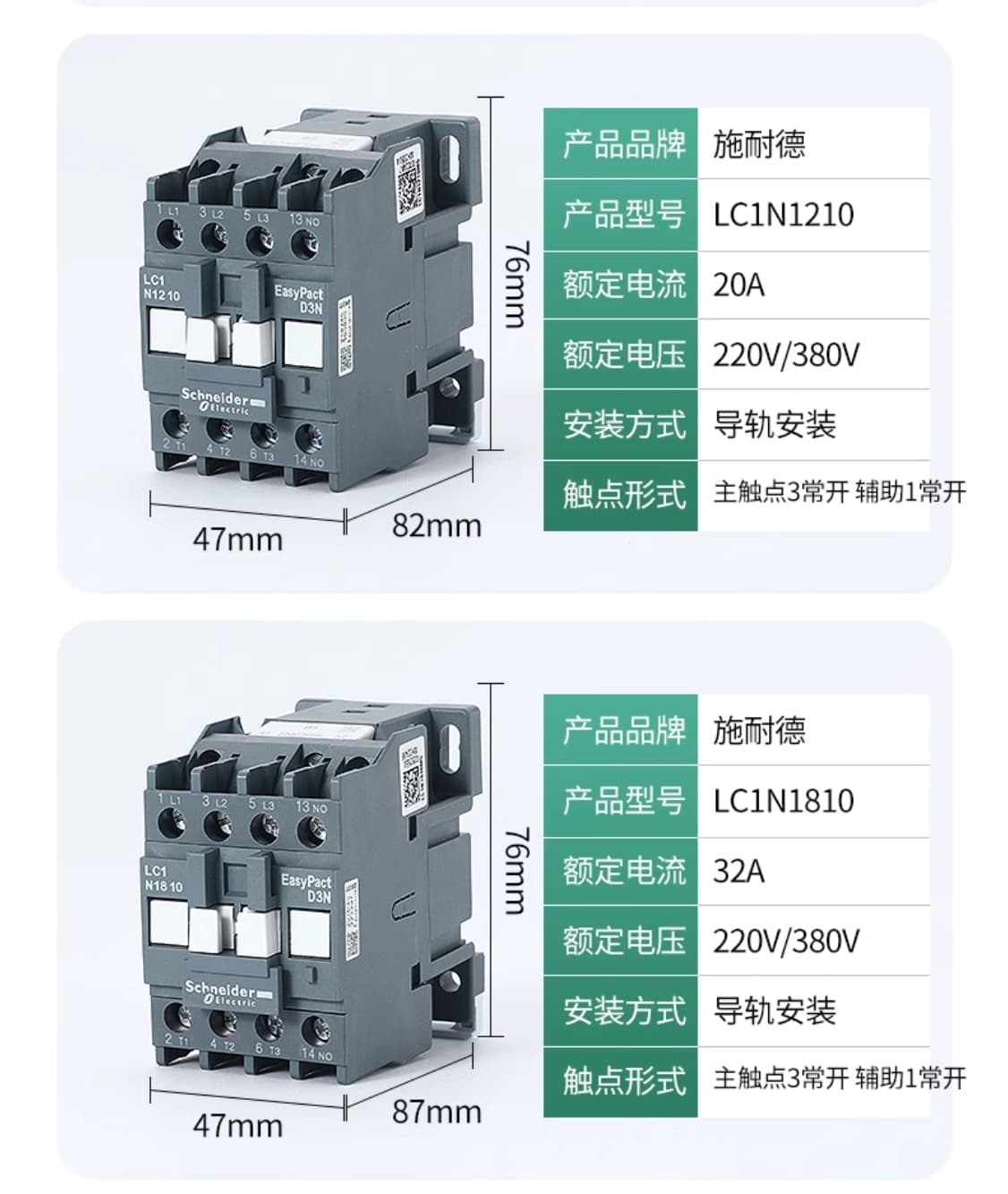

The Schneider Electric LC1N1210 contactor family includes LC1N1210B5N, LC1N1210CC5N, LC1N1210F5N, LC1N1210M5N, and LC1N1210Q5N. These EasyPact D3N contactors have three normally open main poles, a 12 A AC-3 rating at up to 440 V AC, and one normally open auxiliary contact. The complete model number identifies the required 50 Hz AC coil voltage.
| 24 V AC Coil Model | LC1N1210B5N, 50 Hz |
| 36 V AC Coil Model | LC1N1210CC5N, 50 Hz |
| 110 V AC Coil Model | LC1N1210F5N, 50 Hz |
| 220 V AC Coil Model | LC1N1210M5N, 50 Hz |
| 380 V AC Coil Model | LC1N1210Q5N, 50 Hz |
| Product Range | EasyPact D3N |
| Rated Operational Current | 12 A at up to 440 V AC, AC-3 |
| Main Pole Configuration | 3P, 3 NO |
| Auxiliary Contact | 1 NO |
| Motor Power | 5.5 kW at 380–400 V AC, 50/60 Hz |
| Rated Operational Voltage | Power circuit: up to 690 V AC, 50/60 Hz |
| Mounting Support | DIN rail or plate |
| Dimensions | 74 × 45 × 80 mm |
These contactors are specified for motor control and resistive-load switching. Confirm the complete model number, coil voltage, rated current, pole configuration, and auxiliary contact arrangement against the original control circuit before replacement.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric LC1N1210 contactors, helping procurement teams compare the five coil-voltage variants and prepare an accurately identified RFQ.
Submit LC1N1210B5N, LC1N1210CC5N, LC1N1210F5N, LC1N1210M5N, or LC1N1210Q5N, together with the required quantity and application requirements, for procurement review. Most qualified RFQs receive a response or quote within 12 hours.
