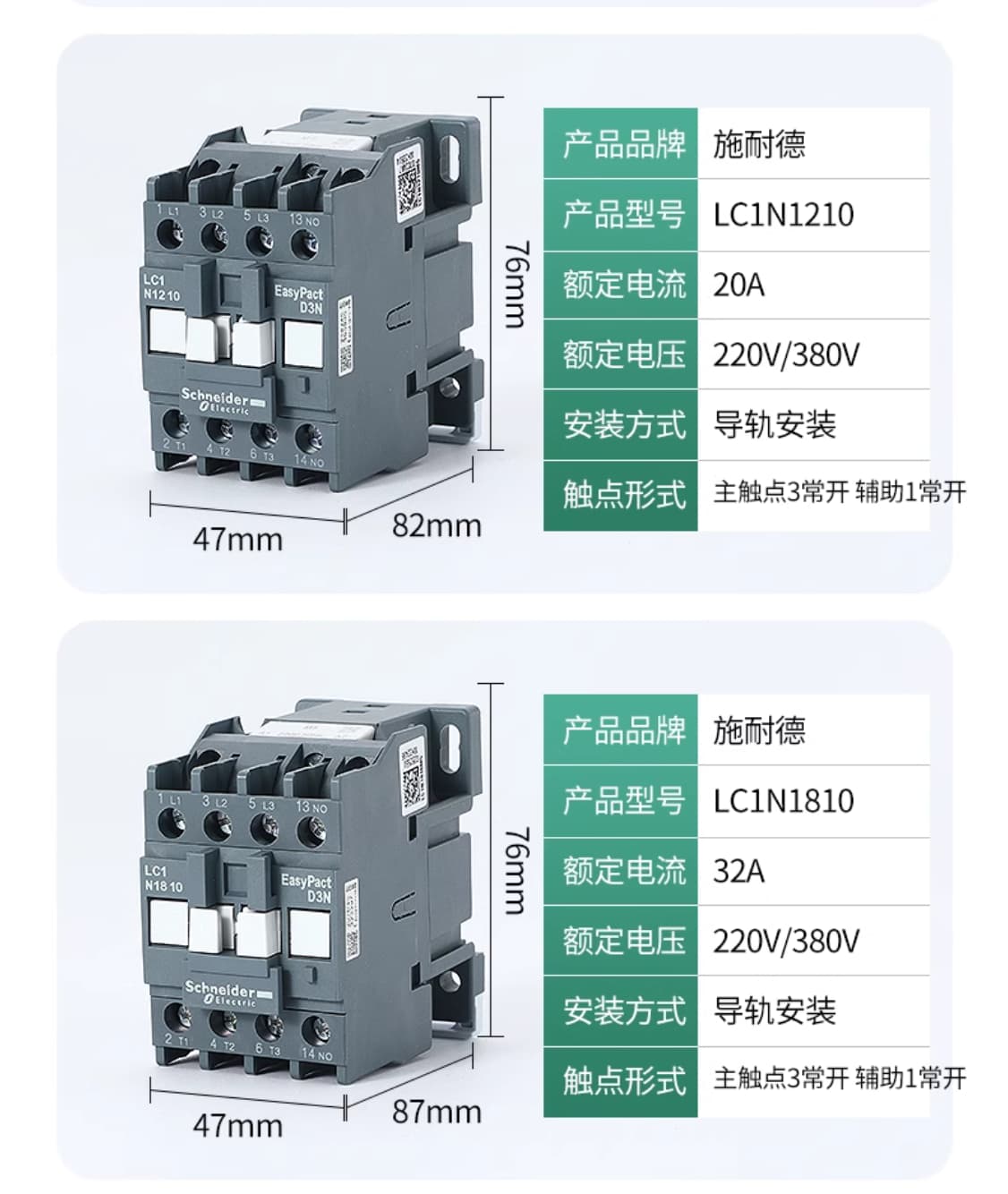

The Schneider Electric LC1N1810 contactor family includes LC1N1810B5N, LC1N1810CC5N, LC1N1810F5N, LC1N1810M5N, and LC1N1810Q5N. These Easy TeSys Control contactors have three normally open main poles, an 18 A AC-3 rating at up to 440 V AC, and one normally open auxiliary contact. The complete model number identifies the required 50 Hz AC coil voltage.
24 V AC Coil Model
LC1N1810B5N, 50 Hz
36 V AC Coil Model
LC1N1810CC5N, 50 Hz
110 V AC Coil Model
LC1N1810F5N, 50 Hz
220 V AC Coil Model
LC1N1810M5N, 50 Hz
380 V AC Coil Model
LC1N1810Q5N, 50 Hz
Product Range
Easy TeSys Control
Rated Operational Current
18 A at ≤440 V AC, AC-3
AC-1 Operational Current
25 A at ≤440 V AC
Main Pole Configuration
3P, 3 NO
Auxiliary Contact
1 NO
Motor Power
7.5 kW at 380–400 V AC, 50/60 Hz
Rated Operational Voltage
Power circuit: ≤690 V AC, 50/60 Hz
Mounting Support
Plate or DIN rail
Dimensions
74 × 45 × 80 mm
These contactors are specified for motor control and resistive-load switching. Confirm the complete model number, coil voltage, rated current, pole configuration, and auxiliary contact arrangement against the original control circuit before replacement.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric LC1N1810 contactors, helping procurement teams compare the five coil-voltage variants and prepare an accurately identified RFQ.
Submit LC1N1810B5N, LC1N1810CC5N, LC1N1810F5N, LC1N1810M5N, or LC1N1810Q5N, together with the required quantity and application requirements, for procurement review. Most qualified RFQs receive a response or quote within 12 hours.
