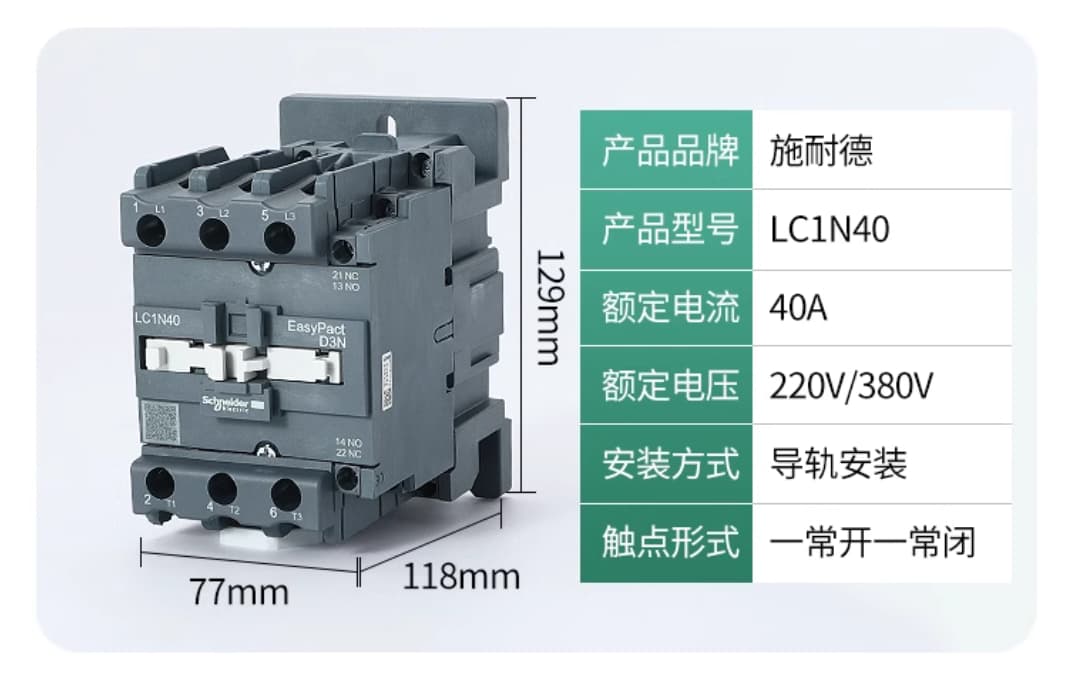

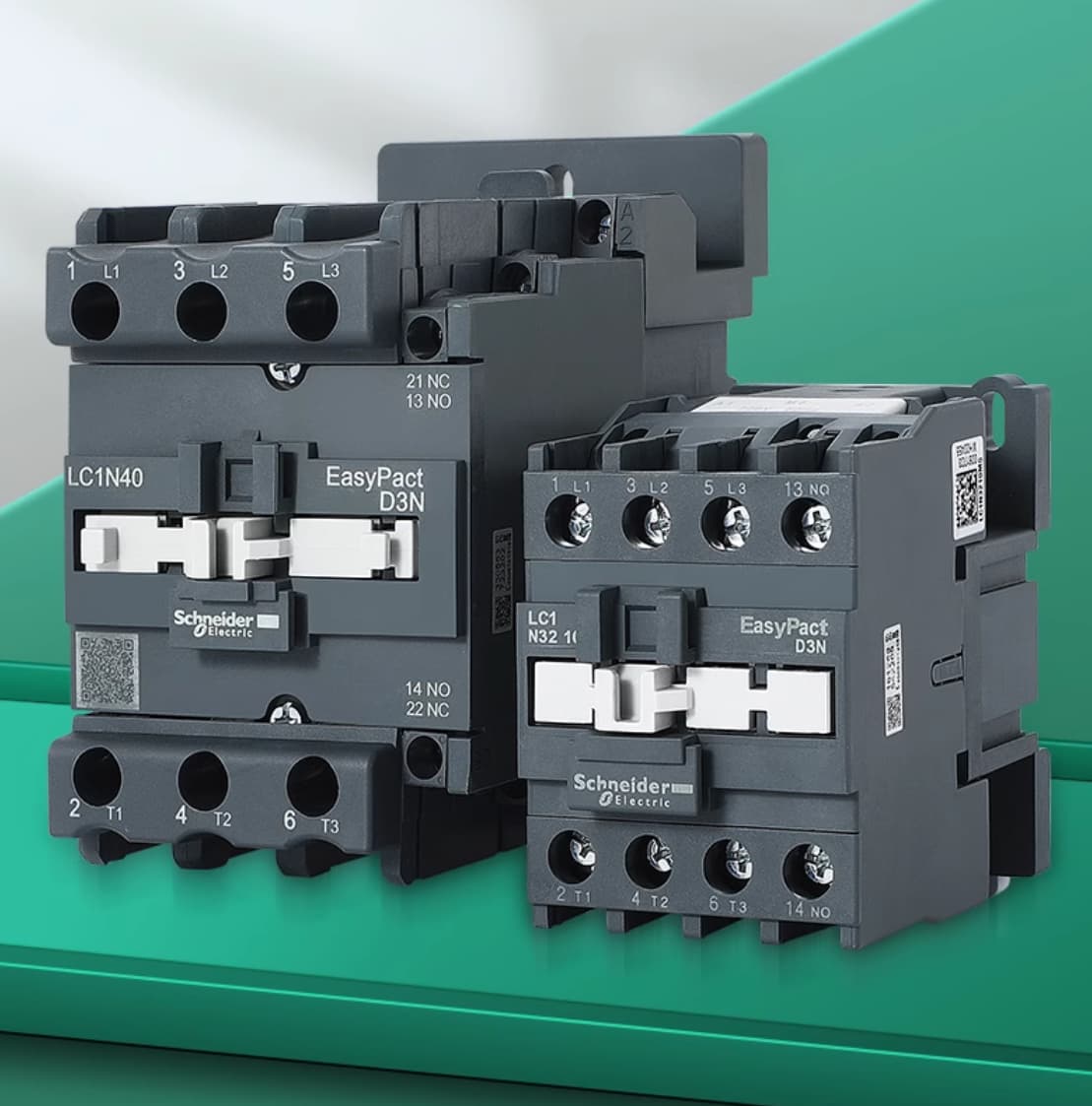

Schneider Electric LC1N40B5N / LC1N40CC5N / LC1N40F5N / LC1N40M5N / LC1N40Q5N Contactors, 40A 3P 1NO+1NC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1N40 contactor family includes LC1N40B5N, LC1N40CC5N, LC1N40F5N, LC1N40M5N, and LC1N40Q5N. These Easy TeSys Control 3-pole contactors are rated at 40 A at up to 440 V AC under AC-3 duty, with an 18.5 kW motor rating at 380–400 V AC and built-in 1 NO + 1 NC auxiliary contacts. The complete model number identifies the required 50 Hz AC coil voltage.
| 24 V AC Coil Model | LC1N40B5N, 50 Hz |
| 36 V AC Coil Model | LC1N40CC5N, 50 Hz |
| 110 V AC Coil Model | LC1N40F5N, 50 Hz |
| 220 V AC Coil Model | LC1N40M5N, 50 Hz |
| 380 V AC Coil Model | LC1N40Q5N, 50 Hz |
| Product Range | Easy TeSys Control |
| Rated Operational Current | 40 A at up to 440 V AC, AC-3 |
| AC-1 Operational Current | 50 A at up to 440 V AC |
| Motor Power | 18.5 kW at 380–400 V AC, 50/60 Hz |
| Main Pole Configuration | 3P, 3 NO |
| Auxiliary Contacts | 1 NO + 1 NC |
| Rated Operational Voltage | Power circuit: up to 690 V AC, 50/60 Hz |
| Mechanical Durability | 5,000,000 cycles |
Schneider Electric identifies these contactors for motor control, resistive-load switching, and efficient AC-3e applications, including household and HVAC equipment. Confirm the complete model number, coil voltage, current rating, motor power, and auxiliary contact configuration before replacement.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric LC1N40 contactors, helping procurement and maintenance teams compare the five coil-voltage variants and confirm technical alignment.
Submit LC1N40B5N, LC1N40CC5N, LC1N40F5N, LC1N40M5N, or LC1N40Q5N, together with the required quantity and application requirements, for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
