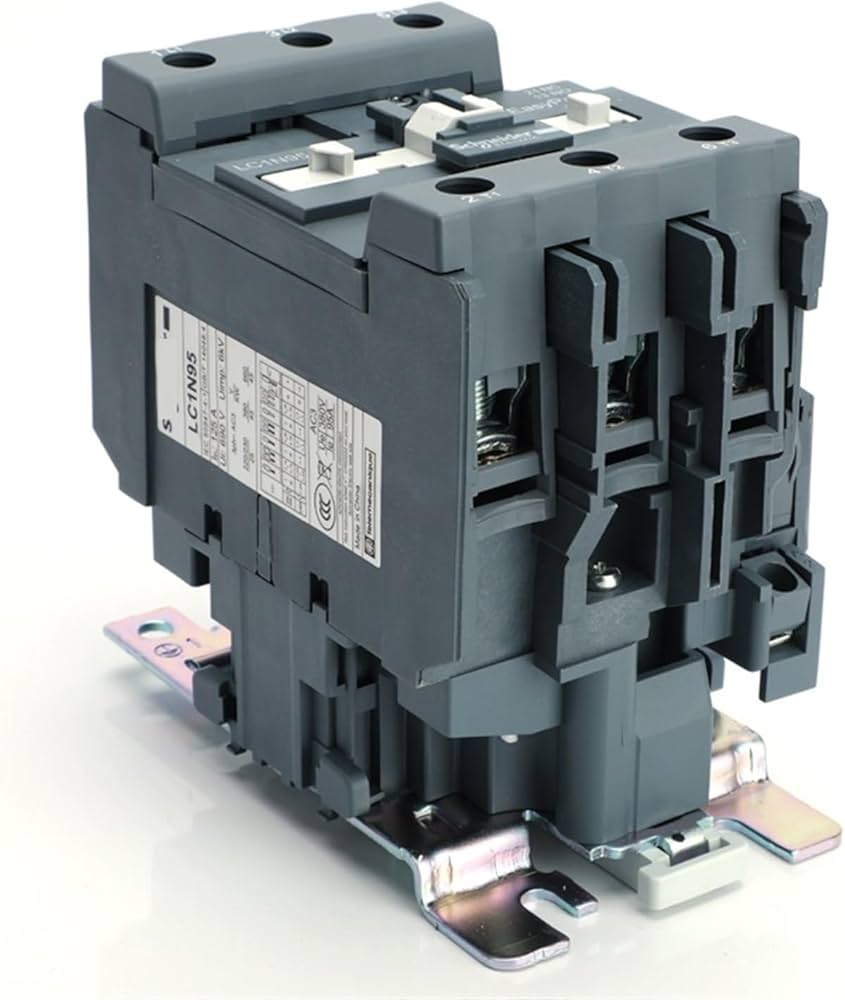

Schneider Electric LC1N95 Contactors, B5N/CC5N/F5N/M5N/Q5N, 95A 3P 1NO+1NC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1N95 contactor family includes LC1N95B5N, LC1N95CC5N, LC1N95F5N, LC1N95M5N, and LC1N95Q5N. These Easy TeSys Control contactors have three normally open main poles, a 95 A AC-3 rating at up to 440 V AC, a 45 kW motor rating at 380/400 V AC, and built-in 1 NO + 1 NC auxiliary contacts. The complete model number identifies the required 50 Hz AC coil voltage.
| 24 V AC Coil Model | LC1N95B5N, 50 Hz |
| 36 V AC Coil Model | LC1N95CC5N, 50 Hz |
| 110 V AC Coil Model | LC1N95F5N, 50 Hz |
| 220 V AC Coil Model | LC1N95M5N, 50 Hz |
| 380 V AC Coil Model | LC1N95Q5N, 50 Hz |
| Product Range | Easy TeSys Control |
| Rated Operational Current | 95 A at up to 440 V AC, AC-3 |
| Motor Power | 45 kW at 380/400 V AC, 50/60 Hz |
| Main Pole Configuration | 3P, 3 NO |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Circuit Type | AC at 50 Hz |
| Terminal Type | Multi-standard screw terminals |
These contactors are designed for essential motor-control and high-efficiency AC-3e motor applications, including household and HVAC equipment. Confirm the complete model number, coil voltage, current rating, motor power, and auxiliary contact arrangement before replacement.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric LC1N95 contactors, helping procurement teams compare coil-voltage variants and confirm technical alignment before ordering.
Submit LC1N95B5N, LC1N95CC5N, LC1N95F5N, LC1N95M5N, or LC1N95Q5N, together with the required quantity and application requirements, for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
