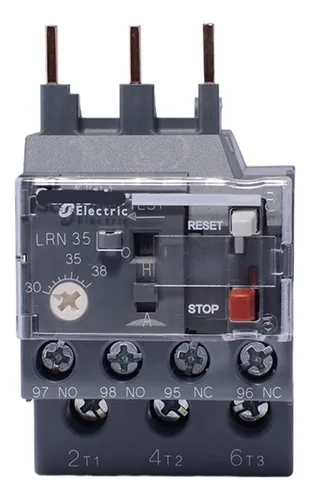

Schneider Electric LRN35N Easy TeSys Thermal Overload Relay, 30...38A, Class 10A
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LRN35N is a high-performance differential thermal overload relay from the Easy TeSys Protect range, specifically engineered for motor protection applications. Designed for seamless integration with LC1N38 contactors, this relay provides reliable protection against phase failure and overloads with an adjustable thermal range of 30 to 38 Amperes.
| Product ID (MPN) | LRN35N |
| Range of Product | Easy TeSys Protect |
| Relay Application | Motor protection |
| Thermal Protection Range | 30...38 A |
| Thermal Overload Class | Class 10A conforming to IEC 60947-4-1 |
| Network Type | AC 50/60 Hz |
| [Ue] Rated Operational Voltage | 690 V AC |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Control Type | Red stop push-button, Green reset push-button |
| Phase Failure Sensitivity | Tripping current 130% of Ir on one phase |
| Mounting Support | Under contactor; Rail or Plate with accessories |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| Dimensions (H x W x D) | 44.5 mm x 45 mm x 70 mm |
