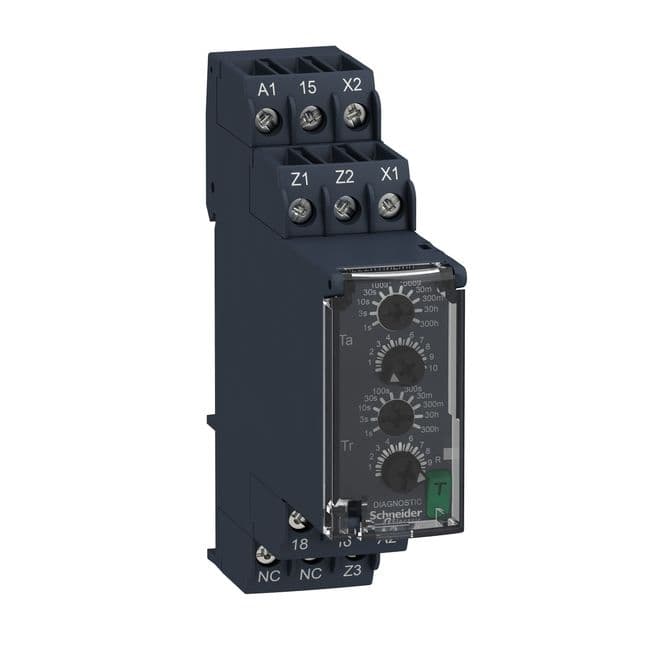

Schneider Electric RE22R1HMR Harmony RE22 Dual-Function Interval Timing Relay, 24–240 V AC/DC, 8 A 1CO
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric RE22R1HMR is a dual-function modular timing relay from the Harmony RE22 series. It offers both standard interval and interval-with-retrigger modes, selectable via rotary knob, and handles a wide timing span from 0.05 s to 300 h. With a single cadmium-free change-over contact rated 8 A, the unit operates over a universal 24–240 V AC/DC supply and mounts directly to 35 mm DIN rail, making it ideal for versatile OEM and panel-building applications.
- Two functions: H (interval) & Hw (interval with retrigger)
- Wide supply range: 24…240 V AC/DC, 50/60 Hz
- Timing ranges selectable from 0.05 s up to 300 h
- 1 C/O relay output, 8 A / 250 V AC
- High mechanical life: 10 million cycles
- Polycarbonate 22.5 mm housing with front LED status indicators
| Product ID | RE22R1HMR |
| Brand | Schneider Electric |
| Range / Series | Harmony Timer Relays – RE22 |
| Product Type | Modular dual-function timing relay |
| Discrete Output Type | Relay |
| Contact Configuration | 1 C/O (cadmium-free) |
| Nominal Output Current | 8 A |
| Rated Supply Voltage (Us) | 24…240 V AC/DC (50/60 Hz) |
| Voltage Range | 0.85…1.1 Us |
| Time Delay Type | Interval (H) & Interval w/ retrigger (Hw) |
| Selectable Time Ranges | 0.05…1 s, 0.3…3 s, 1…10 s, 3…30 s, 10…100 s, 30…300 s, 3…30 min, 30…300 min, 3…30 h, 30…300 h |
| Control Interface | Rotary knob & test/diagnostic button |
| Repeat Accuracy | ±0.5 % (IEC 61812-1) |
| Setting Accuracy | ±10 % of full scale @ 25 °C |
| Power Consumption | 3 VA (240 V AC) / 1.5 W (240 V DC) |
| Electrical Durability | 100 000 cycles @ 8 A / 250 V AC-1 |
| Mechanical Durability | 10 000 000 cycles |
| Mounting | 35 mm DIN rail (IEC 60715) |
| Housing Material | Polycarbonate |
| Width | 22.5 mm (0.9 in) |
| Net Weight | 0.1 kg (0.2 lb) |
| Operating Temperature | -20…60 °C |
| IP Rating | IP40 housing / IP50 front / IP20 terminals |
| Standards | UL 508, IEC 61812-1 |
| Certifications | CE, UL, CSA, EAC, RCM, CCC, GL |
| GTIN (EAN) | 3606480792373 |
| Country of Origin | Indonesia |
| Package 1 (H × W × L) | 3.0 cm × 8.7 cm × 10.0 cm – 92 g |
| Warranty | 18 months |
| California Prop 65 | Lead and lead compounds |
