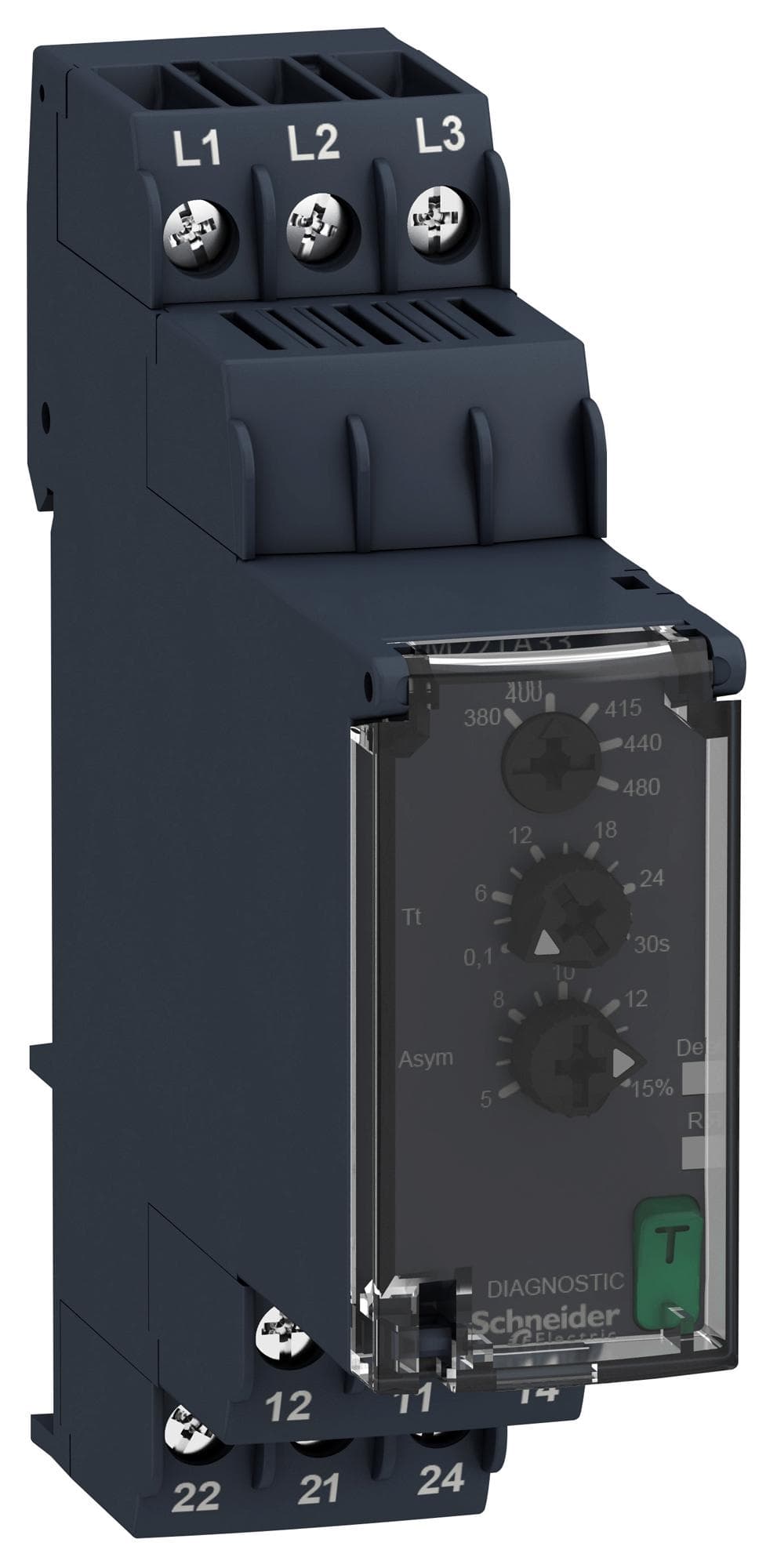

Schneider Electric RM22TA33 Harmony 3-Phase Control Relay, 380–480 V AC, 2 C/O Contacts
Regular price
$190.00 USD
Regular price
Sale price
$190.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric Harmony RM22TA33 is a self-powered 3-phase control relay that continuously monitors phase sequence, phase loss and phase asymmetry on three-phase supplies from 380 V to 480 V AC. Two change-over relay outputs (5 A/250 V AC, 2000 VA) provide reliable signalling or control, while an adjustable fault time delay (0.1…30 s) and fixed 2 % hysteresis help prevent nuisance tripping. Compact 22.5 mm DIN-rail housing, front-panel LEDs and a built-in test button make installation and diagnostics fast and intuitive.
Key Features
- Monitors phase sequence, phase failure & asymmetry (5…15 %)
- Wide operating range: 380…480 V AC (304…576 V limits)
- Two cadmium-free relay outputs, 2 C/O, 5 A (8 A max)
- Adjustable fault delay: 0.1 – 30 s; reset time 1.5 s
- True-RMS measurement, 150 ms measuring cycle
- DIN-rail mount, 22.5 mm width; IP20/40/50 protection
- Electrical life 100 k cycles; mechanical life 10 M cycles
- LED indication (green power, yellow relay ON)
| Product ID | RM22TA33 |
| Brand | Schneider Electric |
| Range | Harmony Control Relays |
| Product Type | 3-Phase Control Relay |
| Monitored Parameters | Phase sequence, phase loss, asymmetry |
| Measurement Range | 380…480 V AC (phase-to-phase) |
| Supply Voltage Limits | 304…576 V AC (-20 % / +20 %) |
| Supply Frequency | 50/60 Hz ±10 % |
| Power Consumption | 15 VA (480 V AC, 60 Hz) |
| Output Contacts | 2 C/O (SPDT), cadmium-free |
| Switching Capacity | 2000 VA, 5 A (8 A max) @ 250 V AC |
| Minimum Switching Load | 10 mA / 5 V DC |
| Adjustable Fault Delay (Tt) | 0.1 – 30 s (±10 %) |
| Reset Time | 1.5 s (max) |
| Run-up Delay | 650 ms |
| Asymmetry Threshold | 5 – 15 % of Un (selectable) |
| Hysteresis | 2 % (fixed) |
| Measuring Cycle | 150 ms (true-RMS) |
| Operating Temperature | -20…+60 °C |
| Storage Temperature | -40…+70 °C |
| IP Protection | IP20 (terminals) / IP40 (housing) / IP50 (front) |
| Mounting | 35 mm DIN rail (IEC 60715) |
| Housing Material | Self-extinguishing plastic |
| Width | 22.5 mm (0.9 in) |
| Net Weight | 0.09 kg |
| GTIN / EAN | 3606480792151 |
| Certifications | GL, EAC, CCC, CE, CSA, UL, RCM |
| Country of Origin | Indonesia |
| Warranty | 18 months |
