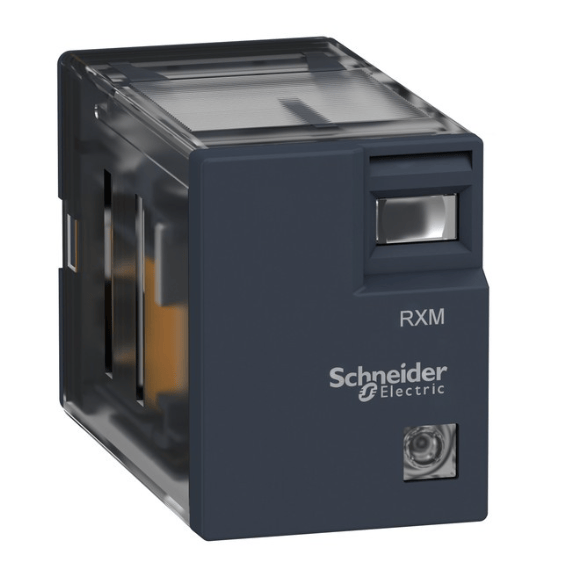

Schneider Electric RXM2LB2P7 Harmony Electromechanical Relays, 5A, 2CO, 230V AC - Pack of 10
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric RXM2LB2P7 is a miniature plug-in relay from the Harmony Electromechanical Relays series. It features a 5A current capacity with 2CO contacts and operates on a 230V AC control circuit. The relay includes an LED indicator for status monitoring.
Key Features
- Miniature plug-in relay
- 2 C/O contacts
- LED indicator
- 230V AC control circuit voltage
- High mechanical and electrical durability
Specifications
| Product ID | RXM2LB2P7 |
| Series Name | RXM series |
| Contacts Type and Composition | 2 C/O |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Conventional Enclosed Thermal Current | 5 A |
| Rated Operational Current | 2.5 A at 28 V DC NC, 2.5 A at 250 V AC NC, 5 A at 28 V DC NO, 5 A at 250 V AC NO |
| Minimum Switching Capacity | 25 mW |
| Maximum Switching Voltage | 250 V AC, 28 V DC |
| Mechanical Durability | 20000000 cycles |
| Electrical Durability | 200000 cycles resistive at 23 °C |
| Dielectric Strength | 2000 V AC between coil and contact |
| Protection Category | RT I |
| Net Weight | 0.031 kg |
| Ambient Air Temperature for Storage | -40…85 °C |
| Vibration Resistance | 3 gn +/- 1 mm (10…50 Hz) operating, 6 gn +/- 1 mm (10…50 Hz) not operating |
| Standards | CE, IEC 61810-1, UL 508 |
