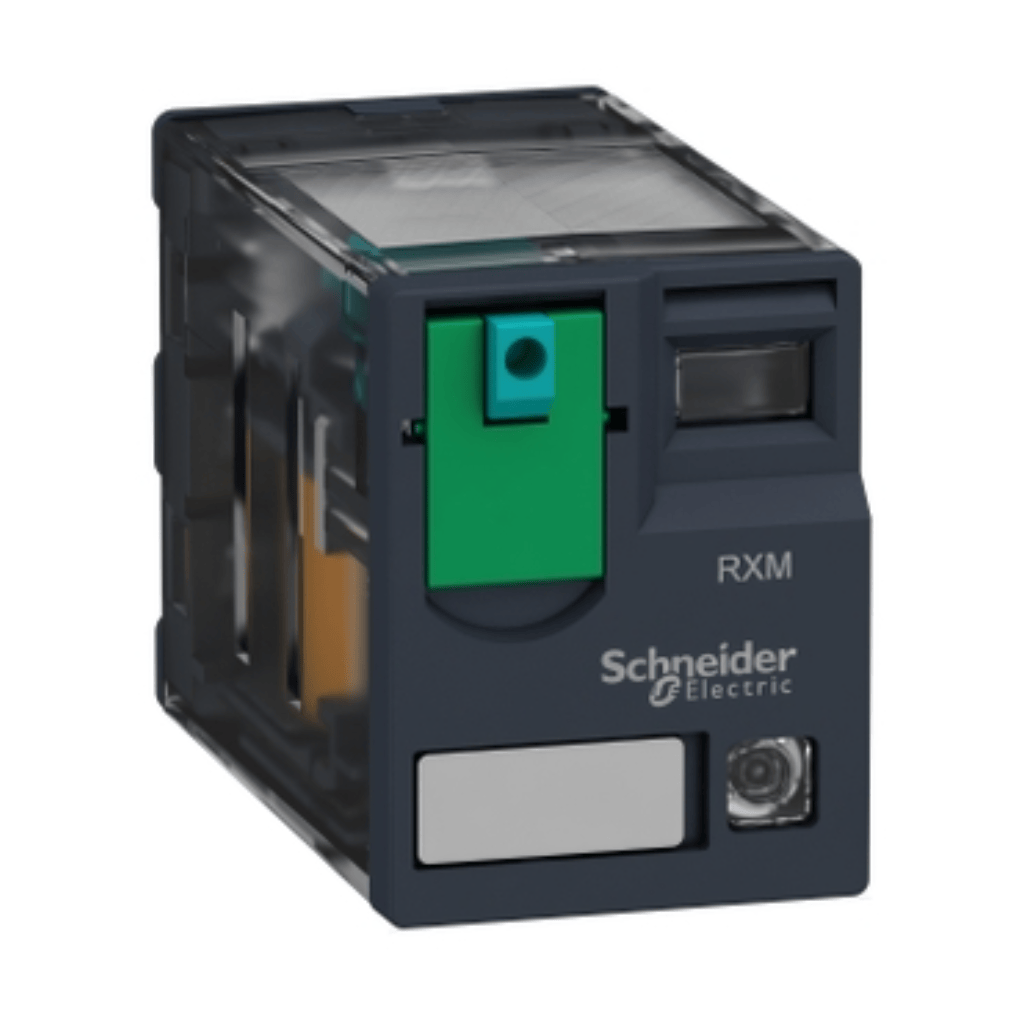

Schneider Electric RXM4AB2P7 Harmony Relay, 6A, 4CO, 230V AC with LED - Pack of 10
Regular price
$110.00 USD
Regular price
Sale price
$110.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric RXM4AB2P7 is a miniature plug-in relay from the Harmony Electromechanical Relays series. It features a 6A current capacity, 4CO contacts, and operates on 230V AC. The relay includes an LED indicator and a lockable test button for convenient operation.
Key Features
- Miniature plug-in relay
- 4 C/O contacts
- LED indicator
- Lockable test button
- 230V AC control circuit voltage
- Durable design with high mechanical and electrical durability
Specifications
| Product ID | RXM4AB2P7 |
| Series Name | RXM series |
| Contacts Type and Composition | 4 C/O |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Conventional Enclosed Thermal Current | 6 A |
| Rated Operational Current | 3 A 28 V DC NC, 3 A 250 V AC NC, 6 A 28 V DC NO, 6 A 250 V AC NO |
| Rated Impulse Withstand Voltage | 2.5 kV 1.2/50 μs |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Electrical Durability | 100000 cycles resistive |
| Average Coil Consumption | 1.2 VA 60 Hz |
| Operating Time | 20 ms |
| Mechanical Durability | 10000000 cycles |
| Reset Time | 20 ms |
| Dielectric Strength | 1300 V AC between contacts |
| Protection Category | RT I |
| Pollution Degree | 2 |
| Operating Position | Any position |
| Net Weight | 0.082 lb (0.037 kg) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| IP Degree of Protection | IP40 conforming to IEC 60529 |
| Standards | CSA C22.2 No 14, IEC 61810-1, UL 508 |
| Product Certifications | UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme |
| GTIN | 3389119403887 |
