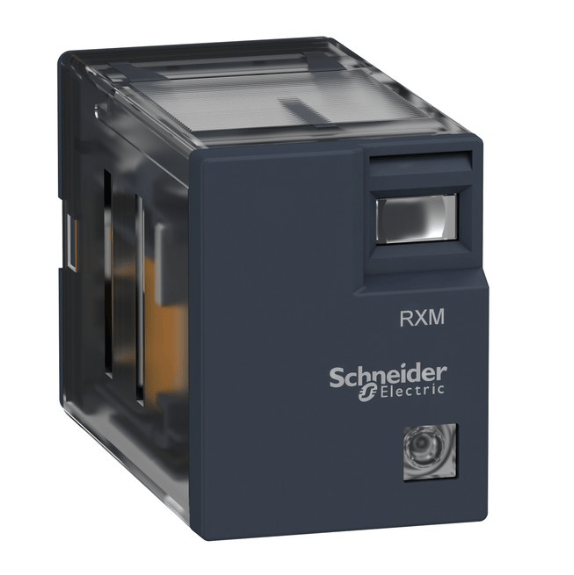

Schneider Electric RXM4LB2BD Harmony Miniature Plug-in Relay, 3A, 4CO, 24V DC - Pack of 10
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric RXM4LB2BD is a miniature plug-in relay from the Harmony series. It features a 3A current capacity with 4CO contacts and operates on a 24V DC control circuit. The relay includes an LED indicator for status monitoring.
Key Features
- Miniature plug-in relay
- 4 C/O contacts
- LED indicator
- 24V DC control circuit voltage
- High mechanical and electrical durability
Specifications
| Product ID | RXM4LB2BD |
| Series Name | Harmony |
| Contacts Type and Composition | 4 C/O |
| Control Circuit Voltage | 24 V DC |
| Conventional Enclosed Thermal Current | 3 A |
| Rated Operational Current | 3 A (AC-1/DC-1) NO, 1.5 A (AC-1/DC-1) NC |
| Minimum Switching Current | 10 mA |
| Maximum Switching Voltage | 250 V AC, 28 V DC |
| Mechanical Durability | 10000000 cycles |
| Electrical Durability | 100000 cycles for resistive load |
| Dielectric Strength | 2000 V AC between coil and contact |
| Protection Category | RT I |
| Net Weight | 0.034 kg |
| Ambient Air Temperature for Storage | -40…85 °C |
| Vibration Resistance | 3 gn +/- 1 mm (10…50 Hz) operating, 6 gn +/- 1 mm (10…50 Hz) not operating |
| Standards | EN/IEC 61810-1, CE |
