• Schneider I/O Expansion Module Schneider TM2AMI2HT, I/O Expansion Module, 2-Channel High-Level Analog Input
1 1

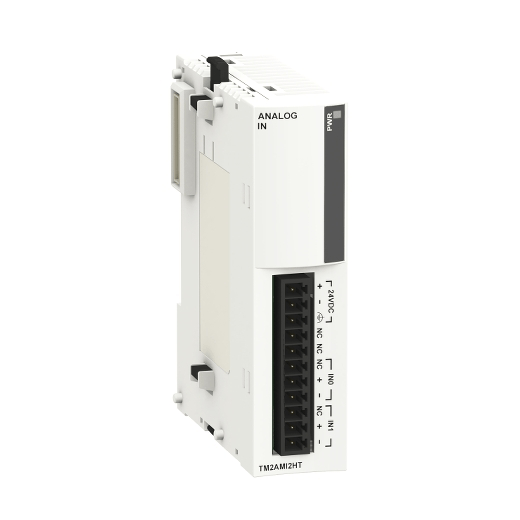

Schneider TM2AMI2HT, I/O Expansion Module, 2-Channel High-Level Analog Input

$500.00 USD
$500.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express

Overview: The Schneider Electric TM2AMI2HT is a 2-channel analog input expansion module for the Modicon M238 logic controller series. It provides two high-level, non-differential analog inputs configurable for either voltage (0-10V) or current (4-20mA) signals with 12-bit resolution. Designed for DIN rail mounting, it features photocoupler insulation and is compatible with Twido and Advantys OTB systems.

Key Features:

  • 2 Analog Inputs (High Level): Configurable for 0-10V or 4-20mA non-differential signals.
  • 12-bit Input Resolution for precise measurement.
  • Low Total Error: +/-1% of full scale.
  • Removable Screw Terminal Block for easy wiring.
  • Photocoupler Insulation between I/O channels and internal logic.
  • 24V DC External Supply Operation.
  • Compact form factor identical to other modules in the series.
Product ID TM2AMI2HT
Brand Schneider Electric
Range/Series Modicon M238 Logic Controller
Product Type I/O Expansion Module
Analog Input Number 2
Analog Input Type Current 4...20 mA non differential, Voltage 0...10 V non differential
Analog Input Resolution 12 bits
LSB Value 2.5 mV (voltage), 4.8 µA (current)
Measurement Error +/- 0.2 % of full scale at 25 °C
Total Error +/-1 %FS
Rated Supply Voltage [Us] 24 V DC
Supply Voltage Limits 20.4...28.8 V
Current Consumption (24V) 40 mA
Electrical Connection 1 removable screw terminal block
Acquisition Period 10 ms per channel + 1 controller cycle time
Width 23.5 mm
Depth 70 mm
Height 90 mm
Net Weight 0.085 kg
