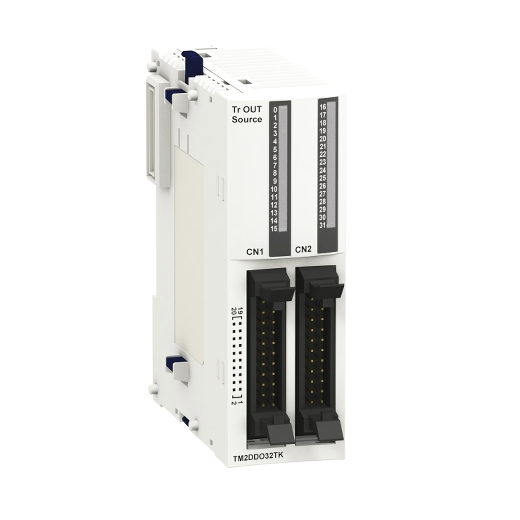

Schneider TM2DDO32TK Discrete Output Module, 32-Channel, 24V Transistor, HE10 Connector, for Modicon M238 Series
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric TM2DDO32TK is a discrete output module designed for the Modicon M238 logic controller. This 32-channel module provides 24V transistor sourcing outputs, featuring a compact design with a single HE10 connector for simplified wiring. It is engineered for reliable performance in industrial automation applications with built-in short-circuit and overload protection.
Key Features
- 32 discrete transistor output channels.
- 24V DC sourcing logic outputs.
- Features automatic short-circuit and overload protection with reactivation.
- Compact form factor with 35 mm DIN rail mounting.
- Includes two display blocks for local channel status signaling.
- Designed for compatibility with Modicon M238, Advantys OTB, and Twido systems.
| Product ID / MPN | TM2DDO32TK |
| EAN / GTIN | 3595863995923 |
| Brand | Schneider Electric |
| Product Type | Discrete Output Module |
| Controller Compatibility | Modicon M238 |
| Number of Outputs | 32 |
| Output Type | Transistor |
| Output Voltage | 24 V DC |
| Output Logic | Source |
| Current per Channel | 0.4 A |
| Maximum Current per Common | 2 A |
| Number of Common Points | 2 |
| Response Time (0 to 1 / 1 to 0) | 450 μs / 450 μs |
| Residual Voltage at State 1 | 0.4 V |
| Maximum Leakage Current | 0.1 mA |
| Output Voltage Limits | 20.4...28.8 V |
| Maximum Inductive Load | 10 mH |
| Maximum Tungsten Load | 9.6 W |
| Short-circuit Protection | With automatic reactivation |
| Overload Protection | With automatic reactivation |
| Isolation (Channels to Logic) | 500 V for 1 minute |
| Current Consumption (5V DC) | 25 mA at state 1 for all outputs |
| Current Consumption (24V DC) | 40 mA at state 1 for all outputs |
| Local Signalling | 2 display blocks |
| Electrical Connection | 1 connector HE10 |
| Mounting Support | 35 mm symmetrical DIN rail |
| Dimensions (H x W x D) | 90 mm x 33.5 mm x 81.3 mm (3.5 in x 1.3 in x 3.2 in) |
| Net Weight | 0.105 kg (0.231 lb) |
| Warranty | 18 months |
