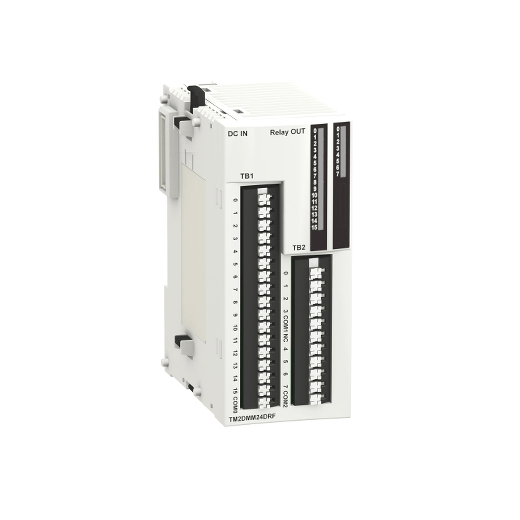

Schneider TM2DMM24DRF Discrete I/O Module, 16 Digital Inputs 24VDC, 8 Relay Outputs, Spring Terminal, for Modicon M238 Series
Regular price
$360.00 USD
Regular price
Sale price
$360.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric TM2DMM24DRF is a discrete mixed I/O module for the Modicon M238 logic controller. It combines 16 digital inputs (24V DC, sink/source) with 8 relay outputs (1 NO contact) in a single compact unit. Featuring a spring terminal block for connection, this module is designed for flexible and reliable control in industrial automation applications, offering high isolation and long mechanical durability.
Key Features
- Combined I/O: 16 digital inputs and 8 relay outputs.
- Inputs: 24V DC, configurable as sink or source logic.
- Outputs: Relay with 1 Normally Open (NO) contact per channel.
- High isolation: 2300V (output-logic), 1500V (input-output, output-output groups).
- Features a single spring terminal block for electrical connection.
- Designed for compatibility with Modicon M238, Twido, and Advantys OTB systems.
| Product ID / MPN | TM2DMM24DRF |
| EAN / GTIN | 3595863995770 |
| Brand | Schneider Electric |
| Product Type | Discrete I/O Module |
| Controller Compatibility | Modicon M238 |
| Number of Inputs | 16 |
| Input Voltage | 24 V DC |
| Input Logic | Sink or Source |
| Input Current | 7 mA |
| Input Impedance | 3.4 kOhm |
| Number of Outputs | 8 |
| Output Type | Relay |
| Output Function | 1 NO |
| Current per Channel | 2 A |
| Maximum Current per Common (Output) | 7 A |
| Number of Common Points | 2 for output, 1 for input |
| Contact Resistance | 45 mOhm |
| Response Time Output (0 to 1 / 1 to 0) | ≤ 10 ms / ≤ 5 ms |
| Response Time Input (State 0 & 1) | 4 ms |
| Input Voltage Limits | 20.4...28.8 V |
| Minimum Switching Current | 0.1 mA at 0.1 V DC |
| Isolation (Output to Logic) | 2300 V for 1 minute |
| Isolation (Input to Logic) | 500 V for 1 minute |
| Isolation (Input to Output) | 1500 V for 1 minute |
| Isolation (Output Channels Group) | 1500 V for 1 minute |
| Mechanical Durability | 20,000,000 cycles |
| Electrical Durability (Example) | 100,000 cycles @ 2A, 240V AC resistive |
| Current Consumption (24V DC) | 45 mA at state 1 for all I/O |
| Current Consumption (5V DC) | 65 mA at state 1 for all I/O |
| Local Signalling | 1 display block |
| Electrical Connection | 1 spring terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Dimensions (H x W x D) | 90 mm x 42.9 mm x 70 mm (3.5 in x 1.7 in x 2.8 in) |
| Net Weight | 0.14 kg (0.31 lb) |
| Warranty | 18 |
