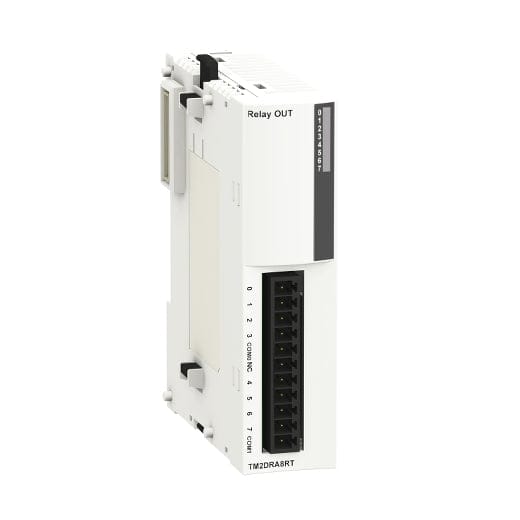

Schneider TM2DRA8RT Discrete I/O Expansion Module, 8 Relay Outputs (1 NO), Removable Screw Terminal, for Modicon M238 Series
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric TM2DRA8RT is an I/O expansion module designed for the Modicon M238 logic controller, Twido, and Advantys OTB systems. It provides 8 relay output channels, each with a single Normally Open (NO) contact, and is designated as a wear part. Featuring a removable screw terminal block for easy wiring, this module offers high isolation and long mechanical durability for reliable control of AC/DC loads in industrial automation.
Key Features
- 8 discrete relay output channels with 1 NO contact each.
- High current capacity: 2A per channel, 7A per common.
- Features a removable screw terminal block for flexible installation and maintenance.
- High isolation: 2300V (channels to logic), 1500V (between channels and channel groups).
- Long mechanical durability rated for 20 million cycles.
- Compact design with 35 mm symmetrical DIN rail mounting.
| Product ID / MPN | TM2DRA8RT |
| EAN / GTIN | 3595863995930 |
| Brand | Schneider Electric |
| Product Type | I/O Expansion Module (Wear Part) |
| Controller Compatibility | Modicon M238, Twido, Advantys OTB |
| Number of Outputs | 8 |
| Output Type | Relay |
| Output Function | 1 NO |
| Current per Channel | 2 A |
| Maximum Current per Common | 7 A |
| Number of Common Points | 2 |
| Contact Resistance | 45 mOhm |
| Response Time (0 to 1 / 1 to 0) | ≤ 10 ms / ≤ 5 ms |
| Minimum Switching Current | 0.1 mA at 0.1 V DC |
| Isolation (Channels to Logic) | 2300 V for 1 minute |
| Isolation (Between Channels) | 1500 V for 1 minute |
| Isolation (Output Channels Group) | 1500 V for 1 minute |
| Mechanical Durability | 20,000,000 cycles |
| Electrical Durability (Example) | 100,000 cycles @ 2A, 240V AC resistive |
| Current Consumption (5V DC) | 30 mA at state 1 for all outputs |
| Current Consumption (24V DC) | 40 mA at state 1 for all outputs |
| Local Signalling | 1 display block |
| Electrical Connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Dimensions (H x W x D) | 90 mm x 27.3 mm x 84.6 mm (3.5 in x 1.07 in x 3.3 in) |
| Net Weight | 0.11 kg (0.24 lb) |
| Warranty | 18 months |
