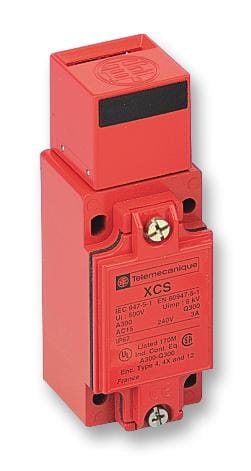

Telemecanique Sensors XCSA702 XCS Metal Safety Switch, 2 NC + 1 NO, M20 x 1.5
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Telemecanique Sensors XCSA702 is an industrial-grade metal safety switch designed for the reliable protection of personnel and machinery in automation environments. Featuring a key-operated turret head and a 3-pole configuration (2 NC + 1 NO) with slow-break, break-before-make operation, it guarantees secure machine isolation. Built with a rugged Zamak housing, IP67 protection, and the capability to reach Category 4 / PL e / SIL 3 safety levels when properly monitored, this switch delivers uncompromising performance in demanding, heavy-duty applications.
| Product ID (MPN) | XCSA702 |
| Brand | Telemecanique Sensors |
| Product Range | XCS Safety Switches |
| Component Type | Safety Switch |
| Head Type | Key operated turret head |
| Body Material | Metal (Zamak) |
| Cable Entry | 1 entry tapped for M20 x 1.5 |
| Cable Outer Diameter | 7...13 mm |
| Mechanical Durability | 1,000,000 cycles |
| Dimensions (W x H x D) | 40 mm x 114 mm x 44 mm |
| Contacts Composition | 2 NC + 1 NO |
| Contact Operation | Slow-break, break before make |
| Number of Poles | 3 |
| Rated Operational Current [Ie] | 6 A @ 120 V AC-15 | 3 A @ 240 V AC-15 | 0.55 A @ 125 V DC-13 | 0.27 A @ 250 V DC-13 |
| Enclosed Thermal Current [Ithe] | 10 A |
| Rated Insulation Voltage [Ui] | 500 V (IEC 60947-1) / 300 V (UL 508 / CSA) |
| Short-Circuit Protection | 10 A cartridge fuse type gG (gl) |
| Maximum Safety Level | Category 4 / PL e / SIL 3 (with appropriate monitoring system) |
| IP Degree of Protection | IP67 (EN/IEC 60529) |
| Product Certifications | CSA, UL |
