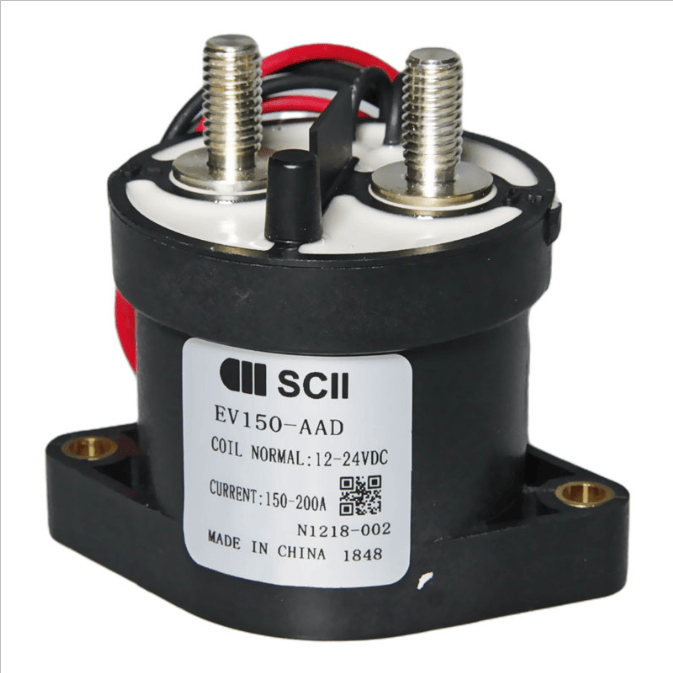

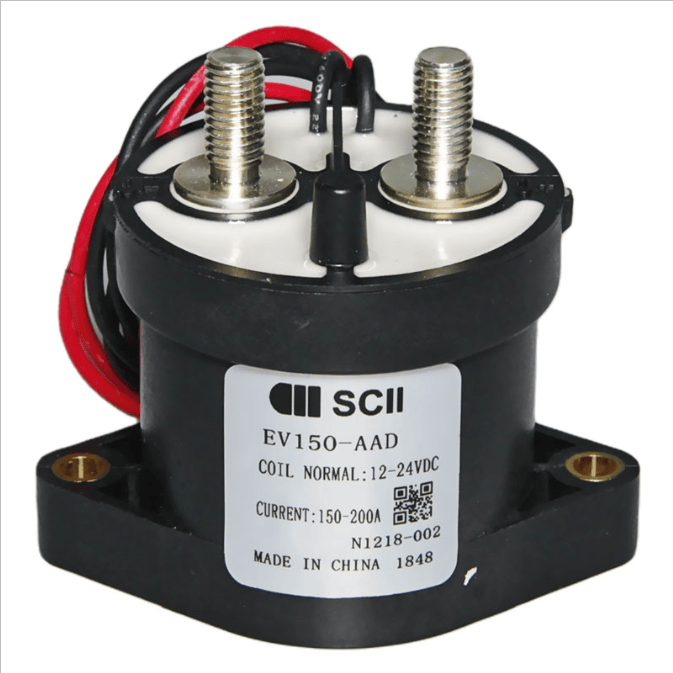

SCII EV150-AAD EV150 Series High-Voltage DC Contactor, 150A-200A, 12-900VDC, 12-24VDC Coil
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SCII EV150-AAD is a high-performance, hermetically sealed high-voltage DC contactor designed for electric vehicles, battery charging systems, and DC power control applications. Featuring an inert gas-filled contact chamber, it safely and reliably switches high-voltage DC loads up to 900VDC with a continuous current rating of 150A-200A. Its compact, arc-free design and energy-saving coil make it an ideal choice for demanding B2B automotive and industrial power distribution systems.
| Product ID (MPN) | EV150-AAD |
| Contact Arrangement | SPST-NO (1 Form A) |
| Rated Load Voltage | 12 - 900 VDC |
| Continuous Current | 150A - 200A (at 65°C) |
| Max. Short Circuit Current | 2,000A @ 320VDC (1 cycle) |
| Contact Voltage Drop | ≤ 60 mV (at 150A) |
| Coil Voltage Range | 9 - 36 VDC |
| Coil Rated Voltage | 12 - 24 VDC |
| Coil Holding Power | 1.7 W @ 12VDC |
| Dielectric Strength | 2,200 Vrms (between open contacts / contacts to coil) |
| Insulation Resistance | Min. 100 MΩ @ 500 VDC (Initial) |
| Operate Time | 25 ms Max. (including bounce) |
| Release Time | 12 ms Max. (including arc at 2000A) |
| Mechanical Life | 1,000,000 cycles |
| Main Terminals | 2 x M8 x 1.25 |
| Weight | 0.43 kg (0.95 lbs) |
