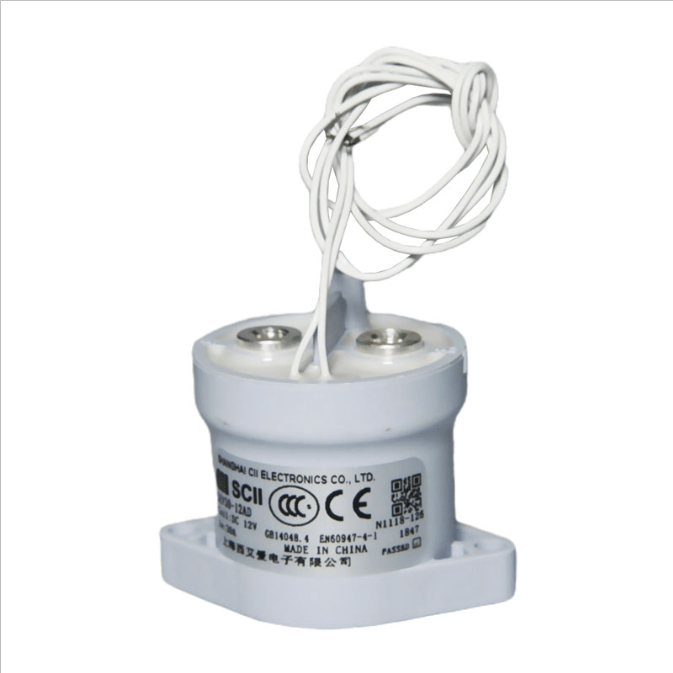

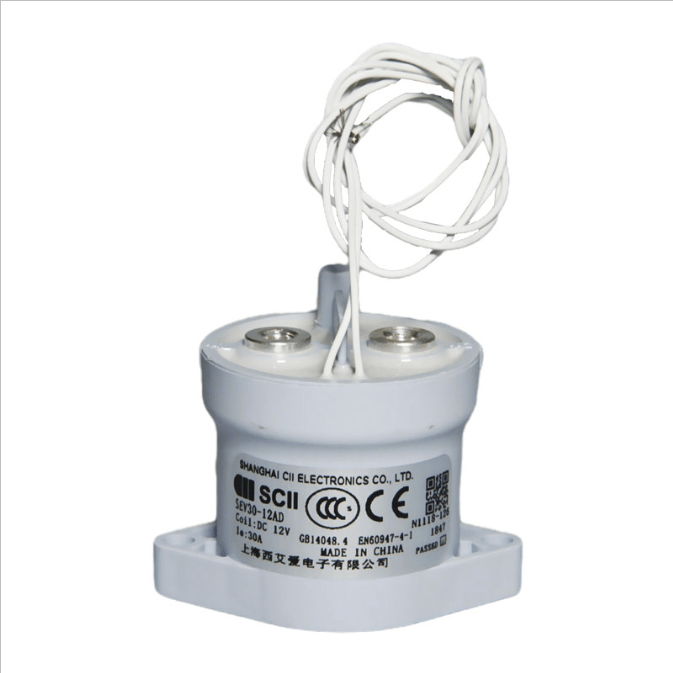

SCII SEV30-12AD / SEV30-12AD-01 SEV30 Series DC Contactor, 30A, 12VDC Coil, Bottom Mount
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SCII SEV30-12AD is a compact, high-voltage DC contactor designed for reliable power control, circuit isolation, and safety protection in industrial machinery and electric vehicle charging systems. Featuring an epoxy-sealed contact chamber filled with inert gas and magnetic blow-out technology, it safely manages loads up to 900VDC with minimal operating noise. Its robust bottom-mount design and lightweight construction make it an ideal choice for space-constrained, high-vibration environments.
| Product ID (MPN) | SEV30-12AD |
| Order Code | SEV30-12AD-01 |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Rated Load Current | 30A |
| Rated Load Voltage | 12 - 900VDC |
| Nominal Coil Voltage | 12VDC |
| Pick-up Voltage (Max) | 8VDC (@ 20°C) |
| Drop-out Voltage (Min) | 1.2VDC (@ 20°C) |
| Dielectric Strength (Open Contacts) | 5,600Vrms / 8,000Vdc |
| Dielectric Strength (Contacts to Coil) | 2,000Vrms / 4,000Vdc |
| Insulation Resistance (Initial) | Min. 100 MΩ @ 500Vdc |
| Contact Voltage Drop | ≤ 60mV (at 30A) |
| Mounting Type | Bottom Mount |
| Weight | 125g |
