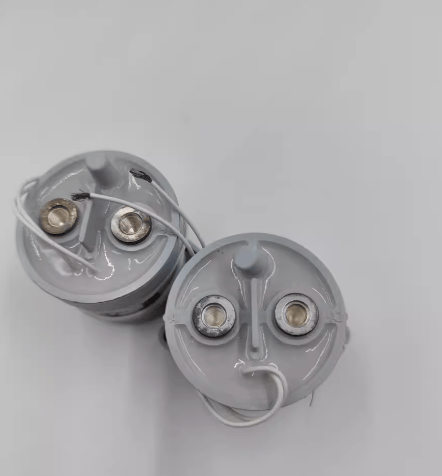

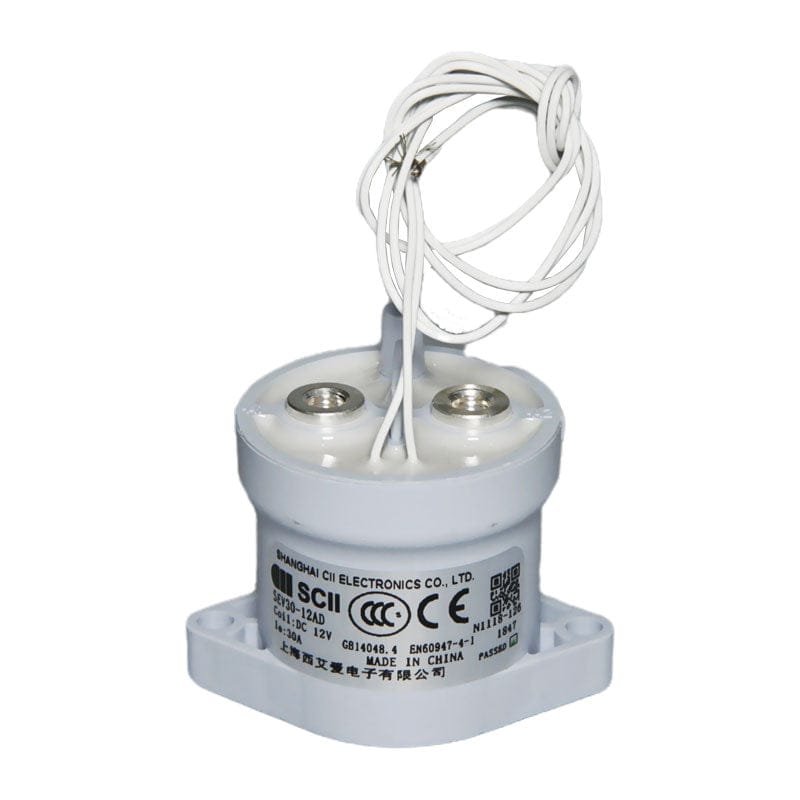

SCII SEV30-24AD SEV30 Series High-Voltage DC Contactor, 30A, 24VDC Coil, 12-900VDC
Regular price
$35.00 USD
Regular price
Sale price
$35.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SCII SEV30-24AD is a high-performance, compact high-voltage DC contactor engineered for reliable power control, circuit isolation, and safety protection in new energy vehicles, charging stations, and industrial machinery. Featuring an epoxy-sealed contact chamber filled with inert gas and integrated magnetic arc blowouts, it safely switches loads up to 900VDC with minimal operating noise. Its robust bottom-mount design and lead-wire termination ensure secure installation and stable contact resistance in demanding automotive and industrial environments.
| Product ID (MPN) | SEV30-24AD |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Rated Load Voltage | 12 - 900 VDC |
| Continuous Carry Current | 30 A |
| Short-time Overcurrent | 50 A (3 minutes) |
| Max. Short-circuit Current | 1,250 A (at 60Hz, 0.5 cycles) |
| Contact Voltage Drop | ≤ 60 mV (at 30 A) |
| Nominal Coil Voltage | 24 VDC |
| Dielectric Strength (Open Contacts) | 5,600 Vrms / 8,000 Vdc |
| Dielectric Strength (Contacts to Coil) | 2,000 Vrms / 4,000 Vdc |
| Insulation Resistance | 100 MΩ min. @ 500 Vdc (Initial) |
| Operate Time (incl. bounce) | 25 ms max. |
| Release Time | 10 ms max. |
| Mechanical Life | 1,000,000 cycles |
| Electrical Life (30A @ 450VDC) | 10,000 cycles |
| Electrical Life (30A @ 750VDC) | 4,000 cycles |
| Mounting Type | Bottom Mount (D) |
| Termination Type | Lead Wire (A) |
| Vibration Resistance | 20G peak (55 to 2,000 Hz) |
| Shock Resistance | 20G peak (11ms half-sine wave) |
