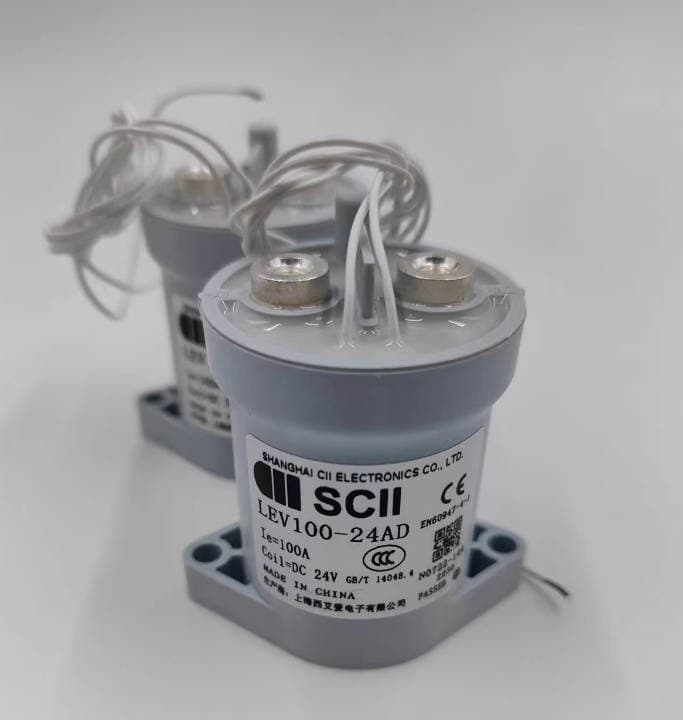

SCII LEV100-24AD LEV100 Series DC Contactor, 100A, 24VDC Coil, Bottom Mount
Regular price
$35.00 USD
Regular price
Sale price
$35.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SCII LEV100-24AD is a high-performance, compact DC contactor designed for reliable power switching in industrial automation, electric vehicles, and energy storage systems. Engineered for demanding DC loads, this 100A contactor features a 24VDC coil, a single-pole normally open (SPST-NO) contact configuration, and a robust bottom-mount design. Its high dielectric strength and exceptional electrical endurance ensure safe and predictable circuit isolation in critical power distribution applications.
| Product ID (MPN) | LEV100-24AD |
| Order Code | LEV100-24AD |
| Contact Arrangement | 1 Form A (SPST-NO) |
| Rated Current | 100A |
| Max. Switching Voltage | 900VDC |
| Nominal Coil Voltage | 24VDC |
| Rated Coil Resistance | 96 Ω ±5% |
| Coil Power | 6.0W |
| Coil Current | 250mA |
| Pick-up Voltage (Max) | 19.2VDC (@ 20°C) |
| Drop-out Voltage (Min) | 1.6VDC (@ 20°C) |
| Dielectric Strength (Open Contacts) | 4000VDC (1mA, 1min) |
| Dielectric Strength (Contacts to Coil) | 2200VAC (1mA, 1min) |
| Insulation Resistance | Min. 1000 MΩ @ 1000VDC |
| Mounting Type | Bottom Mount |
| Load Polarity | Polar Load |
| Mechanical Life | 200,000 Cycles |
