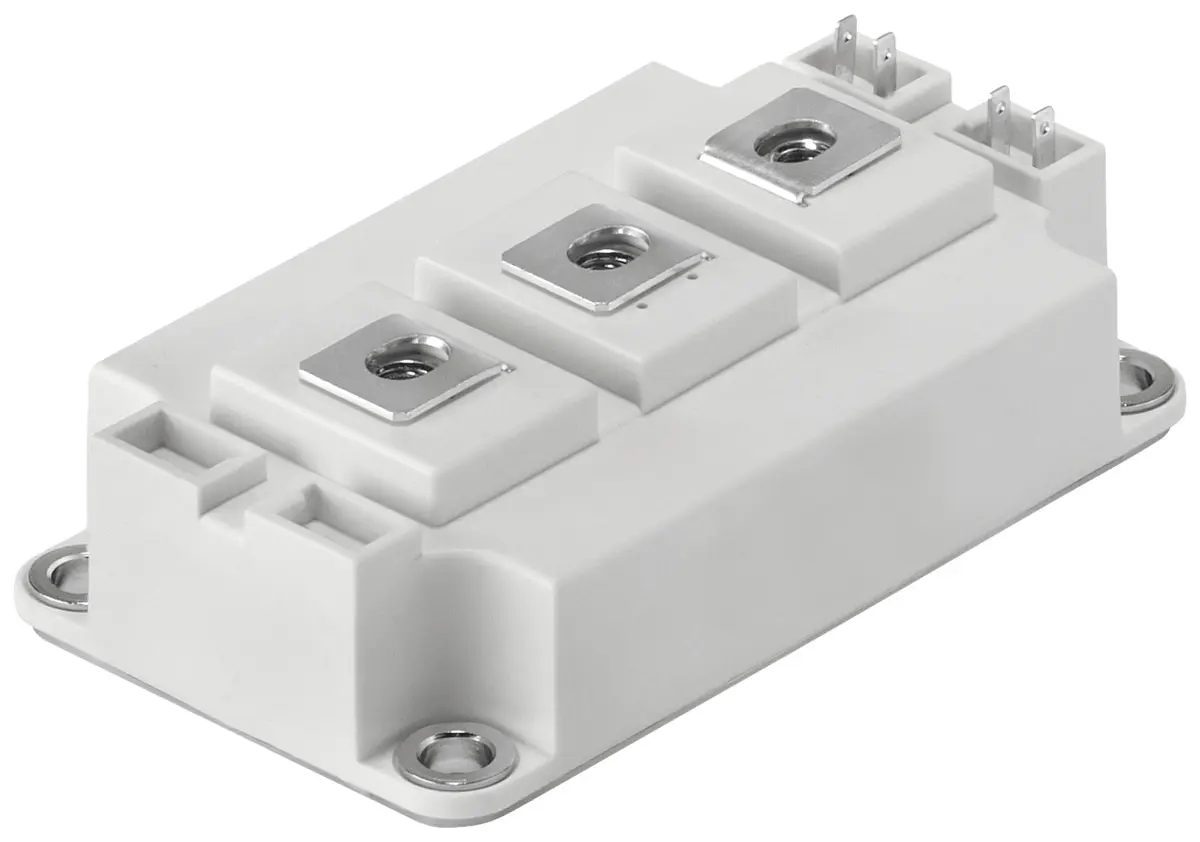

Semikron Danfoss 22892070 SEMITRANS 3 SKM300GB12T4, IGBT4 Fast Trench, 300A, 1200V, 106x62x31
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Semikron Danfoss SKM300GB12T4 is a high-power IGBT module from the SEMITRANS 3 product line, configured in a half-bridge topology. It utilizes 4th generation fast trench IGBT (IGBT4) and CAL4 diode technology for efficient switching at frequencies up to 20 kHz. The module features an insulated copper baseplate using DBC (Direct Bonded Copper) technology for improved thermal performance and power cycling capability, and includes an integrated gate resistor. It is UL recognized and designed for demanding industrial power conversion applications.
Key Features:
- High Current & Voltage Rating: 1200V, 300A.
- Advanced Chip Technology: IGBT4 Fast Trench & CAL4 diode.
- High Switching Frequency: Suitable for operation up to 20 kHz.
- Robust Construction: Insulated DBC copper baseplate for enhanced thermal cycling.
- Integrated Gate Resistor: Simplifies driver circuit design.
- Industry Standard Housing: SEMITRANS 3 package.
- UL Recognized: File number E63532.
| Product ID | SKM300GB12T4 |
| Legacy Part Number | 22892070 |
| Brand | Semikron Danfoss |
| Product Line | SEMITRANS |
| Housing / Type | SEMITRANS 3 |
| Technology | IGBT |
| Chip Technology | IGBT 4 Fast (Trench) |
| Topology | Half-Bridge |
| Voltage (V) | 1200 V |
| Current (A) | 300 A |
| Typical Applications | AC inverter drives, UPS, Electronic welders at fsw up to 20 kHz |
| Features | IGBT4 & CAL4 diode, Insulated DBC copper baseplate, Integrated gate resistor, UL recognized (E63532) |
| Dimensions (LxWxH) | 106 x 62 x 31 mm |
| Net Weight | 0.31 kg |
| Country of Origin | Slovakia |
| Product Status | In Production |
