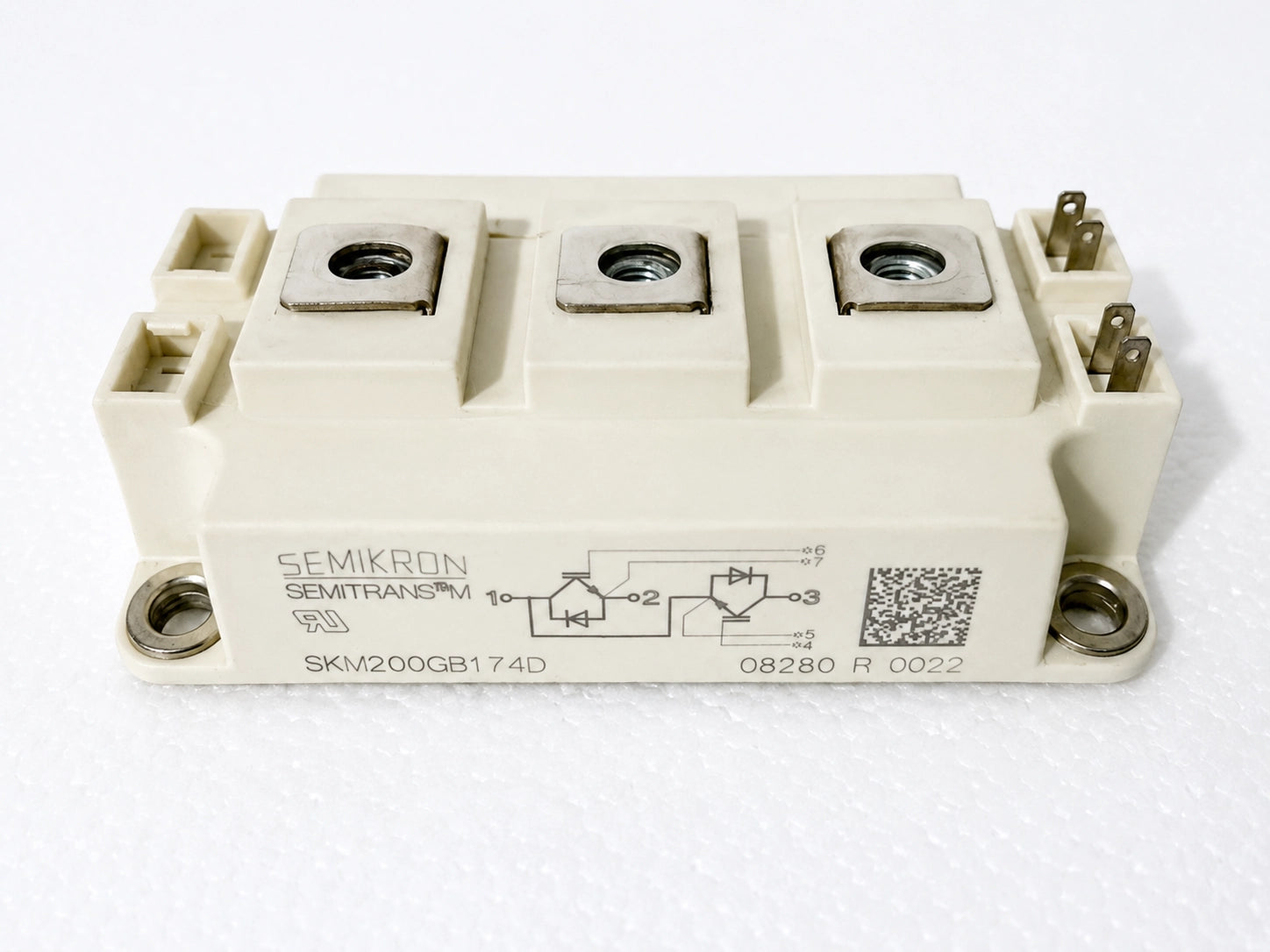

SEMIKRON SKM 200 GB 174 D IGBT Module, 1700 V, 200 A
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SEMIKRON SKM 200 GB 174 D is a SEMITRANS 3 low-loss IGBT module for industrial power electronics and switching applications. Verified specifications include 1700 V collector-emitter voltage, 200 A nominal collector current at 75C case temperature, isolated copper baseplate construction using DCB Direct Copper Bonding, and SEMITRANS 3 Case D 56 housing.
| Product ID / MPN | SKM 200 GB 174 D |
| Brand / Series / Category | SEMIKRON / SEMITRANS 3 / Low-loss IGBT module |
| Main Electrical or Technical Ratings | VCES 1700 V; VCGR 1700 V; IC 270 A at 25C case temperature; ICN 200 A at 75C case temperature; ICM 540 A at 25C case temperature and 400 A at 75C case temperature; VGES +/-20 V; Ptot 1400 W per IGBT at 25C case temperature |
| Mechanical Specs | SEMITRANS 3 Case D 56; 106.4 mm x 61.4 mm case outline; isolated copper baseplate using DCB Direct Copper Bonding |
| Mounting / Terminal / Connection | M6 heatsink mounting; M6 power terminals; heatsink mounting torque 3 to 5 Nm; terminal torque 2.5 to 5 Nm |
| Environmental Ratings | Junction temperature -40C to +150C; storage temperature up to 125C; climate 40/125/56; humidity Class F |
| Standards / Certifications | Isolation voltage 3400 V AC for 1 minute; UL Recognition File No. E 63 532 applied for |
| Installation Notes | Electrostatic discharge sensitive device; observe IEC 747-1 Chapter IX handling guidance; switching use only, not for linear use |
Typical applications include AC inverter drives on 575 to 750 VAC mains, DC bus voltage systems from 750 to 1200 VDC, public transport auxiliary systems, and industrial switching applications.
Apexon Supply supports B2B sourcing and replacement review for SEMIKRON SKM 200 GB 174 D IGBT modules, helping procurement teams compare verified electrical ratings, housing, mounting, and application requirements against existing equipment.
Send the MPN, required quantity, and application requirements to request a B2B RFQ and technical alignment support.
