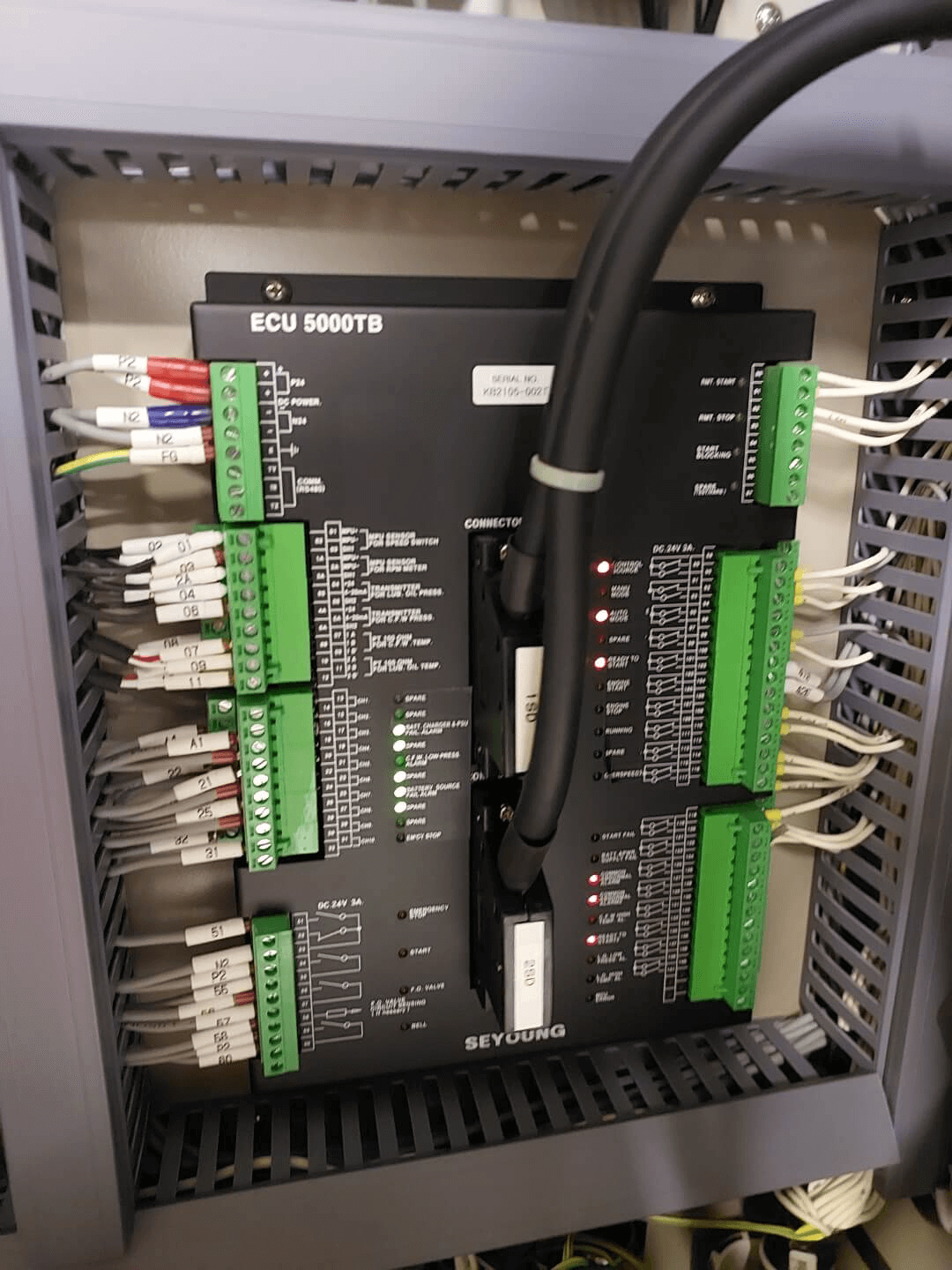

Seyoung ECU-5000TB Emergency Generator Control Unit, 24V DC, RS485 Communication, Engine Control Terminal Board - Marine Grade

The Seyoung ECU-5000TB is a specialized Engine Control Unit (ECU) terminal board module designed for heavy-duty emergency generator sets. Manufactured by Seyoung Electric Equipment Co., Ltd., this unit serves as the central wiring and logic interface for marine and industrial power management systems, typically paired with the ECU-5000 series control panels.

The ECU-5000TB is engineered to process multiple critical sensor inputs and execute control commands with high precision. It features a robust array of pluggable terminal blocks for ease of maintenance and secure connectivity in high-vibration environments. The module integrates advanced signal processing for MPU speed sensors, PT100 temperature sensors, and 4-20mA pressure transmitters, providing a comprehensive data acquisition bridge for engine diagnostics.

Technical Specifications and Capabilities:

• Industrial Connectivity: Features a dedicated RS485 communication port for remote monitoring and system integration via MODBUS protocols.
• Sensor Support: Comprehensive input compatibility including MPU (Magnetic Pick-Up) for RPM, PT100 RTDs for oil/coolant temperature, and 4-20mA loops for oil pressure monitoring.
• Output Switching: High-reliability relay outputs rated at DC 24V 3A, suitable for controlling fuel valves, starter motors, and alarm bells.
• Status Monitoring: On-board LED diagnostic indicators for real-time visibility of DC Power, Run/Stop modes, and specific fault conditions (Over Speed, Start Fail, Low Oil Pressure).
• Marine-Grade Design: Compact, heat-dissipating enclosure designed for cabinet mounting, meeting the rigorous standards for shipboard electrical equipment.
