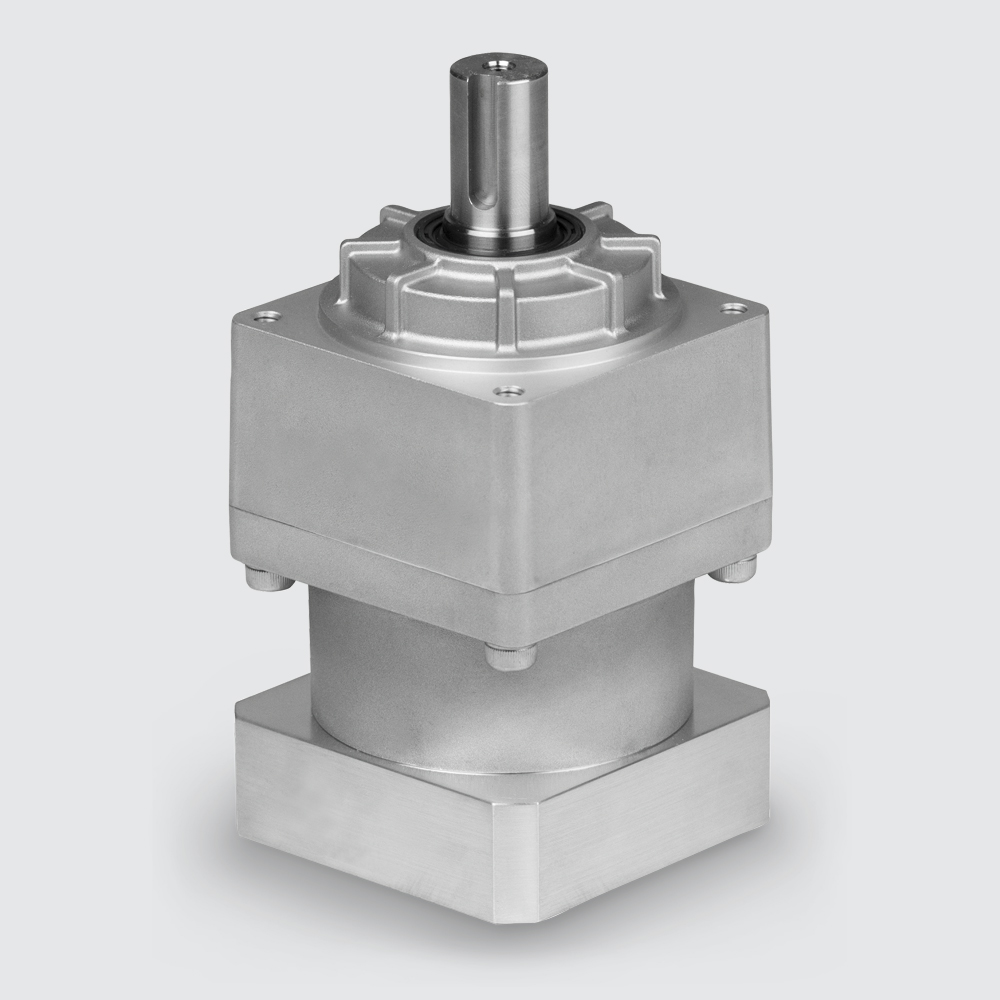

Nidec VRSF-15D-19EB19 ABLE VRSF Series Planetary Inline Gear Reducer, Ratio 1:15, Frame Size D
Regular price
$500.00 USD
Regular price
Sale price
$500.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Nidec VRSF-15D-19EB19 is a high-performance planetary inline gear reducer from the ABLE VRSF Series, engineered for precision servo and stepper motor applications. Featuring a lightweight aluminum frame and helical cut gearing, this 2-stage reducer delivers quiet operation, high torsional rigidity, and a 1:15 reduction ratio, making it ideal for traveling axes, end-of-arm tooling, and harsh industrial environments.
| Product ID (MPN) | VRSF-15D-19EB19 |
| Brand | Nidec |
| Product Series | ABLE Reducer (VRSF Series) |
| Gear Type | Planetary (Helical Cut) |
| Reduction Ratio | 1:15 (2 Stage) |
| Frame Size | D |
| Motor Mounting Code | 19EB19 |
| Nominal Output Torque | 30.4 Nm |
| Maximum Acceleration Torque | 91.2 Nm |
| Nominal Input Speed | 3000 rpm |
| Maximum Input Speed | 5000 rpm |
| Efficiency | 85% |
| Torsional Rigidity | 6 Nm/arcmin |
| Backlash (Standard) | ≤ 15 arc-min |
| Permitted Radial Load | 1760 N |
| Permitted Axial Load | 882 N |
| Noise Level | ≤ 65 dB |
| Protection Class | IP65 |
| Housing Material | Aluminum |
