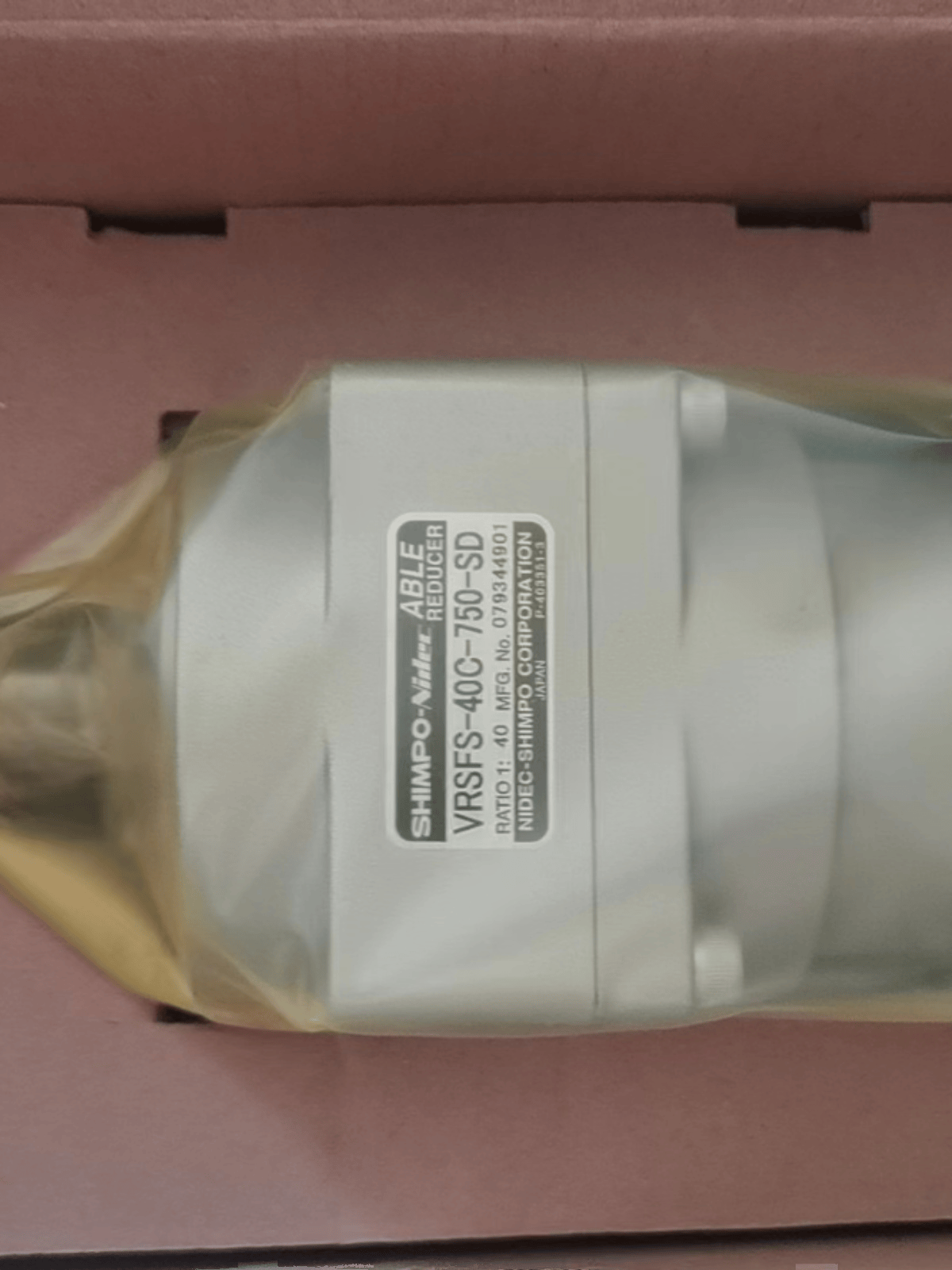

Nidec VRSFS-40C-750-SD-T1 / 090962114 ABLE VRSF Series Planetary Inline Gear Reducer, Ratio 1:40, Frame Size C
Regular price
$450.00 USD
Regular price
Sale price
$450.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

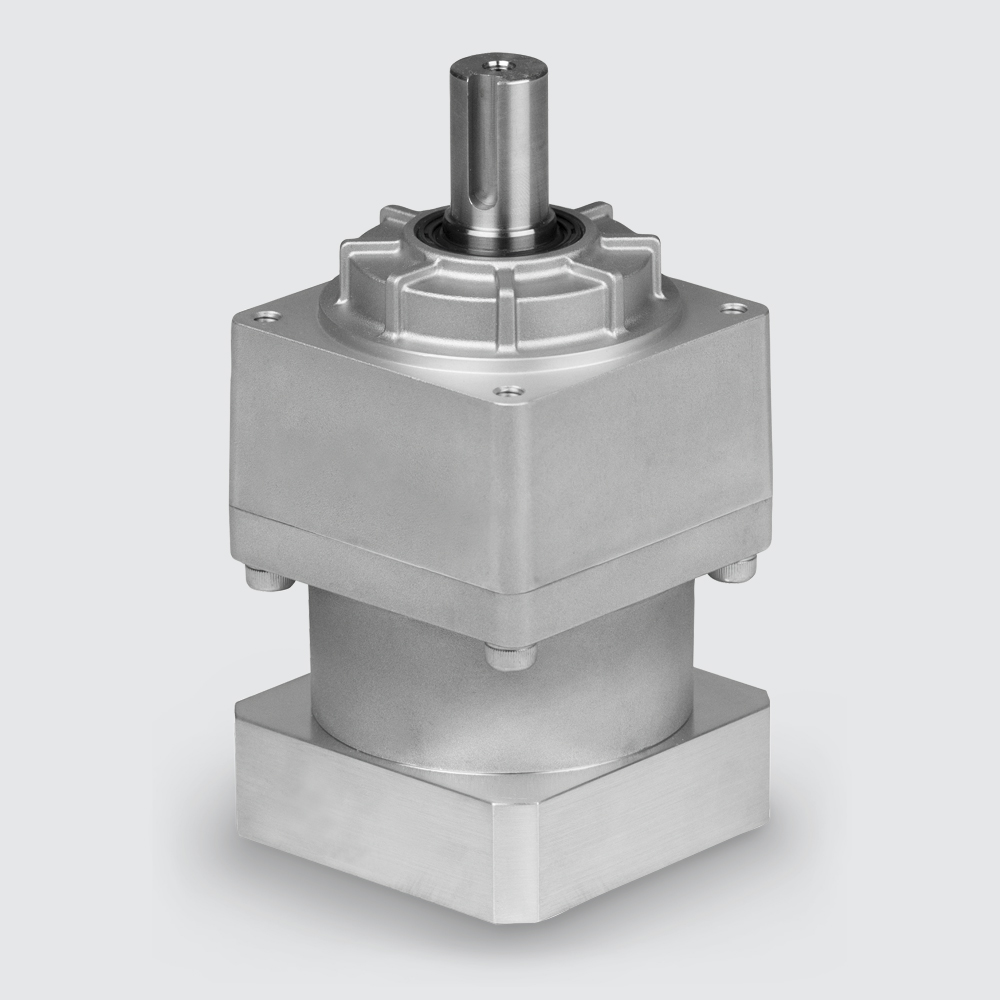

The Nidec VRSFS-40C-750-SD-T1 is a high-performance planetary inline gear reducer from the ABLE VRSF Series, engineered for precision servo and stepper motor applications. Featuring a lightweight aluminum frame and helical cut gearing, this reducer delivers quiet operation and high torsional rigidity, making it ideal for traveling axes, end-of-arm tooling, and harsh industrial environments.
| Product ID (MPN) | VRSFS-40C-750-SD-T1 |
| Order Code | 090962114 |
| Brand | Nidec |
| Product Series | ABLE Reducer (VRSF Series) |
| Gear Type | Planetary (Helical Cut) |
| Reduction Ratio | 1:40 |
| Frame Size | C |
| Motor Compatibility | 750W Servo Motor |
| Nominal Input Speed | 3000 rpm |
| Maximum Input Speed | 5000 rpm |
| Efficiency | 85% |
| Torsional Rigidity | 3 Nm/arcmin |
| Permitted Radial Load | 1670 N |
| Permitted Axial Load | 833 N |
| Noise Level | ≤ 65 dB |
| Protection Class | IP65 |
| Housing Material | Aluminum |
| Country of Origin | China |
