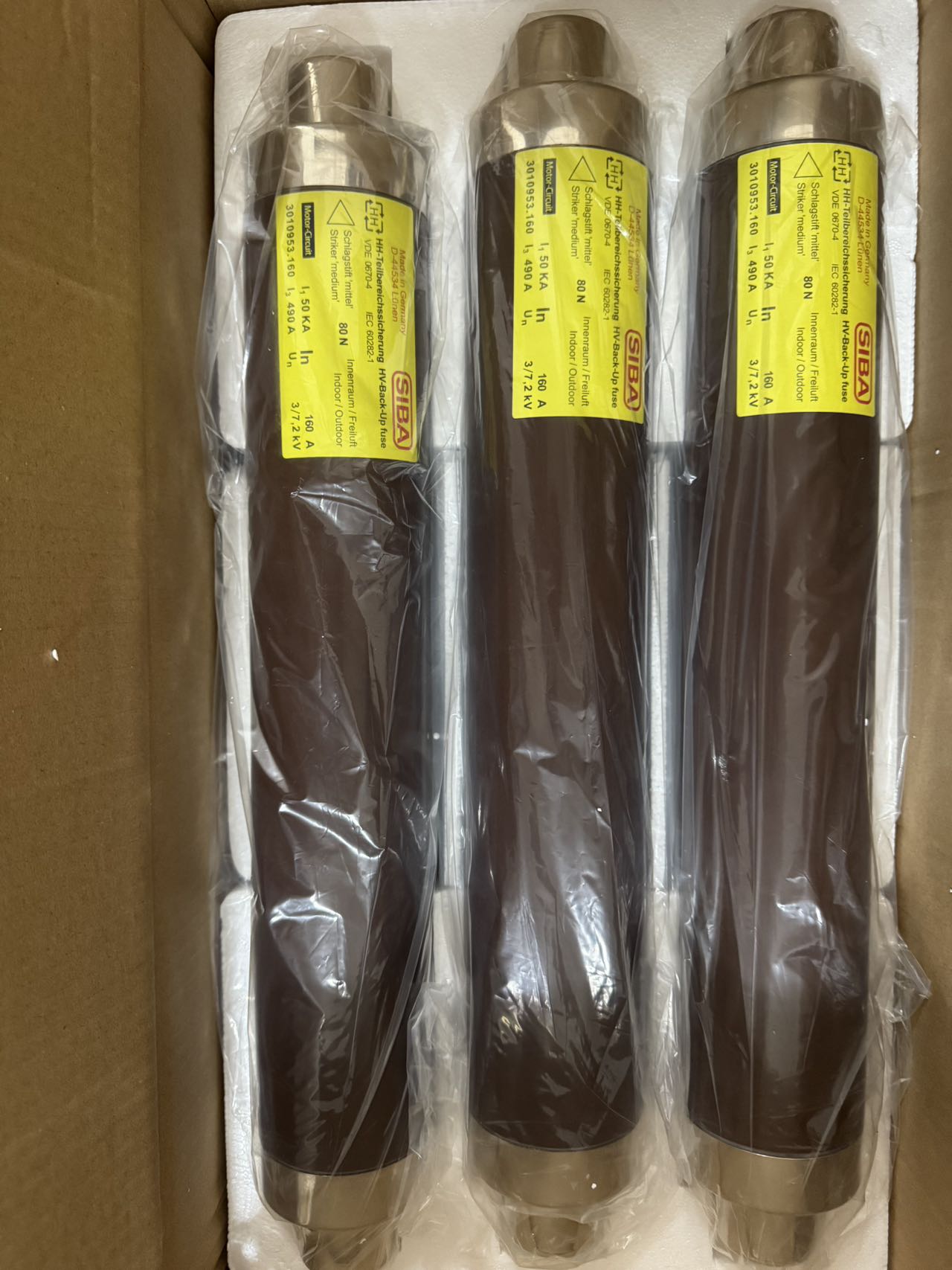

SIBA 3010953.160 HHDM-BM High Voltage Motor Fuse, 160A, 7.2kV
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
SIBA 3010953.160 is an HHDM-BM high voltage current-limiting Back-Up fuse rated at 160A and 7.2kV for motor circuit protection. This DIN-style fuse has a 442mm length, 67mm body diameter and 120N striker.
| Manufacturer Part Number | 3010953.160 |
| Series | HHDM-BM |
| Fuse Class | Current-Limiting Back-Up |
| Rated Current | 160A |
| Rated Voltage | 7.2kV |
| Rated Breaking Current | 50kA |
| Minimum Breaking Current | 490A |
| Pre-Arcing I²t | 64,000A²s |
| Total I²t at 0.87Un | 307,000A²s |
| Power Loss | 81W at rated current |
| Cold Resistance | 2.5mΩ |
| Dimensions | 442mm length, 67mm diameter |
| Weight | 3.7kg |
| Striker Force | 120N |
| Standards | DIN 43625, IEC 60282-1, IEC 60644, VDE 0670-4 |
Typical applications: Medium-voltage motor circuit protection in industrial switchgear, motor control systems and power installations requiring a DIN-style current-limiting Back-Up fuse.
Apexon Supply provides B2B sourcing and replacement support for SIBA 3010953.160, including technical alignment against current rating, voltage, fuse dimensions, protection class and striker configuration.
Send the MPN, required quantity and application requirements to request a B2B quote. Most qualified RFQs receive a response or quote within 12 hours.
