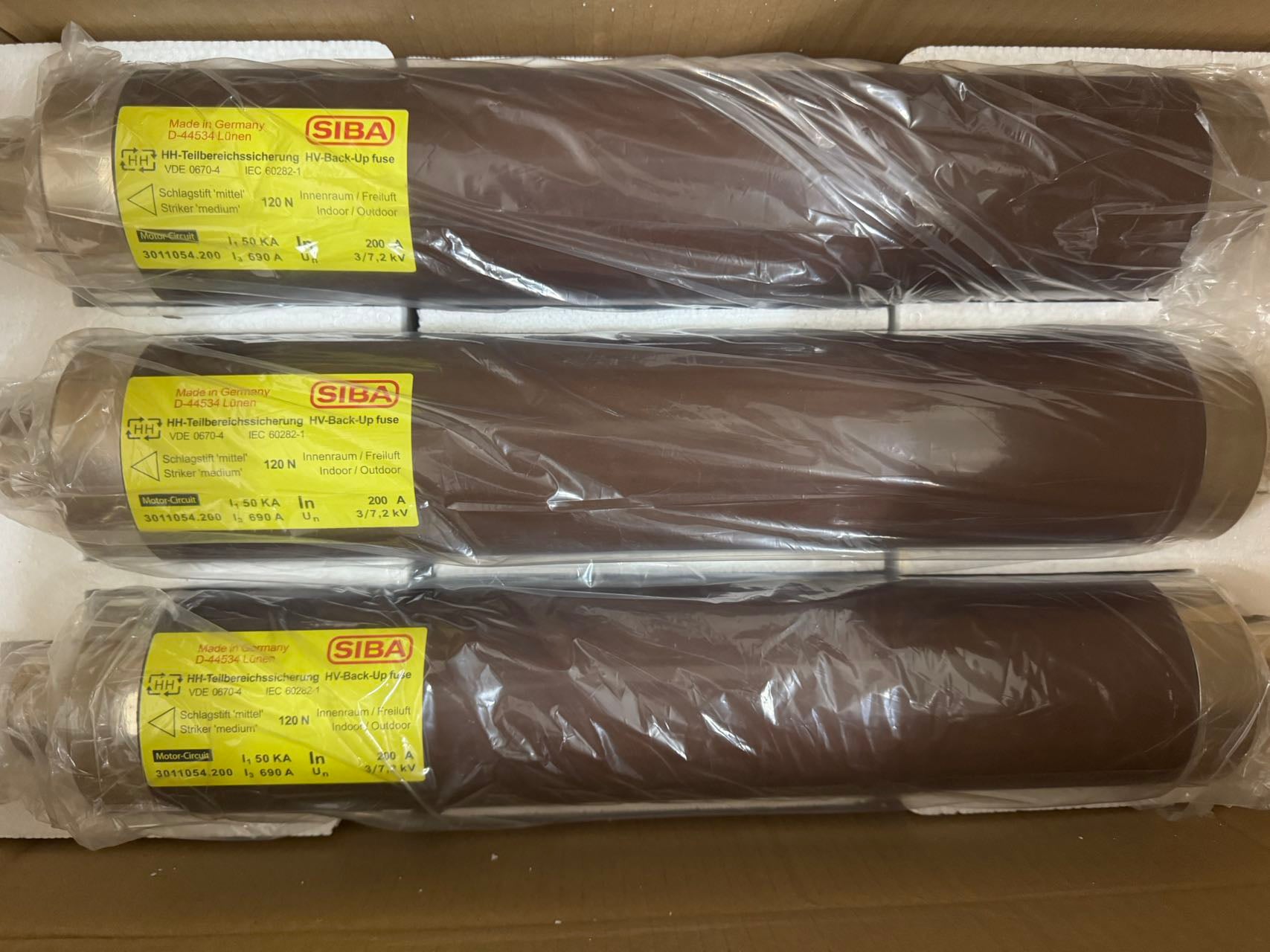

SIBA 3011054.200 HHDM-BM High Voltage Motor Fuse, 200A, 7.2kV
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
SIBA 3011054.200 is an HHDM-BM high voltage current-limiting Back-Up fuse rated at 200A and 7.2kV for motor circuit protection. It features a DIN-style configuration, a 442mm length and a 120N striker.
| Manufacturer Part Number | 3011054.200 |
| Series | HHDM-BM |
| Fuse Class | Current-Limiting Back-Up |
| Rated Current | 200A |
| Rated Voltage | 7.2kV |
| Rated Breaking Current | 50kA |
| Minimum Breaking Current | 690A |
| Pre-Arcing I²t | 121,000A²s |
| Total I²t at 0.87Un | 559,000A²s |
| Power Loss | 89W at rated current |
| Cold Resistance | 1.9mΩ |
| Dimensions | 442mm length, 85mm diameter |
| Weight | 5.7kg |
| Striker Force | 120N |
| Standards | DIN 43625, IEC 60282-1, IEC 60644, VDE 0670-4 |
Typical applications: Motor circuit protection in medium-voltage switchgear, industrial motor control systems and electrical power installations requiring a DIN-style current-limiting Back-Up fuse.
Apexon Supply provides B2B sourcing and replacement support for SIBA 3011054.200, including technical alignment against current rating, voltage, dimensions, fuse class and striker configuration.
Send the MPN, required quantity and application requirements to request a B2B quote. Most qualified RFQs receive a response or quote within 12 hours.
