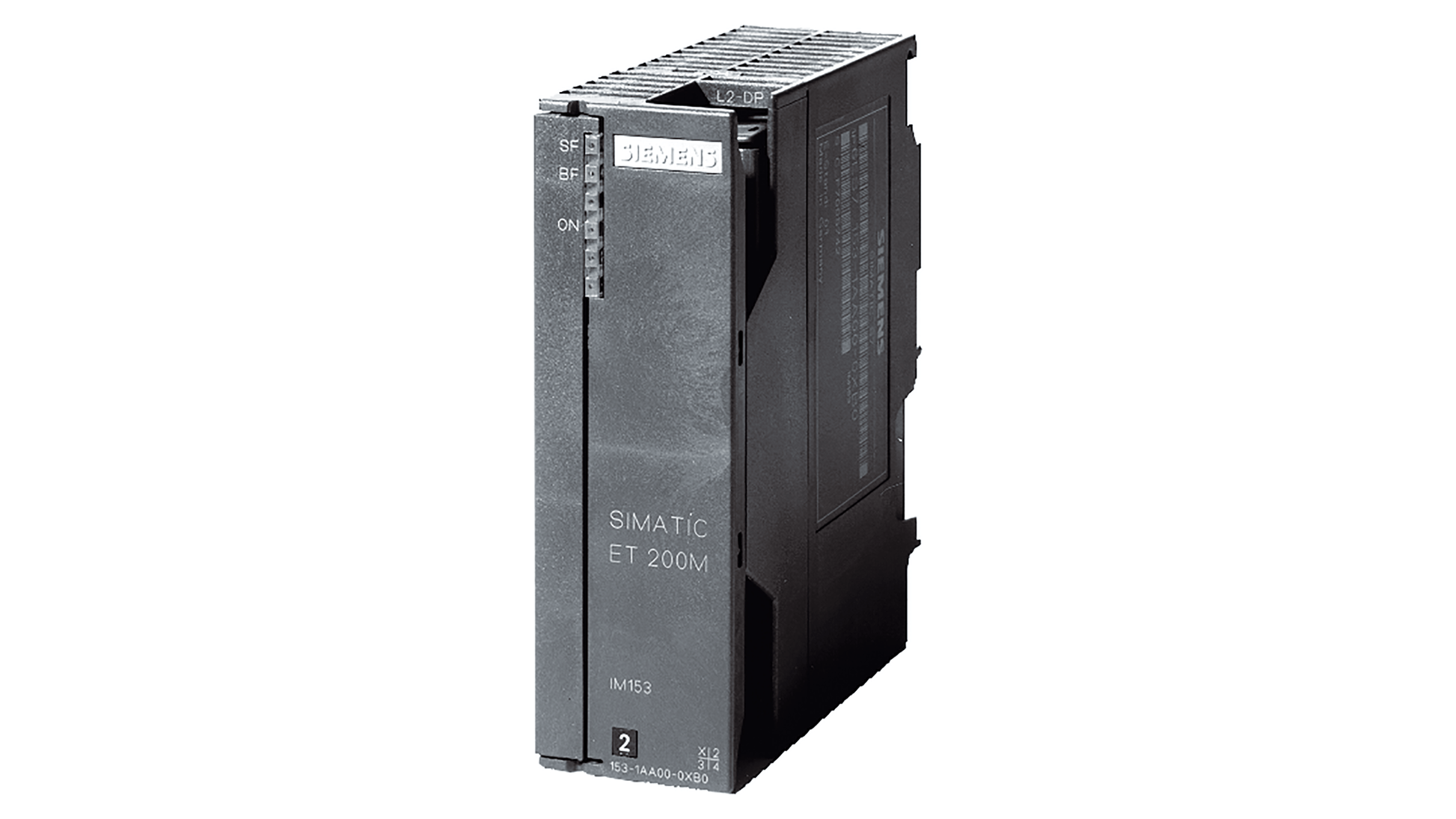

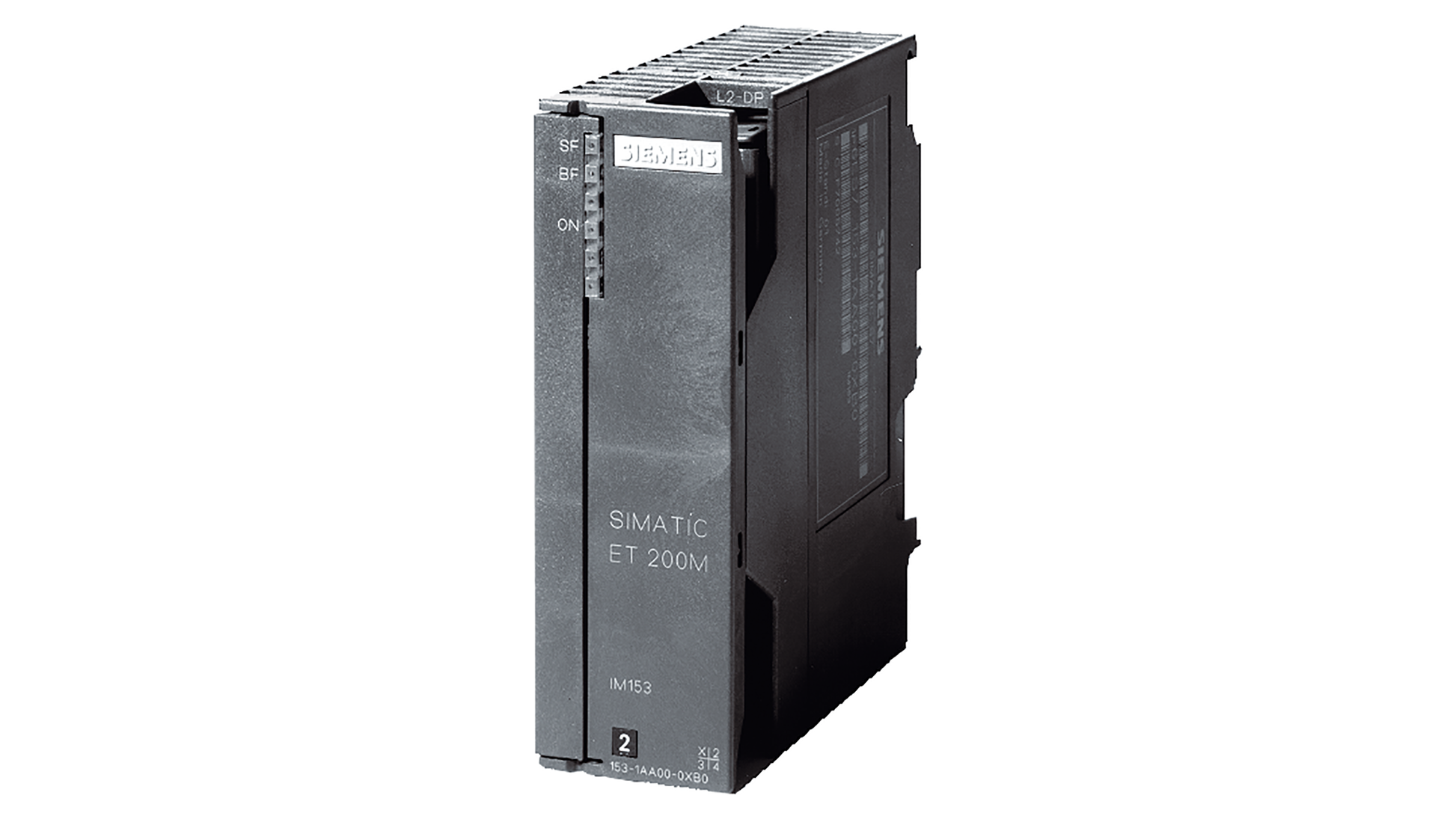

Siemens 6ES7153-2BA02-0XB0 ET200M Interface IM153-2 HF, Max. 12 S7-300 Modules, Redundancy Capable
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Siemens 6ES7153-2BA02-0XB0 is a SIMATIC ET 200M IM 153-2 High Feature interface module designed for high-availability distributed I/O systems. It supports up to 12 S7-300 modules per station and features integrated redundancy, isochrone mode, and extensive time-stamping capabilities. This industrial-grade module is optimized for PROFIBUS DP environments requiring precise signal synchronization and secondary variable operations via HART.
| Product ID (MPN) | 6ES7153-2BA02-0XB0 |
| Product Type Designation | IM 153-2 DP HF |
| Supply Voltage | 24 V DC (20.4 to 28.8 V DC) |
| Current Consumption (max.) | 600 mA |
| Power Loss (typ.) | 5.5 W |
| Transmission Rate (max.) | 12 Mbit/s |
| Interface Type | PROFIBUS DP (RS 485) |
| Connection Design | 9-pin Sub-D stub |
| Max. Modules per Station | 12 |
| Addressing Volume | 244 byte Inputs / 244 byte Outputs |
| Time Stamping Accuracy | 1 ms (up to 8 modules) |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 40 mm x 125 mm x 117 mm |
