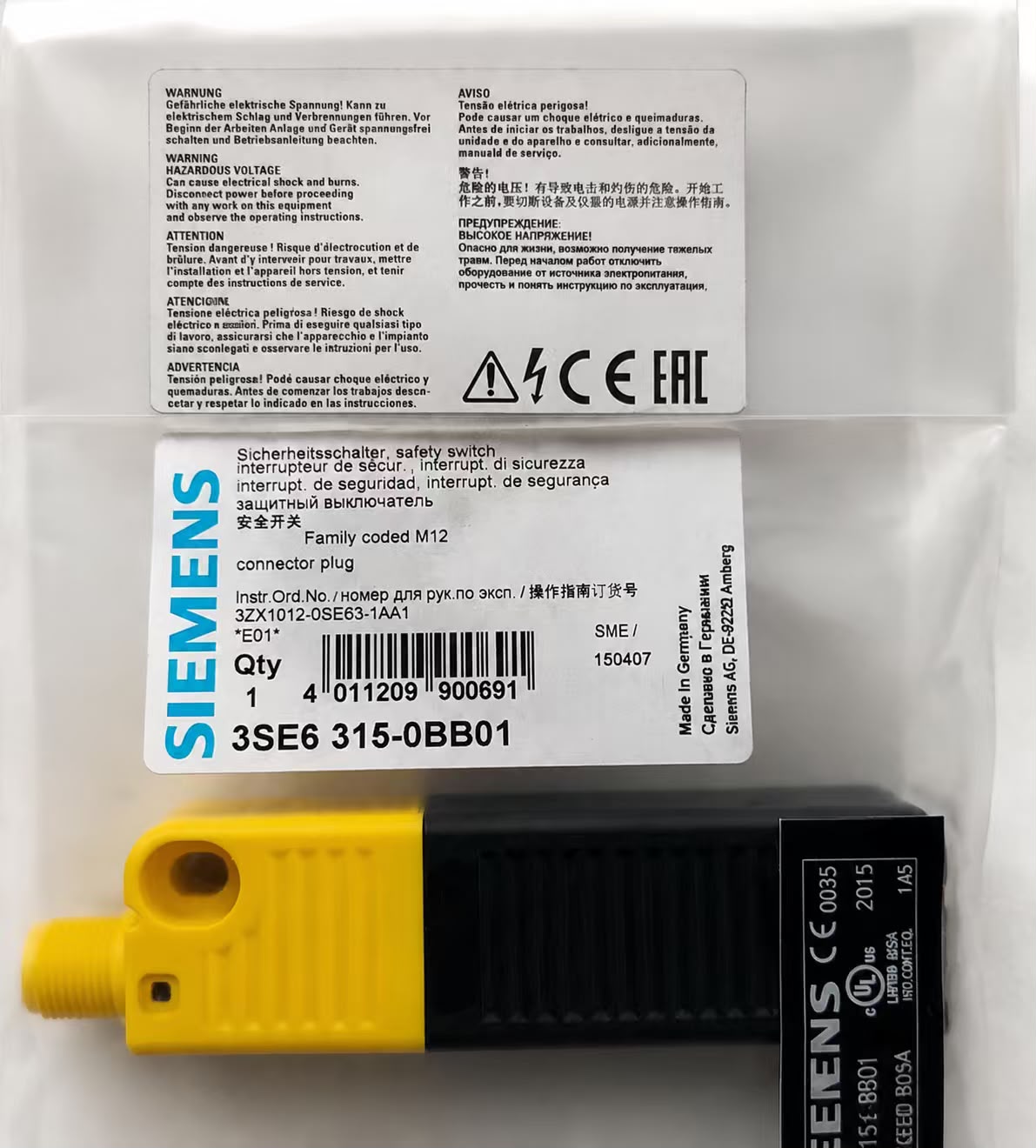

Siemens 3SE6315-0BB01 RFID Safety Switch, 24 V DC, M12 8-Pole
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Siemens 3SE6315-0BB01 is a family-coded non-contact RFID safety switch with an M12 8-pole connection. The switch has a rated operating voltage of 24 V DC, rated operating current of 0.6 A, and nominal operating distance of 12 mm.
| Article Number (Market Facing Number) | 3SE6315-0BB01 |
| Product Designation | RFID safety switch |
| Product Feature | Family coded without magnet latching |
| Rated Operating Voltage | 24 V DC -15% / +10% |
| Rated Operating Current | 0.6 A |
| Electrical Connection | M12 integrated connector, 8-way, A-coded |
| Nominal Operating Distance | 12 mm |
| Safe Operating Distance ON | 10 mm |
| Safe Operating Distance OFF | 16 mm |
| Degree of Protection | IP69K |
| Ambient Operating Temperature | -25 °C to +70 °C |
| Actuator | 3SE6310-0BC01, ordered separately |
Siemens documentation describes SIRIUS RFID safety switches for monitoring motion sequences or protective devices, including protective-door monitoring.
Apexon Supply provides B2B sourcing and replacement support for Siemens 3SE6315-0BB01, with technical alignment based on the required electrical, connection, and operating-distance parameters.
Submit Siemens 3SE6315-0BB01, required quantity, and application requirements for procurement review and RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
