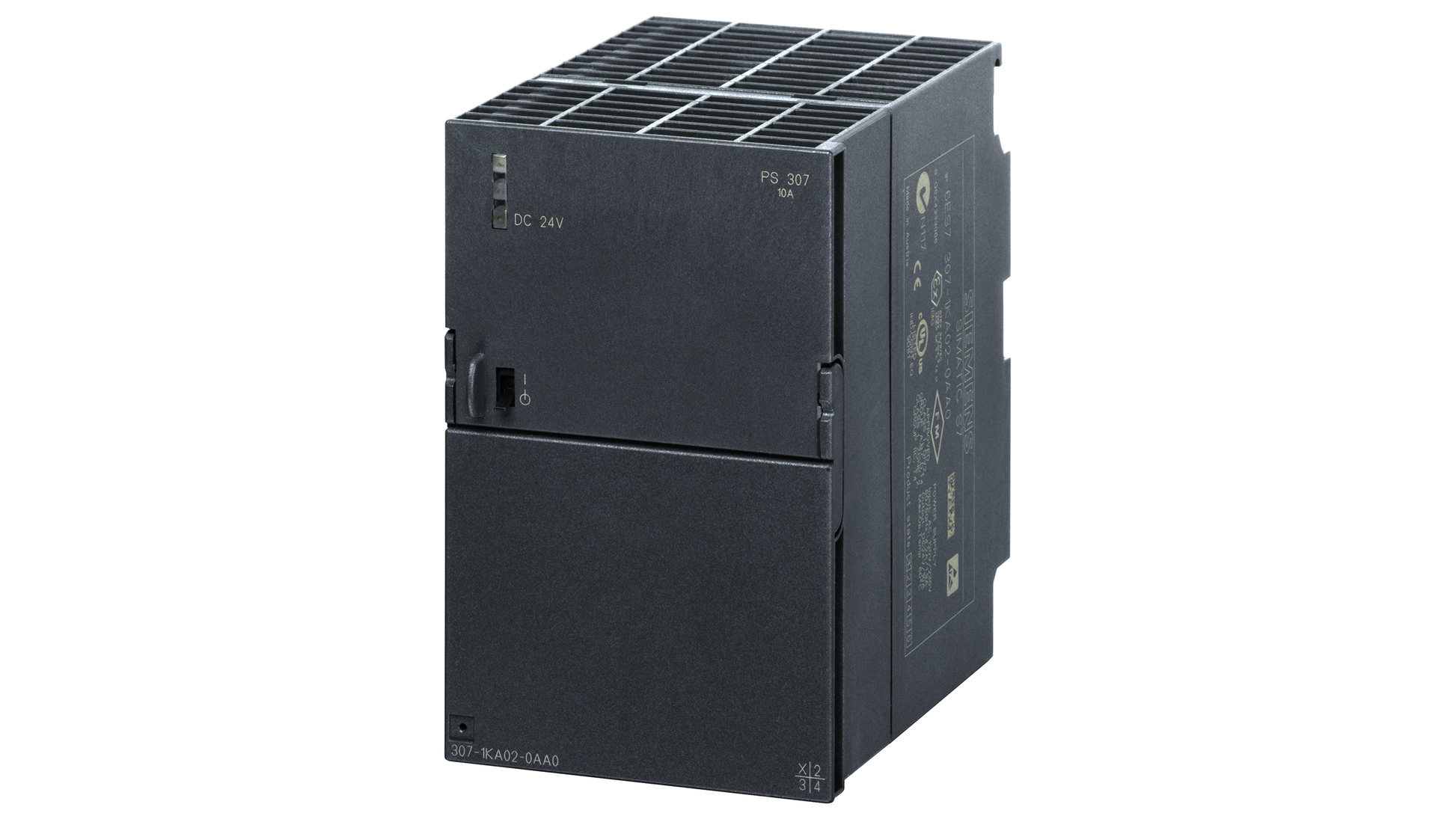

Siemens 6ES7307-1KA02-0AA0 SIMATIC PS307 Regulated Power Supply, 120/230V AC Input, 24V DC / 10A Output
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Siemens 6ES7307-1KA02-0AA0 is a high-capacity SIMATIC PS307 regulated power supply engineered for the S7-300 PLC system. Delivering a powerful 24V DC / 10A output with 90% efficiency, this unit features automatic range selection for 120/230V AC inputs and robust electronic short-circuit protection, ensuring a stable and reliable energy source for large-scale industrial automation architectures.
| Product ID (MPN) | 6ES7307-1KA02-0AA0 |
| Input Voltage | 1-phase AC, 120/230 V (Automatic range selection) |
| Mains Buffering | 20 ms (at rated load) |
| Output Voltage | 24 V DC (Controlled, isolated) |
| Output Current | 10 A (Rated value) |
| Active Power Typical | 240 W |
| Efficiency | 90 % |
| Dimensions (W x H x D) | 80 x 125 x 120 mm |
| Protection Rating | IP20 |
| Mounting Method | S7 rail mounting |
