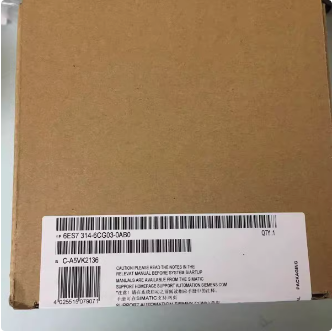

Siemens 6ES7314-6CG03-0AB0 SIMATIC S7-300 CPU 314C-2DP Compact Controller, 96KB Work Memory, 24 DI / 16 DO / 4 AI / 2 AO
Regular price
$550.00 USD
Regular price
Sale price
$550.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Siemens 6ES7314-6CG03-0AB0 is a versatile SIMATIC S7-300 CPU 314C-2DP compact controller designed for high-performance automation tasks requiring integrated I/O and motion capabilities. This unit features a 96KB work memory, 24 digital inputs, 16 digital outputs, and a comprehensive analog toolset (4AI/2AO), along with a high-speed PROFIBUS DP interface and four 60 kHz counters for precise technological functions.
| Product ID (MPN) | 6ES7314-6CG03-0AB0 |
| Work Memory | 96 Kbyte (integrated) |
| Processing Time | 0.1 µs (Bit operations) / 0.2 µs (Word operations) |
| Digital Inputs/Outputs | 24 DI (24V DC) / 16 DO (0.5A) |
| Analog Inputs/Outputs | 4 AI (U/I) + 1 Pt100 / 2 AO (U/I) |
| Technological Functions | 4 High-speed counters (60 kHz), 4 pulse outputs (2.5 kHz) |
| Communication Interfaces | 1x MPI (187.5 kbit/s), 1x PROFIBUS DP Master/Slave (12 Mbit/s) |
| Rated Supply Voltage | 24 V DC (20.4 to 28.8 V DC) |
| Required Accessories | Micro Memory Card (MMC), 2x 40-pin Front Connectors |
| Dimensions (W x H x D) | 120 x 125 x 130 mm |
| Weight | Approx. 676 g |
