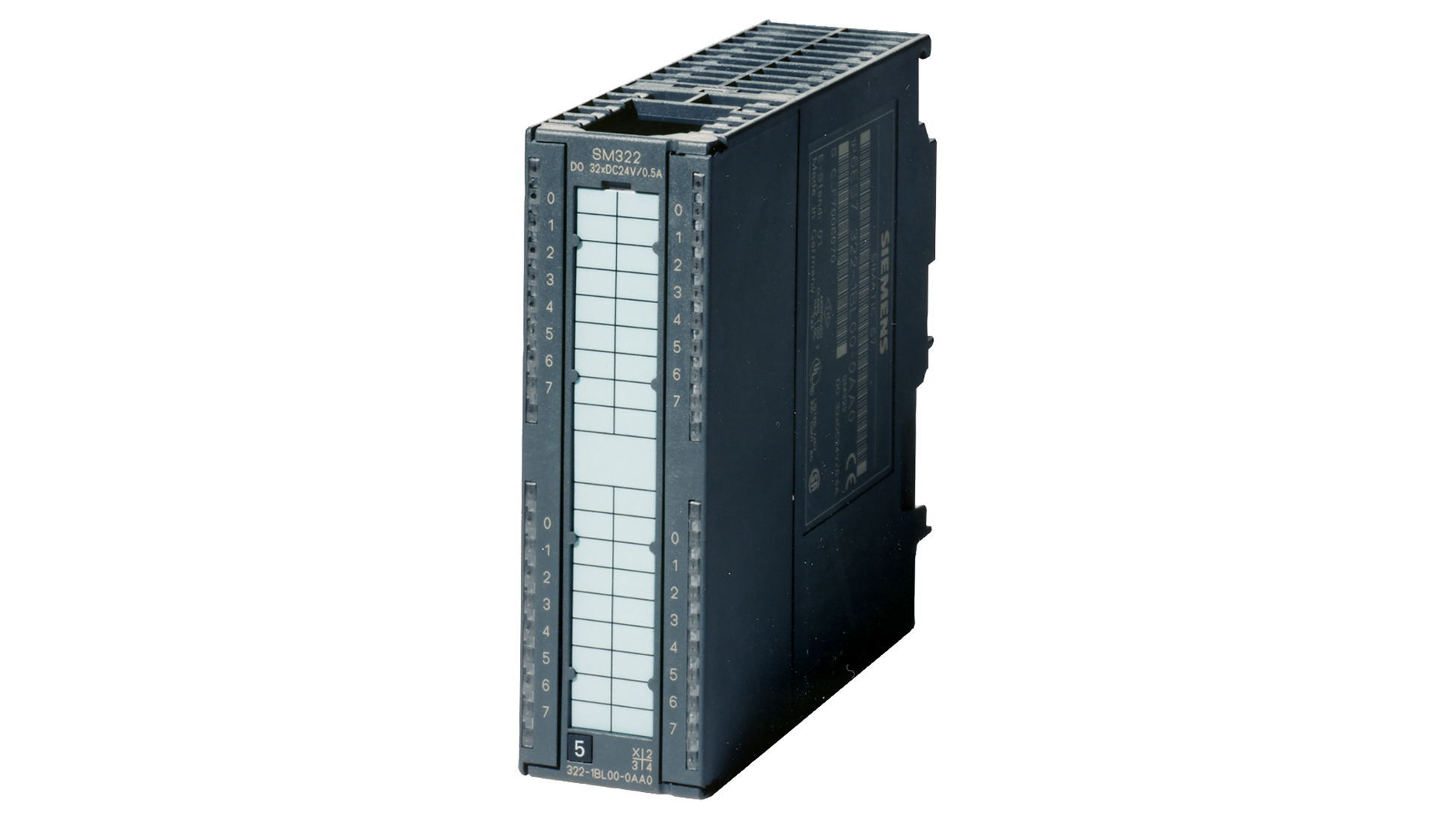

Siemens 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output SM 322 Module, 32 DO, 24V DC / 0.5A, 40-pin
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Siemens 6ES7322-1BL00-0AA0 is a high-density SIMATIC S7-300 digital output module (SM 322) designed for efficient control of large-scale industrial actuator arrays. This isolated 32-channel module provides 0.5A per output at 24V DC, featuring integrated electronic short-circuit protection and optocoupler potential separation to ensure maximum reliability and space-saving integration in enterprise PLC architectures.
| Product ID (MPN) | 6ES7322-1BL00-0AA0 |
| Number of Digital Outputs | 32 |
| Rated Load Voltage (DC) | 24 V (Permissible range 20.4 V to 28.8 V) |
| Output Current (Rated) | 0.5 A per channel |
| Total Current / Group | 4 A (Groups of 8) / 16 A per module |
| Short-circuit Protection | Yes; Electronic (Threshold 1 A) |
| Switching Frequency | 100 Hz (Resistive) / 0.5 Hz (Inductive) |
| Potential Separation | Yes; via Optocoupler |
| Isolation Tested With | 500 V DC |
| Required Front Connector | 40-pin |
| Dimensions (W x H x D) | 40 x 125 x 120 mm |
