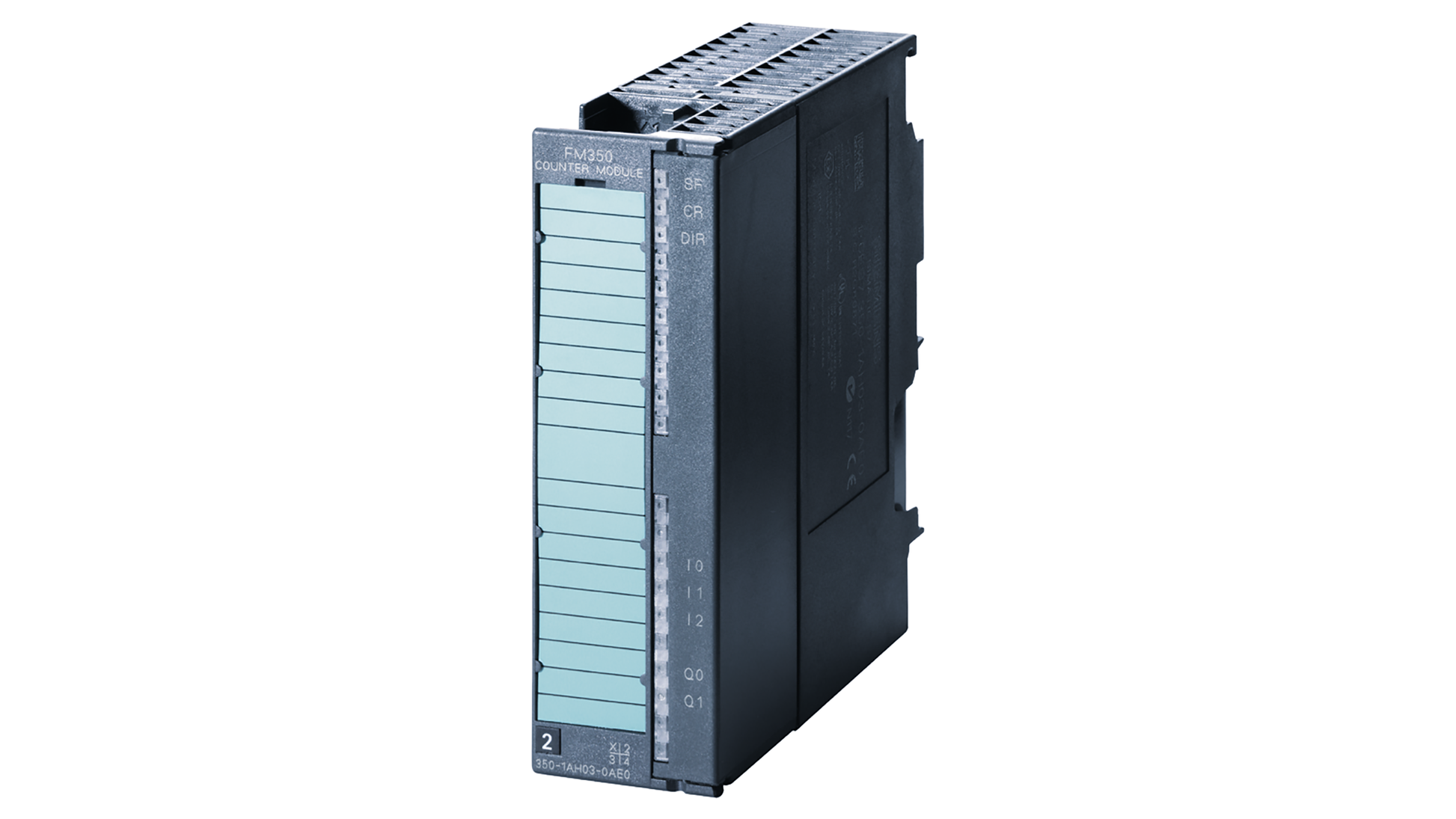

Siemens 6ES7350-1AH03-0AE0 SIMATIC S7-300 FM 350-1 Counter Module, 1 Channel, 500 kHz, 5V/24V Incremental Encoder
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Siemens 6ES7350-1AH03-0AE0 is a high-speed SIMATIC S7-300 FM 350-1 counter module designed for precision industrial positioning and frequency measurement. This single-channel module supports counting frequencies up to 500 kHz for 5V (RS 422) and 24V incremental encoders, featuring integrated isochronous mode and flexible 32-bit counting ranges to ensure high-accuracy feedback in enterprise automation systems.
| Product ID (MPN) | 6ES7350-1AH03-0AE0 |
| Number of Channels | 1; 32 bit or ±31 bit |
| Max. Counting Frequency | 500 kHz (5V RS 422) / 200 kHz (24V) |
| Encoder Signal Types | Incremental (Symmetrical/Asymmetrical), 24V Initiator |
| Digital Inputs / Outputs | 3 Inputs (Gate/Set) / 2 Outputs (0.5A) |
| Supply Voltage | 24 V DC (20.4 V to 28.8 V) |
| Potential Separation | Yes; via Optocoupler |
| Required Front Connector | 1x 20-pin |
| Dimensions (W x H x D) | 40 x 125 x 120 mm |
| Weight | Approx. 250 g |
