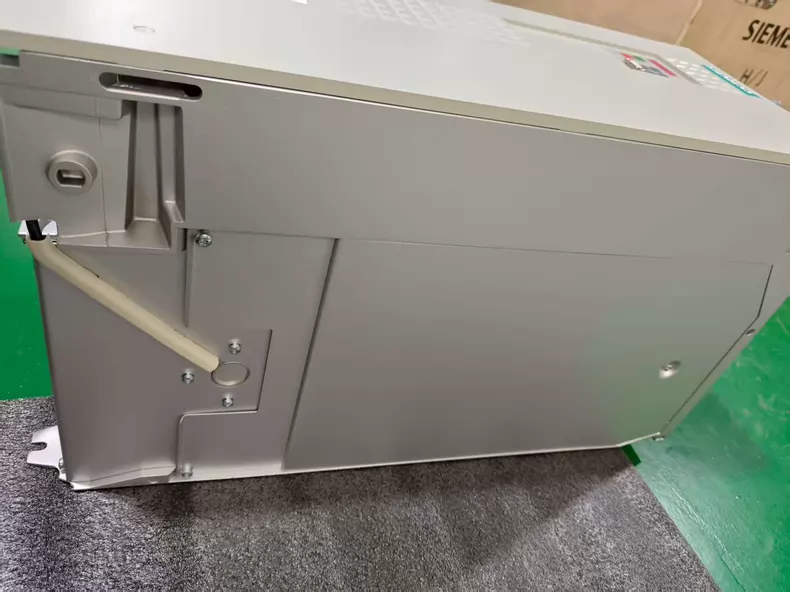

Siemens 6SE7024-7ED61 Vector Control AC Drive, 22kW, 380–480V AC
Regular price
$2,200.00 USD
Regular price
Sale price
$2,200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

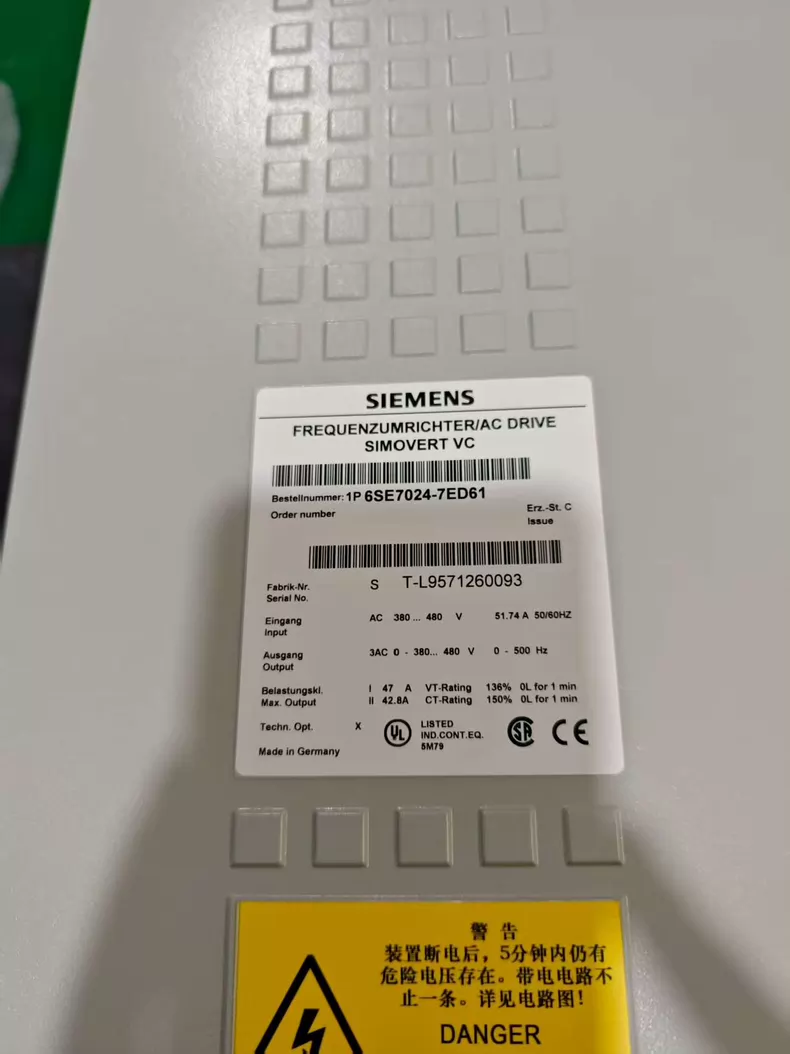

The Siemens 6SE7024-7ED61 is a SIMOVERT MASTERDRIVES vector control AC drive with a nominal power rating of 22 kW for a 380–480 V three-phase AC supply. Its nameplate specifies separate variable-torque and constant-torque output ratings.
| Order Number | 6SE7024-7ED61 |
| Series | SIMOVERT MASTERDRIVES Vector Control (VC) |
| Nominal Power Rating | 22 kW |
| Supply Voltage | 380–480 V AC, three-phase |
| Input Current | 51.74 A |
| Supply Frequency | 50/60 Hz |
| Output Voltage | Three-phase AC, 0–380/480 V |
| Output Frequency | 0–500 Hz |
| Load Class I — Variable Torque | 47 A; 136% overload for 1 minute |
| Load Class II — Constant Torque | 42.8 A; 150% overload for 1 minute |
Contact Apexon Supply for B2B sourcing and replacement support. Provide the existing drive nameplate, motor data, load requirements, and installed option details to support selection and compatibility review.
Request a quote for Siemens 6SE7024-7ED61. Include your required quantity, destination, and documentation or inspection requirements.
