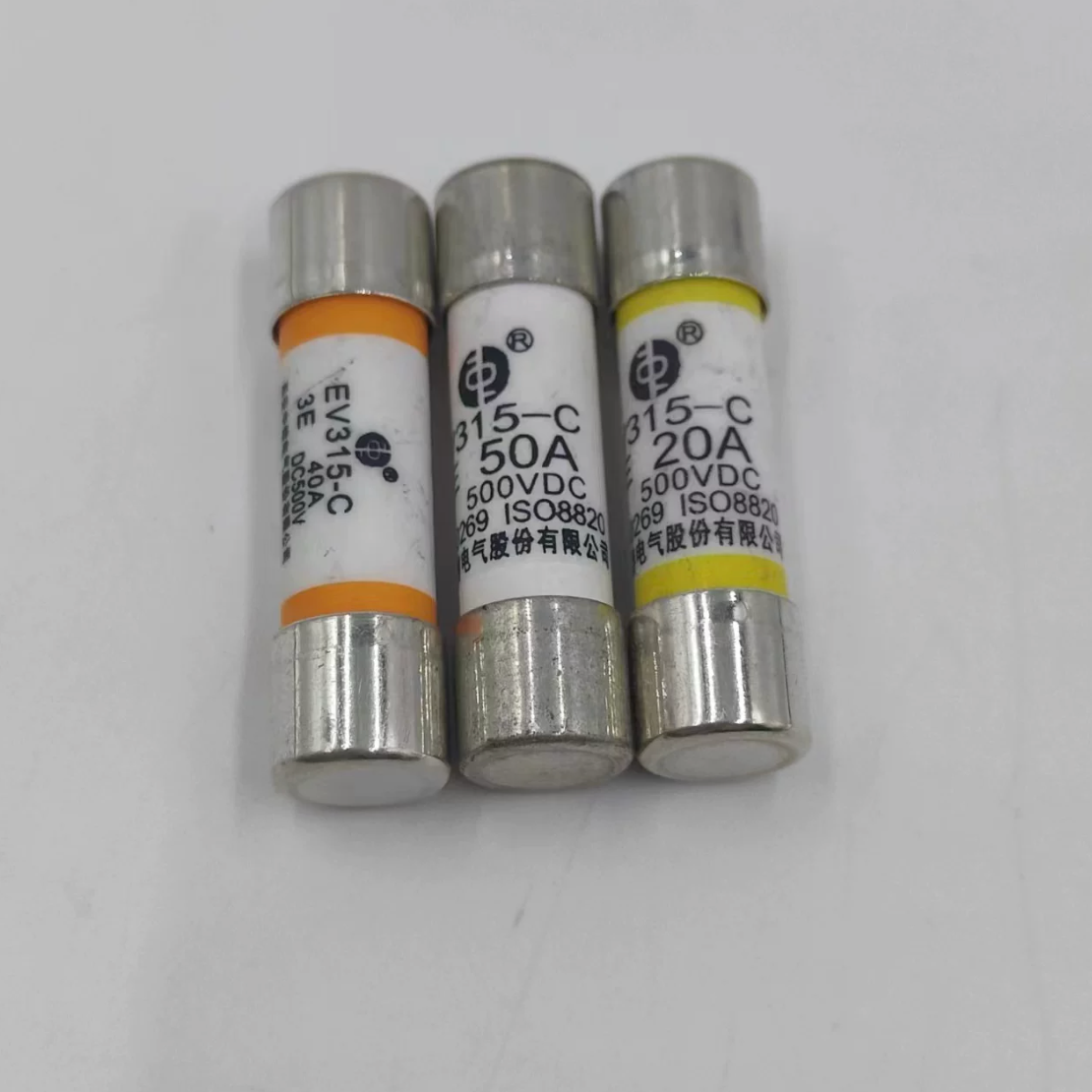

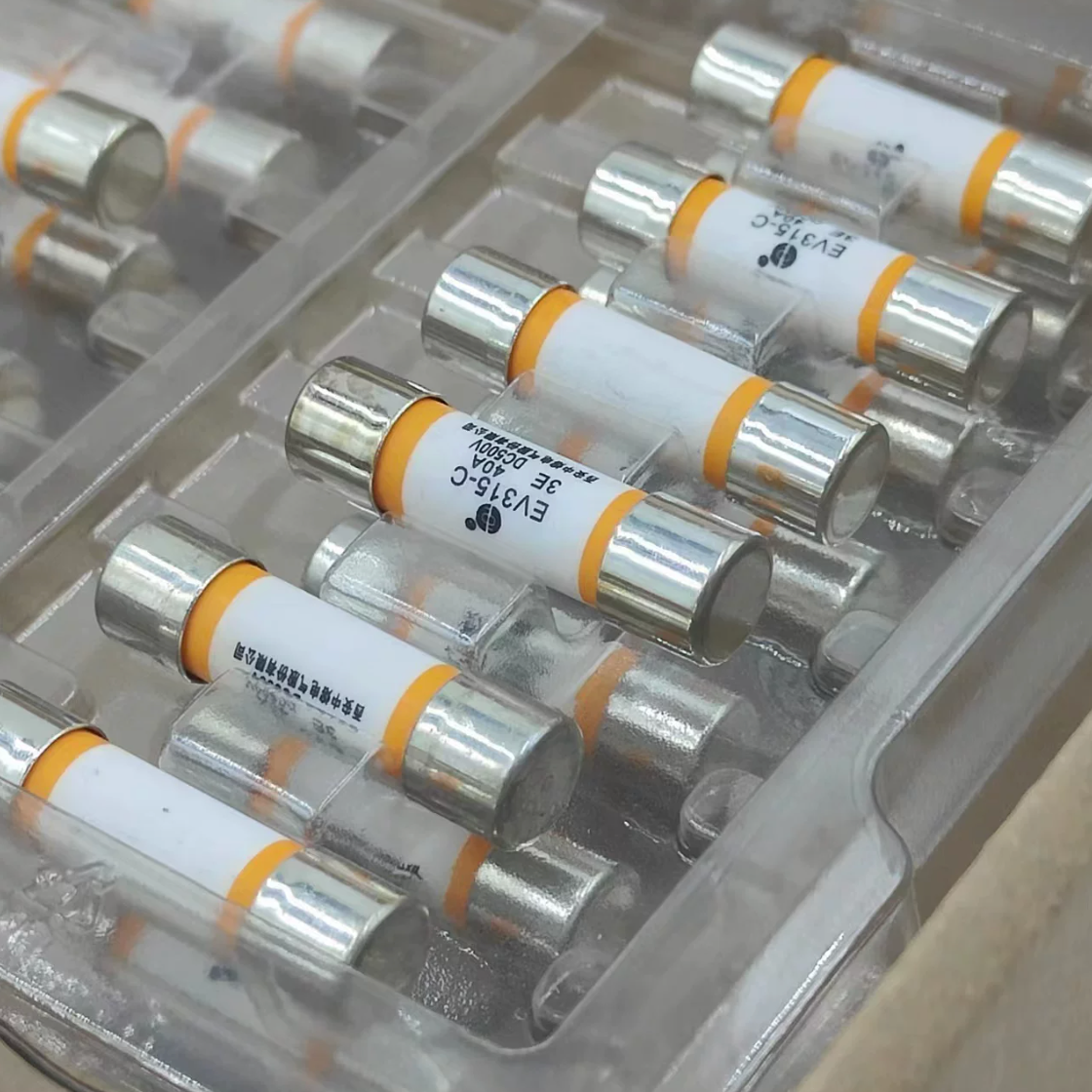

Sinofuse EV315-C-3E40A Electric Vehicle Fuse, 40A 500V DC, Cylindrical High-Speed Protection
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sinofuse EV315-C-3E40A is a high-performance 40A 500VDC electric vehicle fuse engineered for the rigorous protection requirements of EV drive power systems and energy storage applications. Featuring a compact 10x38mm cylindrical ferrule design, this high-speed fuse provides reliable short-circuit and overload backup protection for power conversion systems, frequency controllers, and charging infrastructure.
| Product ID (MPN) | EV315-C-3E40A |
| Rated Current | 40A |
| Rated Voltage | 500VDC |
| Breaking Capacity | 10kA (Time Constant: 2±0.5ms) |
| Pre-arcing I2t | 419 A²s |
| Clearing I2t | 1424 A²s |
| Power Dissipation | 8.2W |
| Size Code | C-3E (10x38mm) |
| Dimensions | Length: 38.0±0.6mm, Diameter: 10.3mm |
| Installation | Cylindrical Cap Structure |
| Color Code | Orange |
| Compliance | RoHS Compliant |
