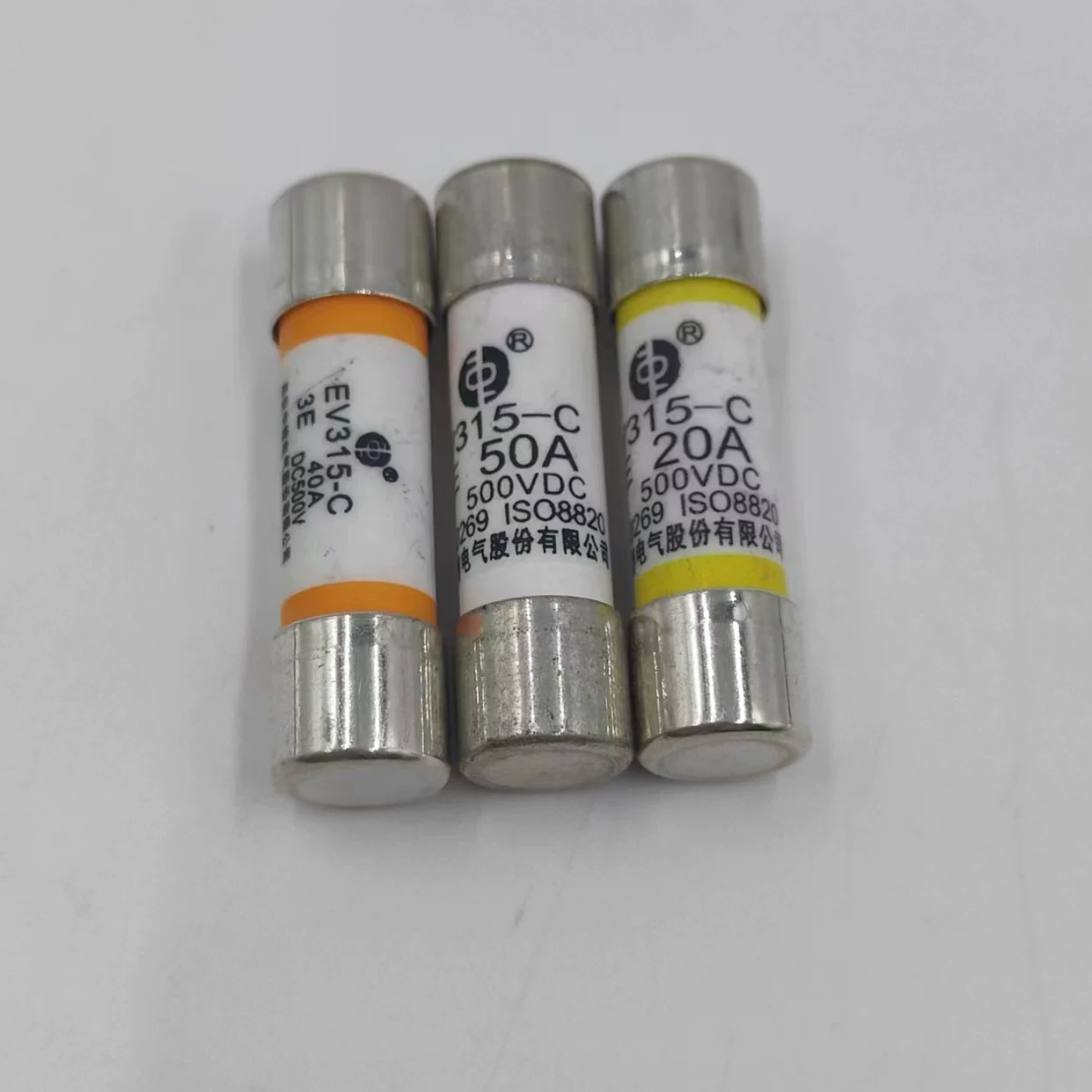

Sinofuse EV315-C-3E20A EV315 Series Electric Vehicle Fuse, 20A, 500VDC, 10x38mm Ferrule
Regular price
$12.00 USD
Regular price
Sale price
$12.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sinofuse EV315-C-3E20A is a high-performance 20A 500VDC electric vehicle fuse designed for the protection of EV drive power systems, energy storage batteries, and power conversion units. This high-speed fuse features a 10x38mm cylindrical ferrule design, providing superior short-circuit and overload protection in a compact form factor compliant with RoHS standards.
| Product ID (MPN) | EV315-C-3E20A |
| Rated Current | 20A |
| Rated Voltage | 500VDC |
| Rated Breaking Capacity | 10kA (Time Constant: 2±0.5ms) |
| Pre-arcing I2t | 85 A²s |
| Clearing I2t | 288 A²s |
| Power Dissipation | 4.8W |
| Size Code | C-3E (10x38mm) |
| Dimensions | Length: 38.0±0.6mm, Tube Diameter: 10.3mm |
| Installation Structure | Cylindrical Cap Structure |
| Color Code | Yellow |
