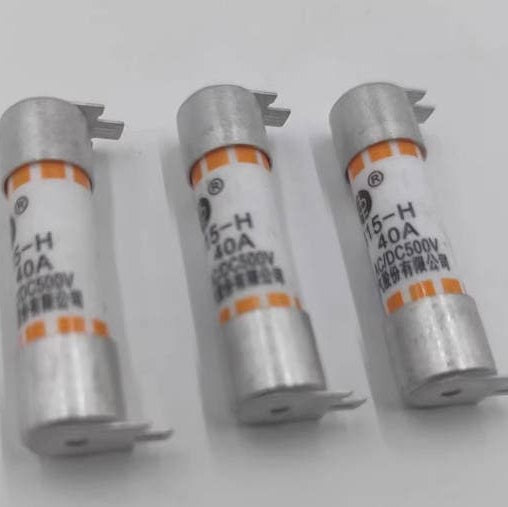

Sinofuse EV315-H-3EB40A EV315 High-Speed Automotive Fuse, 40A, 500V AC/DC
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sinofuse EV315-H-3EB40A is a high-performance automotive-grade high-speed fuse engineered for the rigorous protection requirements of electric vehicle (EV) and hybrid electric vehicle (HEV) power systems. Compliant with ISO8820 and JASO D622 standards, this 40A fuse provides reliable overcurrent protection for energy storage batteries and power conversion equipment with a high breaking capacity of 20kA.
| Product ID (MPN) | EV315-H-3EB40A |
| Current Rating | 40A |
| Voltage Rating | 500V DC / 500V AC |
| Interrupting Rating | 20kA (DC 20.6kA @ L/R=2.63ms) |
| Pre-arcing I²t | 748 A²s |
| Total Clearing I²t | 2306 A²s (at 520V DC) |
| Power Dissipation | 8W |
| Mounting Type | Single pin plug-in (H-3EB) |
| Body Dimensions | Ø 10.3 mm x 39.0 mm Length |
| Color Code | Orange (40A) |
| Standards | ISO8820, JASO D622, GB/T31465, RoHS |
