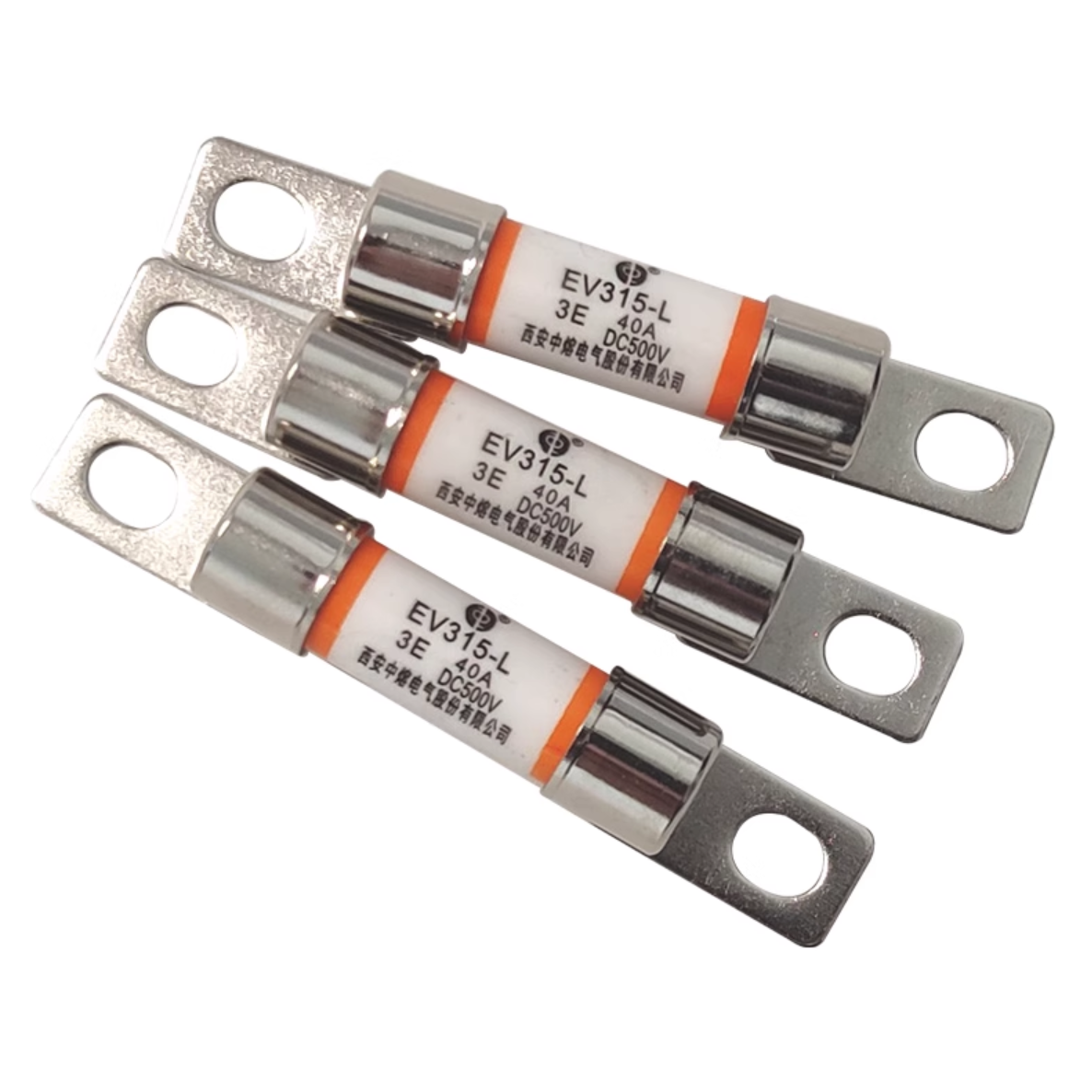

Sinofuse EV315-L-3E10A EV315 Bolt Mount Fuse, 500VDC, 10kA
Regular price
$8.00 USD
Regular price
Sale price
$8.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Sinofuse EV315-L-3E10A is a bolt-mounted fuse designed for road-vehicle DC power circuits up to 500 V. Built to JASO D622 and ISO8820 standards, it delivers reliable short-circuit and overload protection for EV drive systems, battery packs and power converters. The L-3E variant features bottom M5 bolt terminals, low power dissipation and a high 10 kA breaking capacity.
- 500 V DC rated voltage
- 10 A rated current
- High breaking capacity 10 kA (t = 2 ±0.5 ms)
- I²t (pre-arcing) 19 A²s
- RoHS compliant, vibration & shock tested
- M5 bolt mounting, recommended torque 4 N·m
| Product ID | EV315-L-3E10A |
| Series | EV315 |
| Fuse Type | Bolt connection, L-3E bottom-bolt |
| Rated Voltage | 500 V DC |
| Rated Current | 10 A |
| Breaking Capacity | 10 kA (time constant 2 ±0.5 ms) |
| I²t Pre-arcing | 19 A²s |
| I²t Melting | 64 A²s |
| Power Dissipation | 2.5 W |
| Mounting Bolt Size | M5 |
| Recommended Torque | 4.0 ±0.8 N·m |
| Overall Length | 65 ±1.5 mm |
| Body Length | 54.4 ±1.5 mm |
| Mounting Centre Distance | 38 ±1 mm |
| Mounting Hole Ø | 10.3 mm |
| Operating Temp. Range | -40 °C … +125 °C |
| Compliance Standards | JASO D622, ISO8820, GB/T31465 |
| RoHS | Compliant |
| Color Code | Red |
