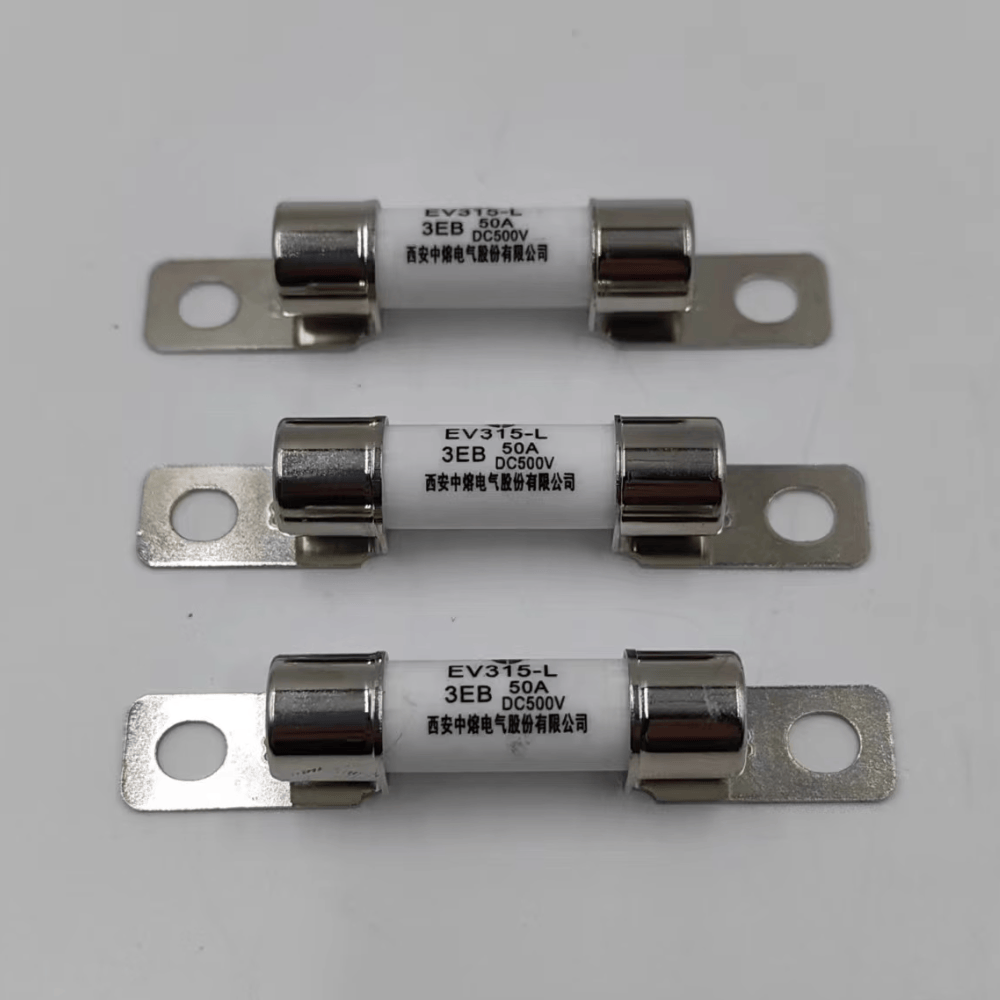

Sinofuse EV315-L-3E50A EV315 Bolt Mount Fuse, 500VDC, 50A
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Sinofuse EV315-L-3E50A is a bolt-mounted fuse from the EV315 series, engineered for 500 V DC electric-vehicle and industrial power circuits. The L-3E bottom-bolt design ensures secure installation in high-vibration environments while delivering a high 10 kA DC breaking capacity for dependable short-circuit and overload protection.
- Rated voltage: 500 V DC
- Rated current: 50 A
- High DC breaking capacity: 10 kA (time constant 2 ± 0.5 ms)
- M5 bolt mounting, recommended tightening torque 4 N·m
- Operating temperature range −40 °C … +125 °C
- Complies with JASO D622, ISO 8820, GB/T 31465; RoHS compliant
| Product ID | EV315-L-3E50A |
| Series | EV315 |
| Fuse Type | Bolt connection, L-3E bottom-bolt |
| Rated Voltage | 500 V DC |
| Rated Current | 50 A |
| Breaking Capacity | 10 kA DC (t = 2 ± 0.5 ms) |
| Mounting Bolt Size | M5 |
| Recommended Torque | 4 ± 0.8 N·m |
| Overall Length | 65 ± 1.5 mm |
| Body Length | 54.4 ± 1.5 mm |
| Mounting Centre Distance | 38 ± 1 mm |
| Mounting Hole Ø | 10.3 mm |
| Operating Temp. Range | −40 °C … +125 °C |
| Compliance Standards | JASO D622, ISO 8820, GB/T 31465 |
| RoHS | Compliant |
