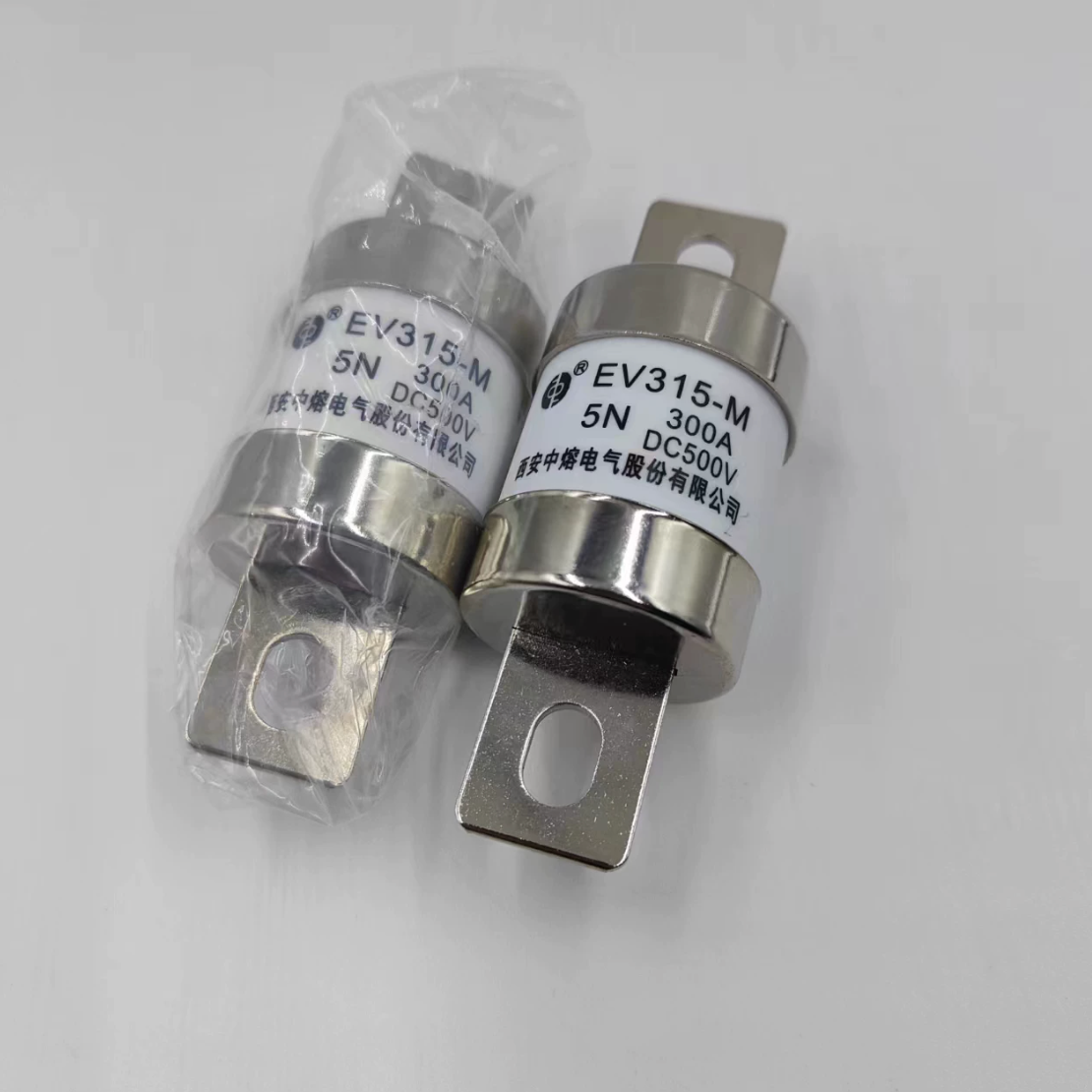

Sinofuse EV315-M-5N315A EV315 Series Bolt-Mounted Automotive Fuse, 500 VDC, 315 A
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sinofuse EV315-M-5N315A is a bolt-mounted DC fuse for road vehicle electrical systems, including electric vehicle drive power systems, power conversion systems, energy storage systems, traction batteries, chargers, and vehicle wiring protection. This EV315 Series M-5N fuse provides short-circuit, overload, and backup protection with verified 500 VDC and 315 A ratings for technical procurement and MRO sourcing.
| Product ID (MPN) | EV315-M-5N315A |
| Series | EV315 |
| Product Category | Bolt-Mounted Automotive DC Fuse |
| Rated Voltage | 500 VDC |
| Rated Current | 315 A |
| Breaking Capacity | 20 kA for 100 A to 500 A ratings |
| Time Constant | 2 ± 0.5 ms |
| Pre-Arcing I²t | 28,537 A²s |
| Total Clearing I²t | 74,617 A²s |
| Power Loss | 56 W |
| Size Code | M-5N |
| Connection Structure | Middle bolt connection structure |
| Mounting Bolt | M10 |
| Recommended Torque | 21 N·m |
| Overall Length | 103 ± 2 mm |
| Body Diameter | 37.8 ± 0.5 mm |
| Terminal Thickness | 2.4 ± 0.2 mm |
| Normal Ambient Temperature | -5°C to 40°C |
| Allowable Ambient Temperature | -40°C to 120°C |
| Reference Standards | Performance reference JASO D622; environmental reliability conforms to ISO 8820, JASO D622, and GB/T 31465 |
| Compliance | RoHS compliant |
| Recommended Continuous Current | Not greater than 80% of rated current |
