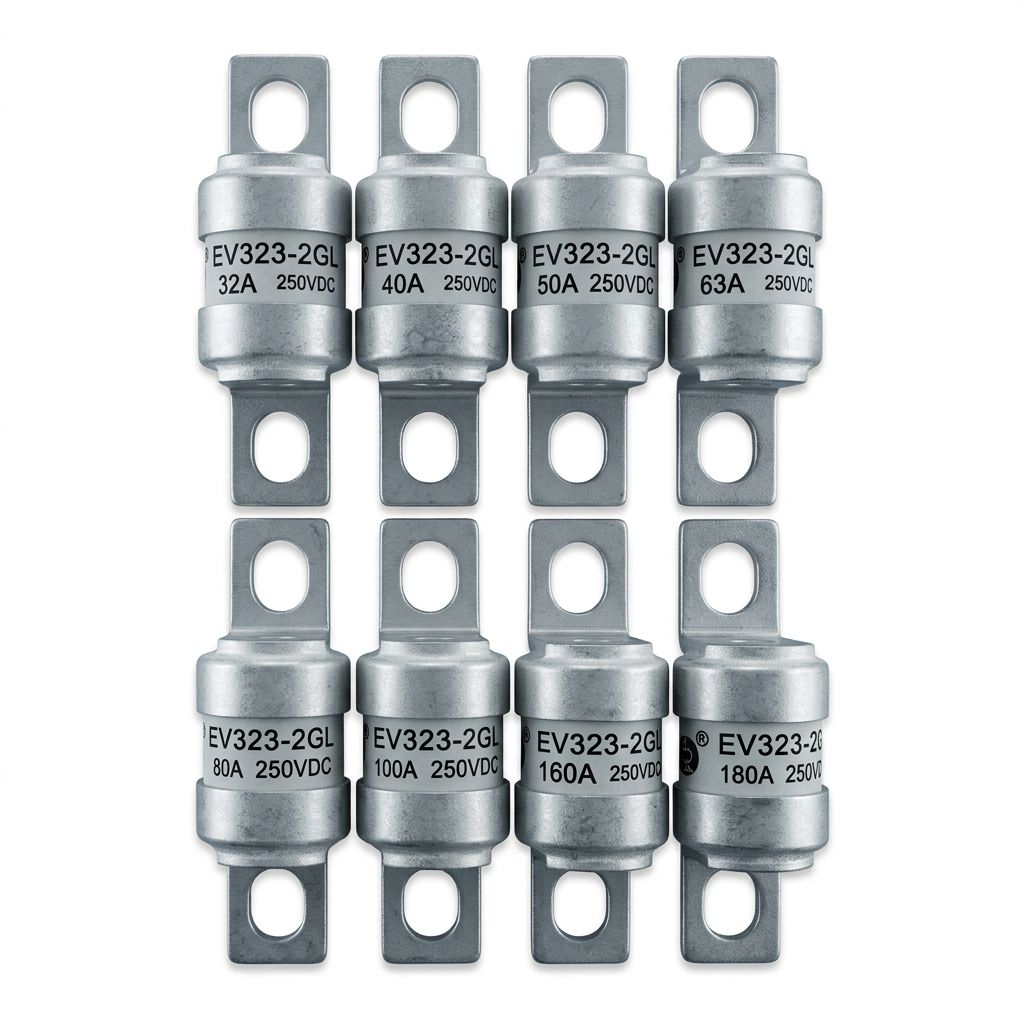

SINOFUSE EV323-2GL125A EV323-2GL Series DC Fuse, 125A, 250VDC
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE EV323-2GL125A is a high-speed DC fuse engineered for electric vehicle drive systems, energy storage, power conversion, and charging infrastructure. It provides precise short-circuit and overload protection with a rated voltage of 250VDC and an impressive 30kA breaking capacity. The compact 2GL form factor with M6 bolted terminals ensures reliable, low-loss integration in demanding industrial applications.
| Product ID (MPN) | EV323-2GL125A |
| Rated Voltage | 250 VDC |
| Rated Breaking Capacity | 30 kA (Time Constant: L/R ≤ 7 ms) |
| Rated Current | 125 A |
| Pre‑arcing I²t | 2821 A²s |
| Clearing I²t | 14184.5 A²s |
| Power Dissipation | 16 W |
| Size Code | 2GL |
| Overall Length | 56 ± 2 mm |
| Mounting Pitch | 41 ± 3 mm |
| Installation | Bottom‑out bolted structure, M6 threads, recommended tightening torque 6 N·m |
| Applications | EV drive power systems, energy storage, power conversion, frequency converters, chargers – short‑circuit, overload and backup protection |
| Compliance | RoHS |
