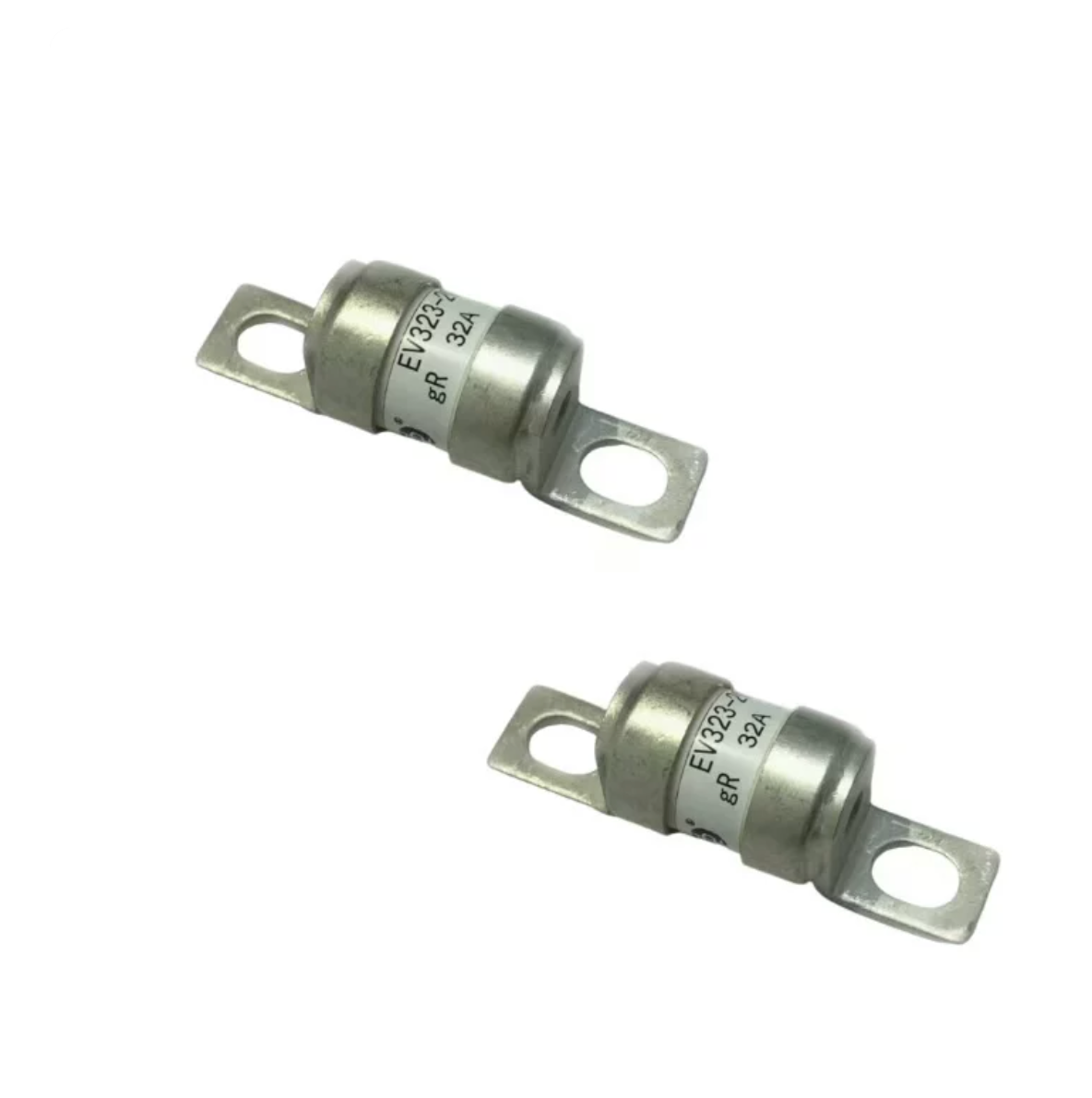

Sinofuse EV323-2GL32A EV323-2GL DC Automotive Fuse, 32A, 250VDC
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sinofuse EV323-2GL32A is a compact, high‑performance DC automotive fuse designed for 250VDC systems and rated to break 30kA. Optimized for electric vehicle drive power, energy storage, and power conversion applications, it provides reliable short‑circuit and overload protection with low power dissipation. Its bottom‑out bolted M6 connection and RoHS compliance ensure easy integration into demanding automotive and industrial environments.
| Product ID (MPN) | EV323-2GL32A |
| Rated Voltage | 250 VDC |
| Rated Current | 32 A |
| Size Code | 2GL |
| Overall Length | 56±2 mm |
| Mounting Pitch | 41±3 mm |
| Rated Breaking Capacity | 30 kA (Time Constant: L/R ≤7 ms) |
| Pre‑arcing I²t | 99 A²s |
| Clearing I²t | 499 A²s |
| Power Dissipation | 4.5 W |
| Installation | Bottom Out Bolted Structure M6, Recommended Torque: 6 N·m |
| Applications & Compliance | Electric Vehicle Drive Power Systems, Power Conversion Systems, Energy Storage and Power Batteries, Energy Storage Capacitors, Frequency Conversion Controllers, Chargers. Short‑circuit, overload and backup protection. RoHS Compliant. |
