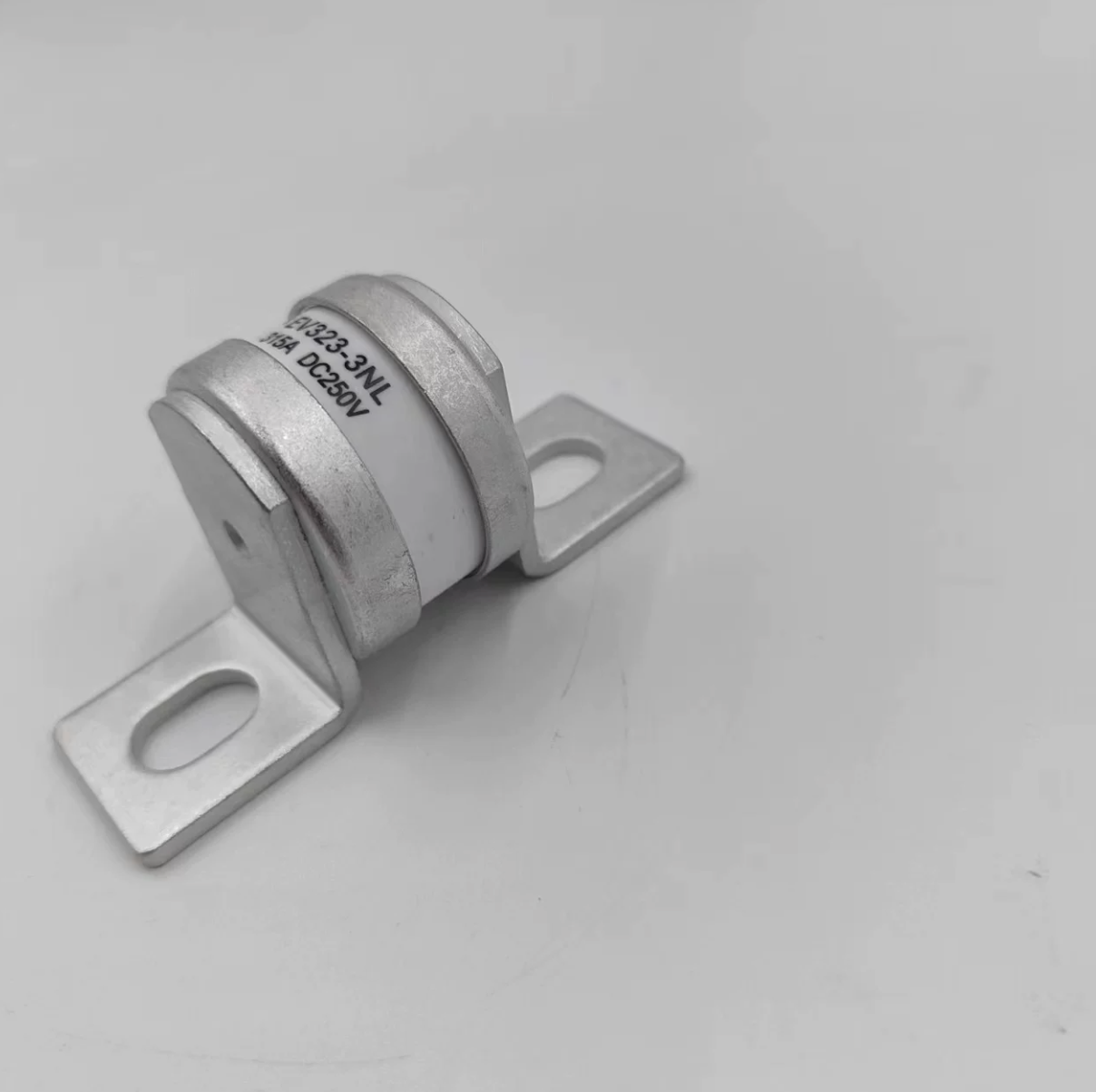

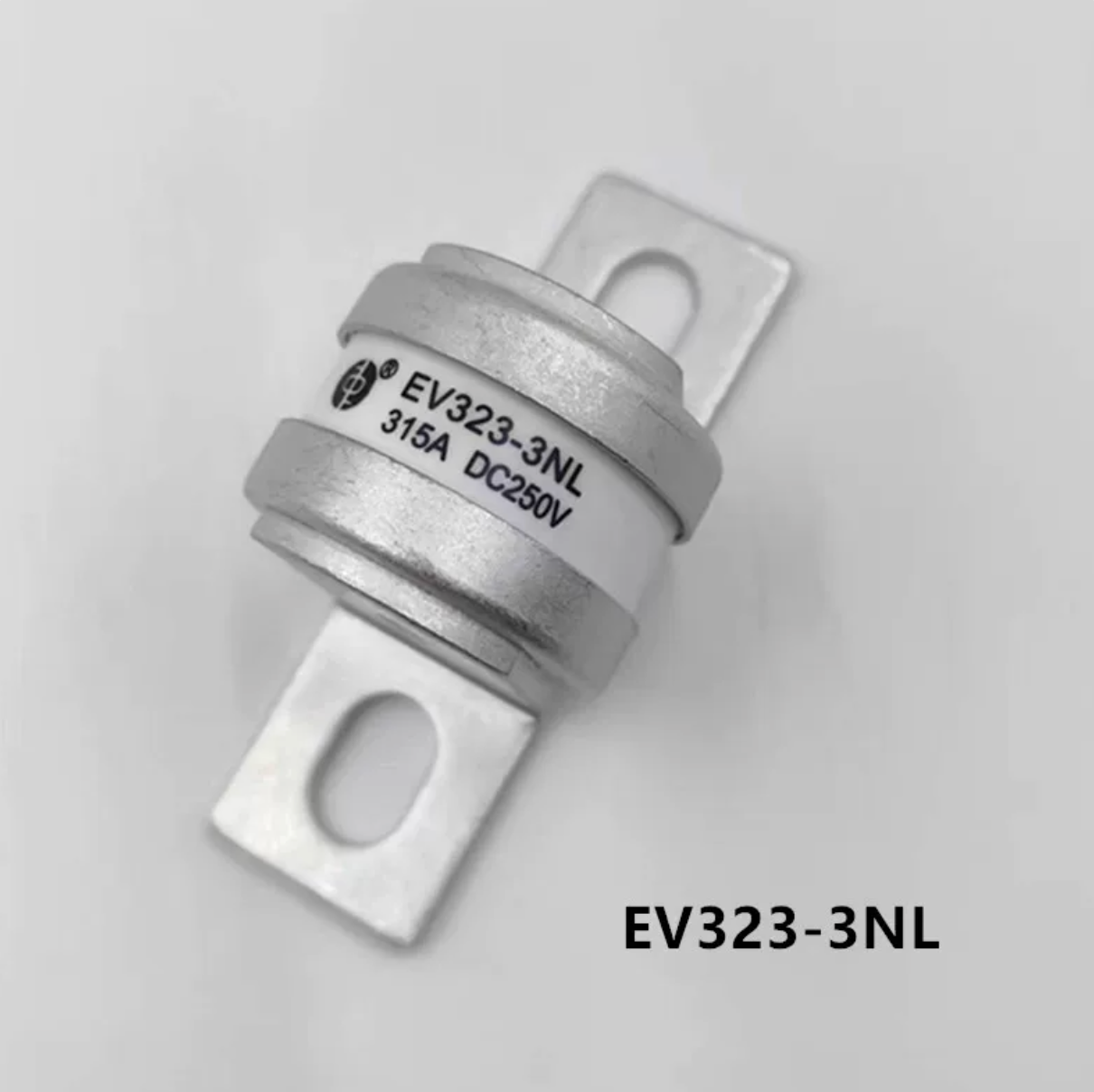

SINOFUSE EV323-3NL200A EV323 Series DC Semiconductor Fuse, 200A, 250VDC, 50kA Breaking Capacity
Regular price
$28.00 USD
Regular price
Sale price
$28.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE EV323-3NL200A is a high‑performance DC semiconductor fuse designed for electric vehicle drive systems, energy storage, and power conversion. With a rated voltage of 250VDC and a 50kA breaking capacity, it provides robust short‑circuit and overload protection in a compact 3NL form factor. Bolted M8 terminations and RoHS compliance ensure easy integration and environmental responsibility.
| Product ID (MPN) | EV323-3NL200A |
| Rated Current | 200 A |
| Rated Voltage | 250 VDC |
| Rated Breaking Capacity | 50 kA (Time Constant: L/R ≤5 ms) |
| Size Code | 3NL |
| Overall Length | 85 ±2 mm |
| Mounting Pitch | 58 ±3 mm |
| Pre-arcing I²t | 4803 A²s |
| Clearing I²t | 23450 A²s |
| Power Dissipation | 23.2 W |
| Installation | Bottom Out Bolted Structure M8, Recommended Torque: 12 N·m |
