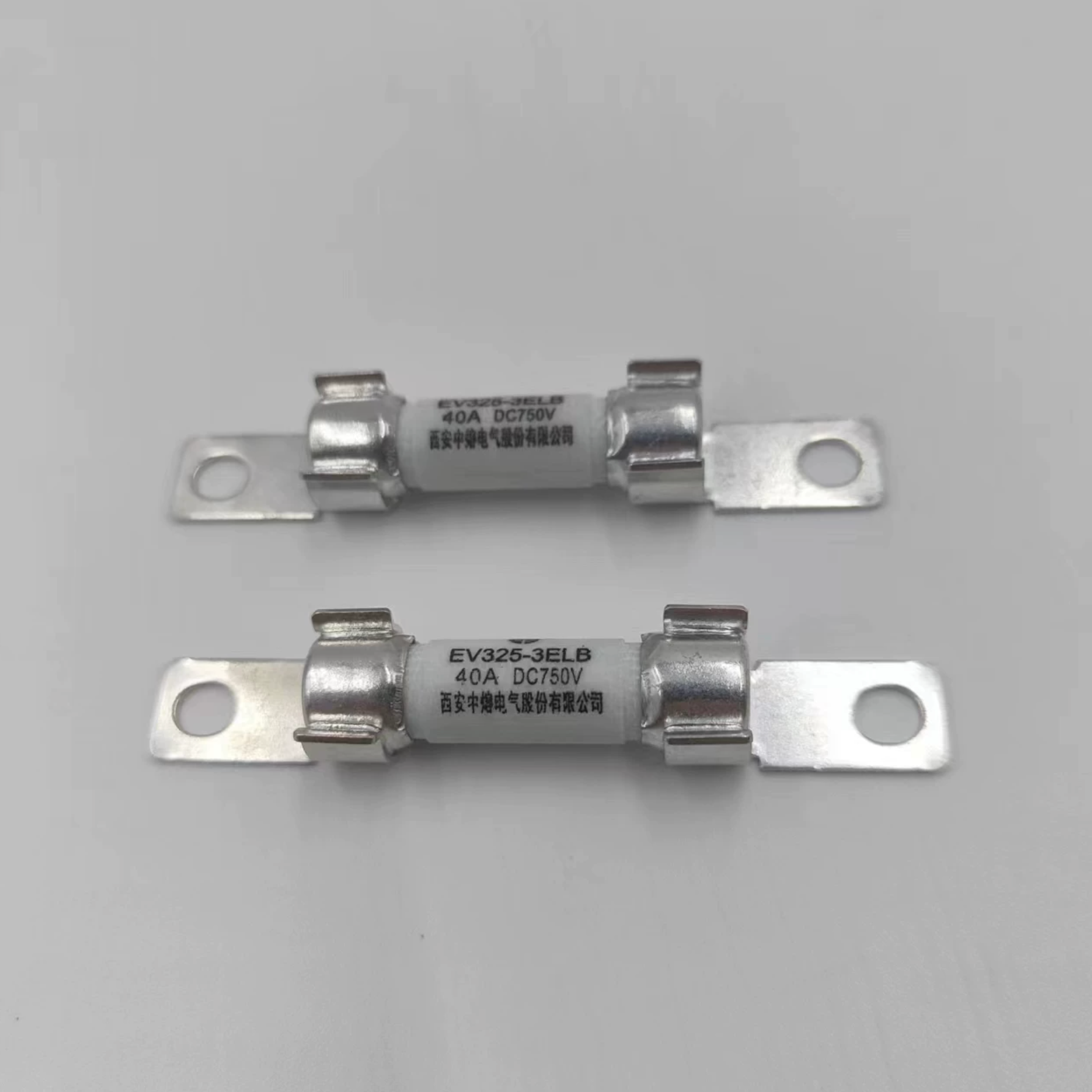

Sinofuse EV325-3ELB40A EV325 Series EV Fuse, 40A, 750V DC
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Sinofuse EV325-3ELB40A is a 750 V DC EV fuse designed for high-voltage protection in electric vehicle drive systems, power conversion equipment, and energy storage applications. The 40 A rating, 20 kA breaking capacity, and compact bottom-bolt M5 mounting make it a reliable choice for battery and inverter assemblies.
| Product ID (MPN) | EV325-3ELB40A |
| Rated Current | 40 A |
| Rated Voltage | 750 V DC |
| Breaking Capacity | 20 kA at 750 V DC (L/R=2±0.5 ms) |
| Pre-Arcing I2t | 463 A2s |
| Total Clearing I2t | 2714 A2s |
| Power Loss | 7.1 W |
| Size Code | 3ELB |
| Dimensions | 73±1 mm length, 63±1 mm hole distance |
| Mounting / Remarks | Bottom bolt mount, M5 bolt, recommended torque 4.0±0.8 N·m |
| Applications / Core Features | Road vehicles, electric vehicle drive power systems, power conversion systems, energy storage and power batteries, energy storage capacitors, frequency conversion controllers, chargers |
