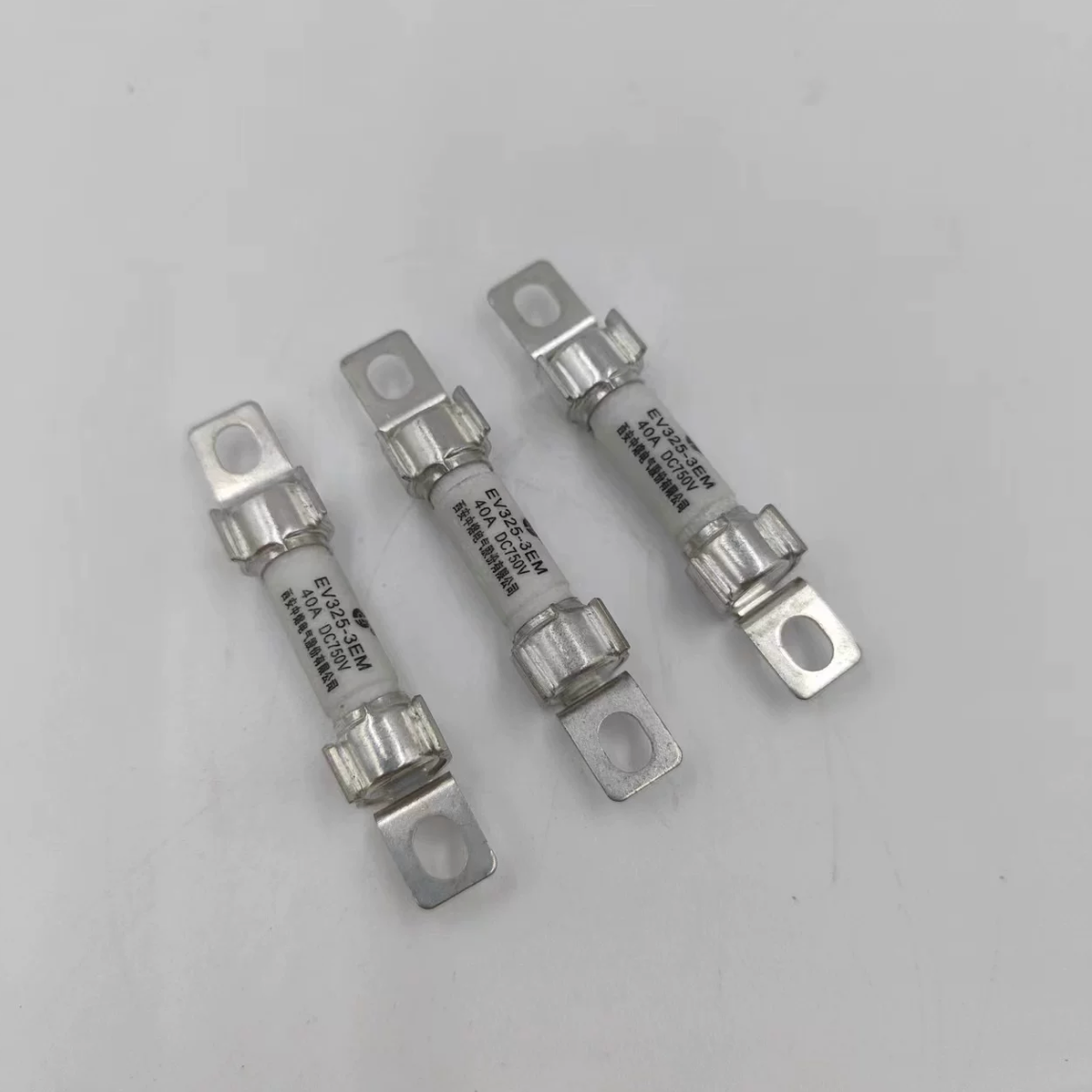

Sinofuse EV325-3EM20A EV325-3EM EV Fuse, 750V DC, 20A
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Sinofuse EV325-3EM20A is a 750V DC EV fuse designed for road vehicles, electric vehicle drive power systems, power conversion systems, and energy storage applications. It provides a 20A rating, 20kA breaking capacity, and a compact center-bolt mounting format for reliable high-voltage DC protection.
| Product ID (MPN) | EV325-3EM20A |
| Rated Voltage | 750V DC |
| Rated Current | 20A |
| Breaking Capacity | 20kA at 750V DC (L/R=2±0.5ms) |
| Pre-Arcing I²t | 68 A²s |
| Total Clearing I²t | 402 A²s |
| Power Loss | 4.6 W |
| Size Code | 3EM |
| Dimensions / Size | 65±1.5 mm length; 54.4±1.5 mm hole distance |
| Mounting / Remarks | Center bolt mount, M5 bolt, recommended torque 4.0±0.8 N·m |
| Applications/Core Features | Road vehicles; electric vehicle drive power systems; power conversion systems; energy storage and power batteries; energy storage capacitors; frequency conversion controllers; chargers |
