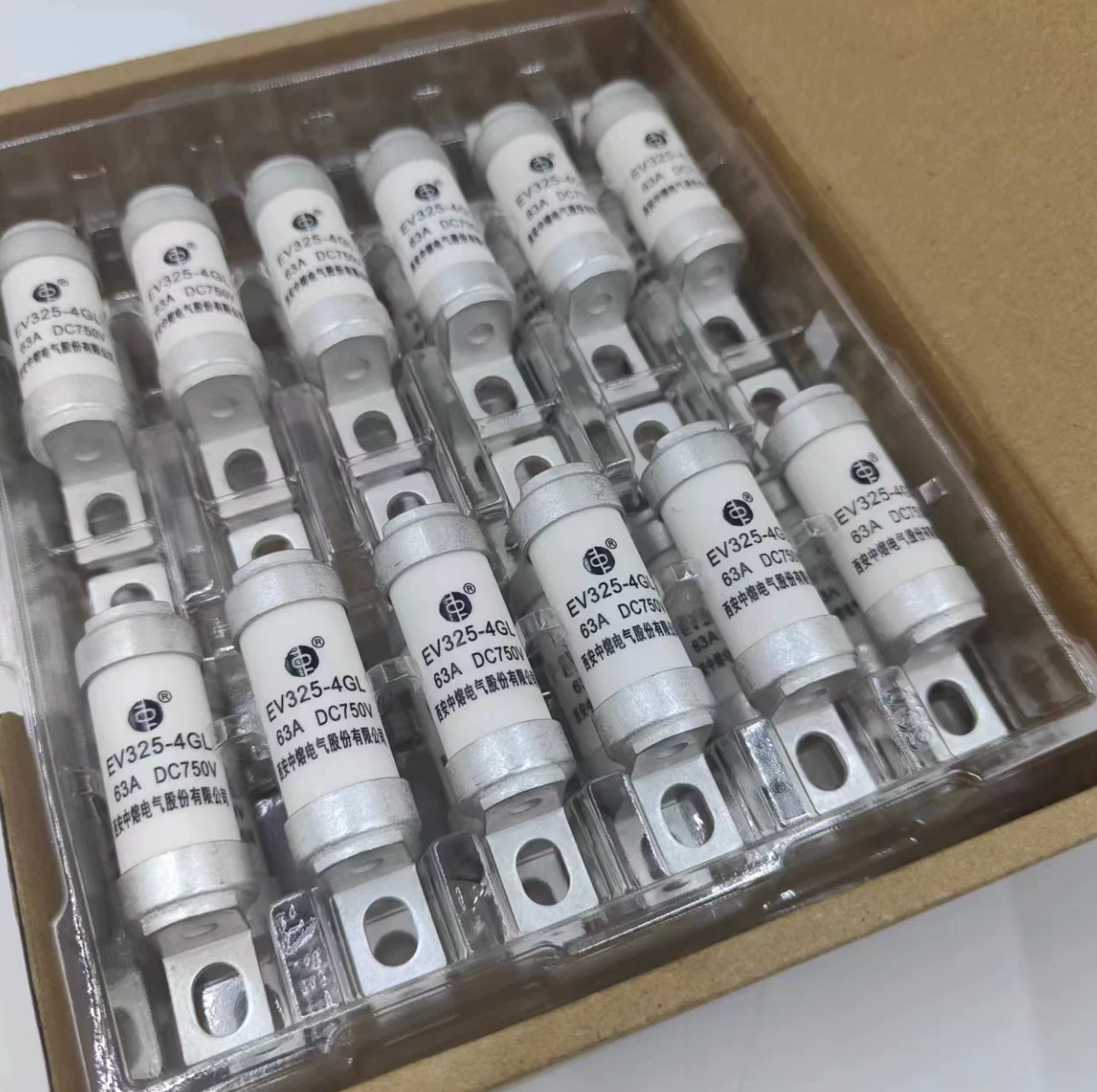

SINOFUSE EV325-4GL80A EV Fuse, DC 750V, 80A
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
SINOFUSE EV325-4GL80A is a DC road-vehicle fuse designed for EV drive systems, power conversion, energy storage, and battery/charger protection. The 4GL bolt-connection package supports high interrupting performance for demanding DC fault conditions and is suitable for secure busbar or stud mounting in traction power assemblies.
| Product ID (MPN) | EV325-4GL80A |
| Rated Voltage | DC 750 V |
| Rated Current | 80 A |
| Breaking Capacity | 50 kA @ L/R = 2 ± 0.5 ms |
| Pre-arcing I²t | 1688 A²s |
| Clearing I²t | 9216 A²s |
| Power Loss | 11.2 W |
| Size Code | 4GL |
| Dimensions / Size | 4GL: 76 ± 2 × 17.7 mm max body, bolt connection |
| Mounting Style | Bottom-exit bolt |
| Mounting Hardware | M6 |
| Recommended Torque | 6 ± 1 N·m |
| Compliance | RoHS |
