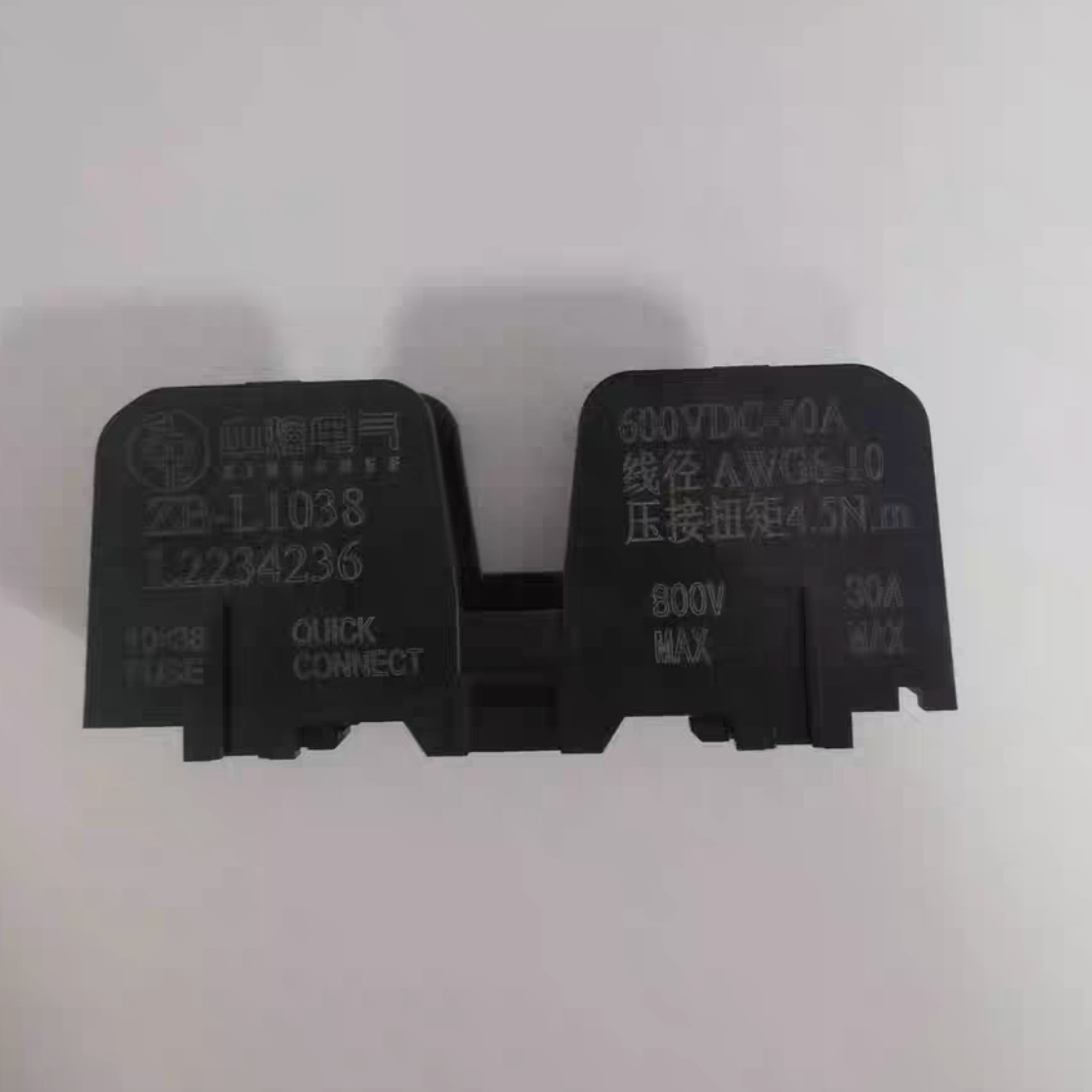

Sinofuse ZB-L1038 / 12234236 Cylindrical Fuse Holder, Fits 10x38mm Fuses, 800V 30A Max
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Sinofuse ZB-L1038 (Order Code: 12234236) is a high-performance, single-pole cylindrical fuse holder engineered for 10x38 mm midget fuse links in demanding industrial, photovoltaic (PV), and electric vehicle (EV) systems. Rated for up to 800V Max and 30A Max, this robust fuse base ensures secure electrical connection and dependable overcurrent protection. Designed with screw-clamp terminals supporting a wire range of AWG 6-10 and a specified tightening torque of 4.5 N·m, it offers superior mechanical stability and vibration resistance in tough operating environments.
| Product ID (MPN) | ZB-L1038 |
| Order Code | 12234236 |
| Compatible Fuse Size | 10 x 38 mm (Midget Fuses) |
| Rated Voltage | 600 VDC (800 VAC/VDC Max) |
| Rated Current | 30 A Max |
| Wire Size Range | AWG 6 - AWG 10 (13.3 mm² to 5.26 mm²) |
| Tightening Torque | 4.5 N·m (39.8 in-lbs) |
| Termination Method | Screw Clamp Terminal / Quick Connect |
| Number of Poles | 1-Pole |
| Application Range | Electric Vehicles (EV/HEV), Photovoltaic (PV) Combiner Boxes, Industrial Power Distribution |
