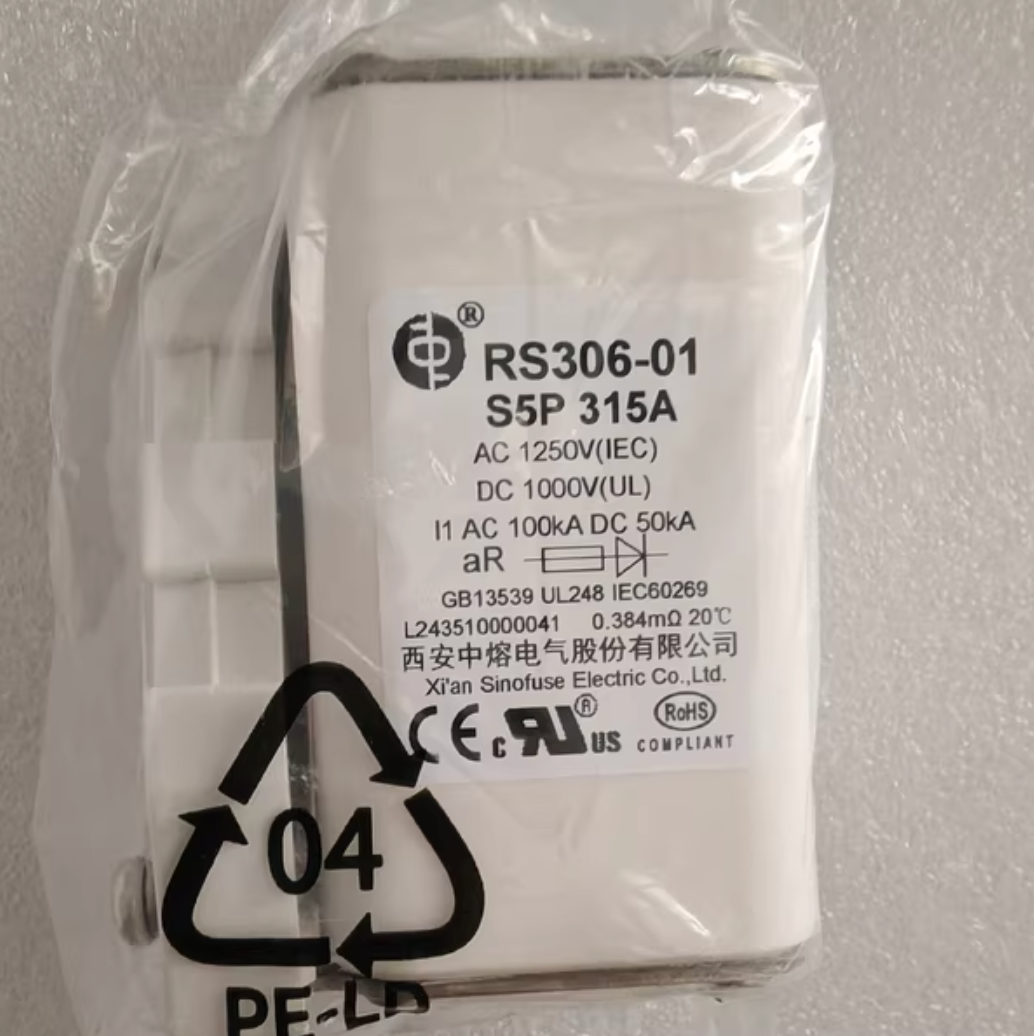

SINOFUSE RS306-01-S5P-315A1250V-D RS306 High Speed Fuse, 315A, 1250VAC/1000VDC
Regular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The SINOFUSE RS306-01-S5P-315A1250V-D is a high-speed bolt-on fuse optimized for the protection of power semiconductors, traction systems, and industrial converters. Engineered in a compact Size 01 chassis with specialized S5P termination, this fuse provides ultra-fast clearing of short-circuit faults and includes an integrated indicator base for visual status monitoring in demanding industrial power environments.
| Product ID (MPN) | RS306-01-S5P-315A1250V-D |
| Body Size | Size 01 |
| Rated Current | 315A |
| Voltage Rating | AC 1250V / DC 1000V |
| Utilization Category | aR (High Speed) |
| Interrupting Rating | AC 100kA / DC 50kA |
| Pre-arch I²t | 18600 A²s |
| Total Clearing I²t (Melt) | 150000 A²s |
| Power Loss | 58 W |
| Mounting Bolt | M8 Bolt (10N.m torque) |
| Indicator | Integrated Indicator Base (-D) |
